Purge Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

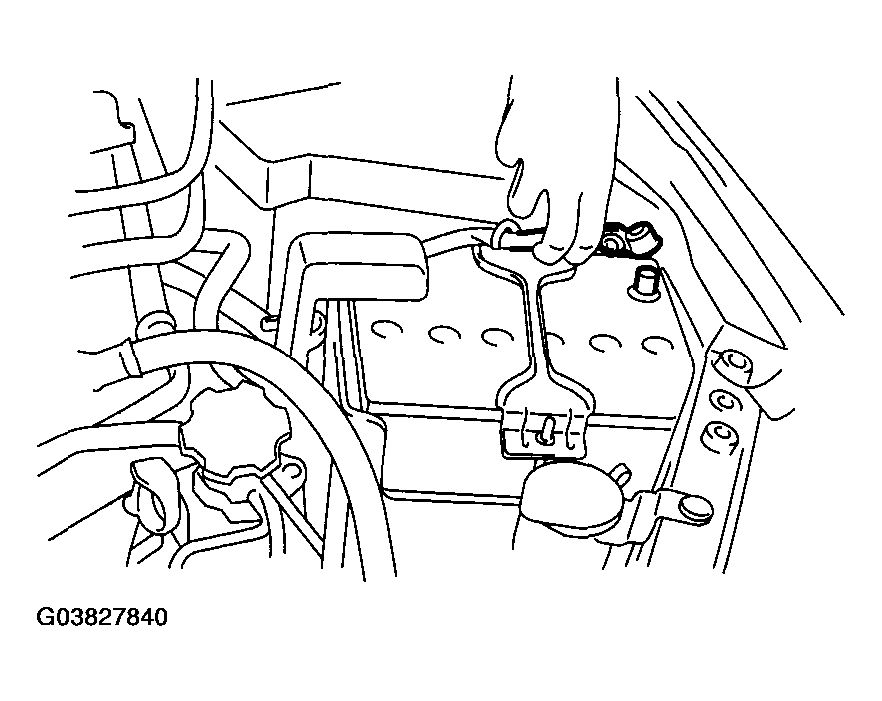

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and evaporation hose (B) from purge control solenoid valve, and then remove the purge control solenoid valve.

U5 Model

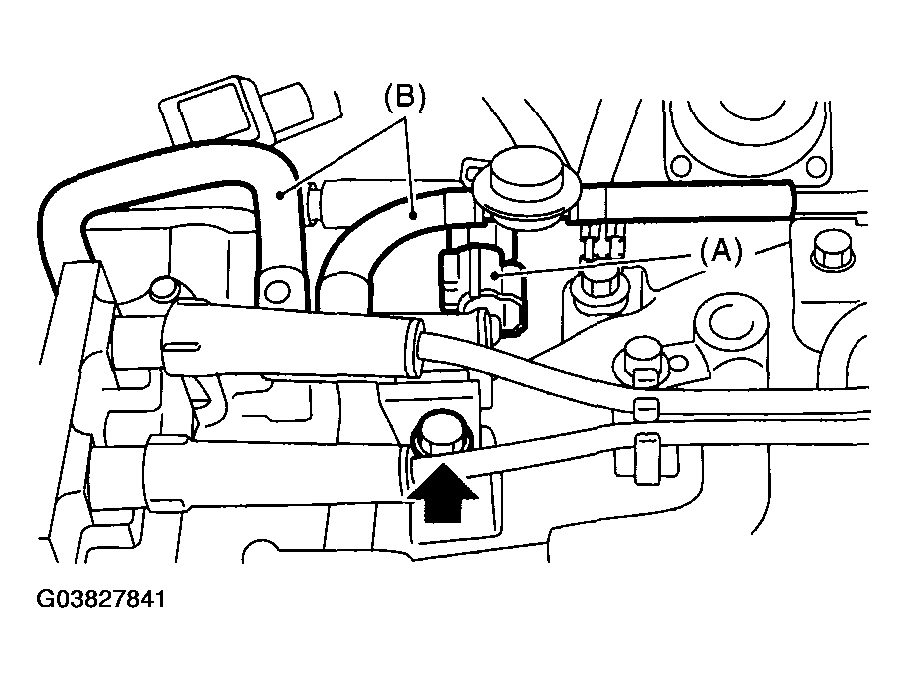

Fig 2: Disconnecting Connector And Evaporation Hose From Purge Control Solenoid Valve - U5 Model
Courtesy of SUBARU OF AMERICA, INC.
Except for U5 model

Fig 3: Disconnecting Connector And Evaporation Hose From Purge Control Solenoid Valve - Except For U5 Model
Courtesy of SUBARU OF AMERICA, INC.
