PCV Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the PCV hose.
- U5 model

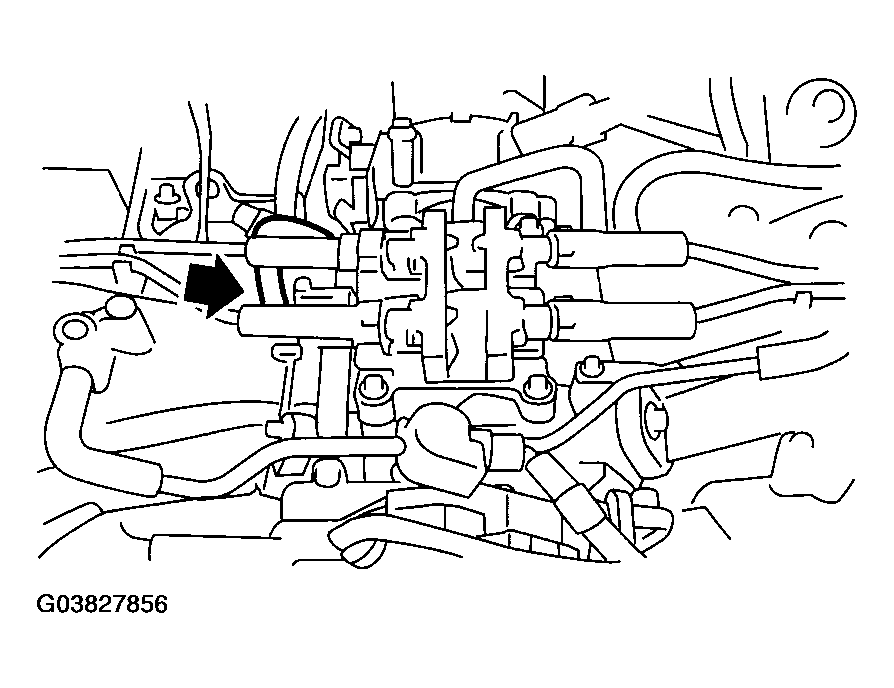

  Fig 1: Disconnecting PCV Hose - U5 model
  Courtesy of SUBARU OF AMERICA, INC.
- Except for U5 model

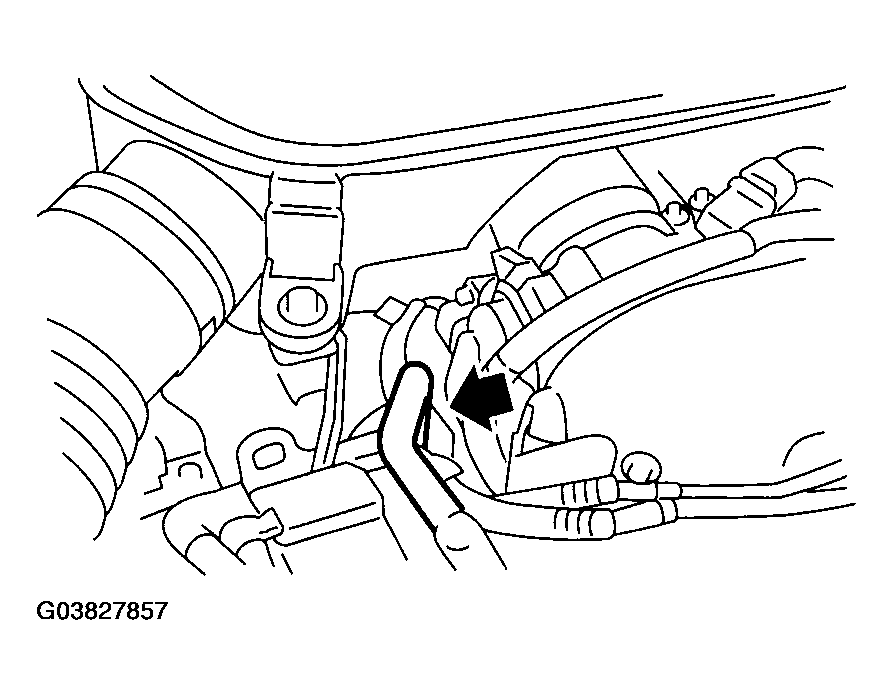

Fig 2: Disconnecting PCV Hose - Except For U5 model
Courtesy of SUBARU OF AMERICA, INC.
Remove the PCV valve from cylinder block.

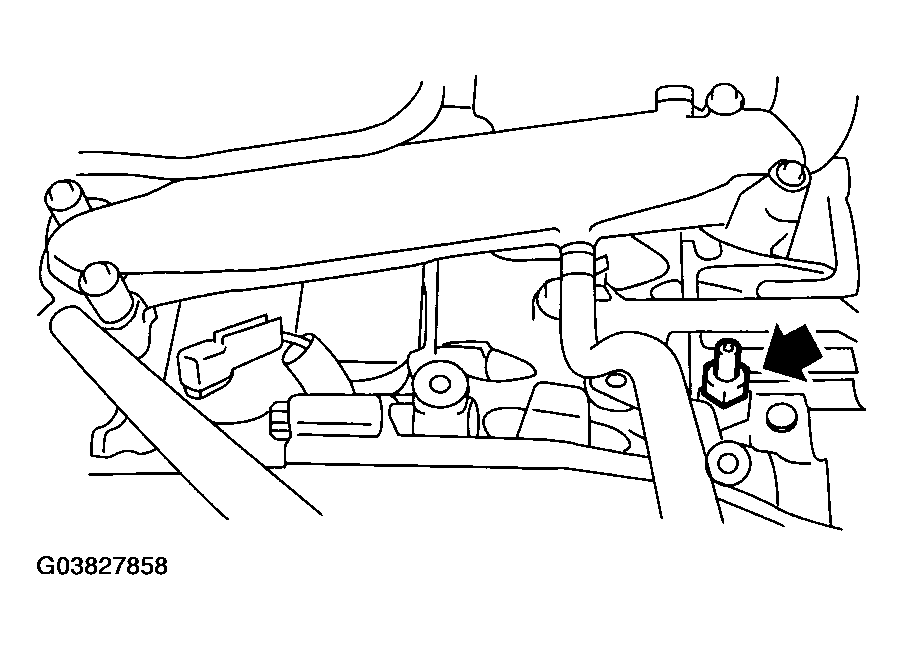

Fig 3: Removing PCV Valve From Cylinder Block

G03827858

Courtesy of SUBARU OF AMERICA, INC.
