Fuel Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Fuel temperature sensor and fuel level sensor are integrated into one unit; therefore, the removal procedure is the same as that for fuel level sensor. < Ref. to REMOVAL , Fuel Level Sensor for (H4SO model) > & < Ref. to REMOVAL , Fuel Level Sensor for (H4SO U5 model). >

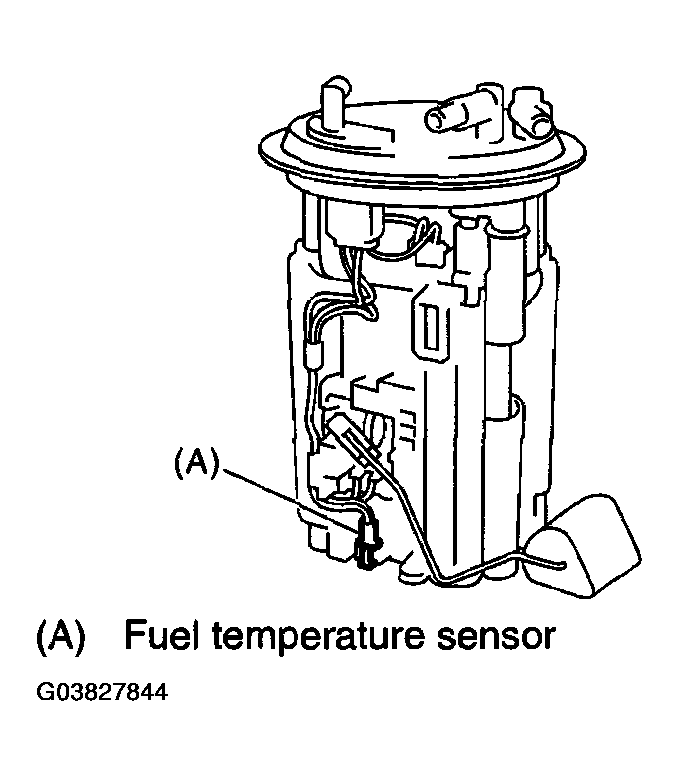

Fig 1: Identifying Fuel Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.
