Fuel Tank Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on the lift.
Open fuel filler flap lid, and remove fuel filler cap.
Disconnect the battery ground cable.

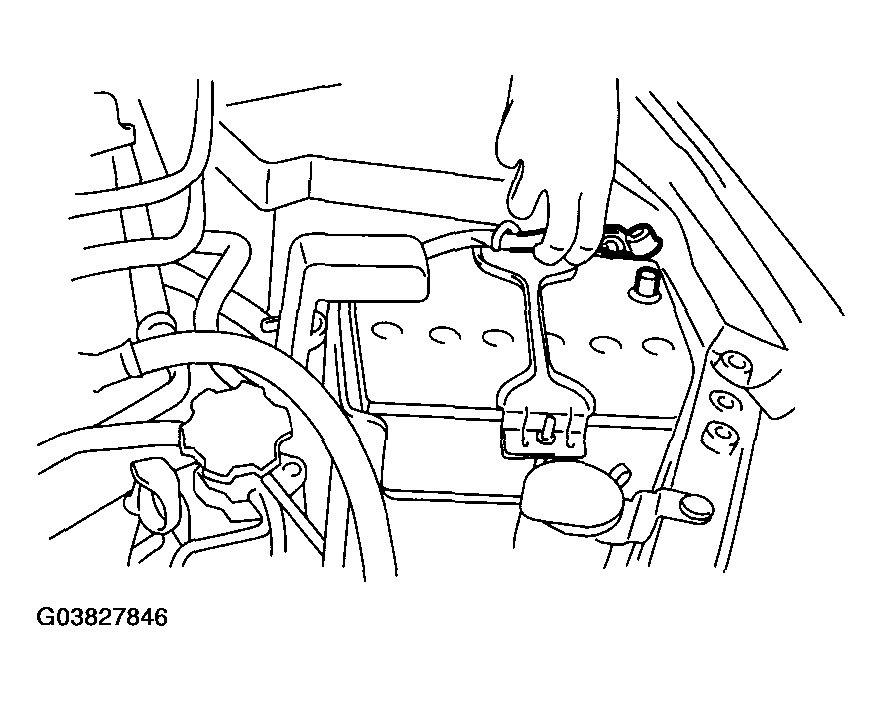

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Disconnect the connector from fuel tank pressure sensor and fuel tank sensor control valve.
Disconnect the pressure hose from fuel tank pressure sensor.
Remove fuel tank pressure sensor and fuel tank sensor control valve with bracket.

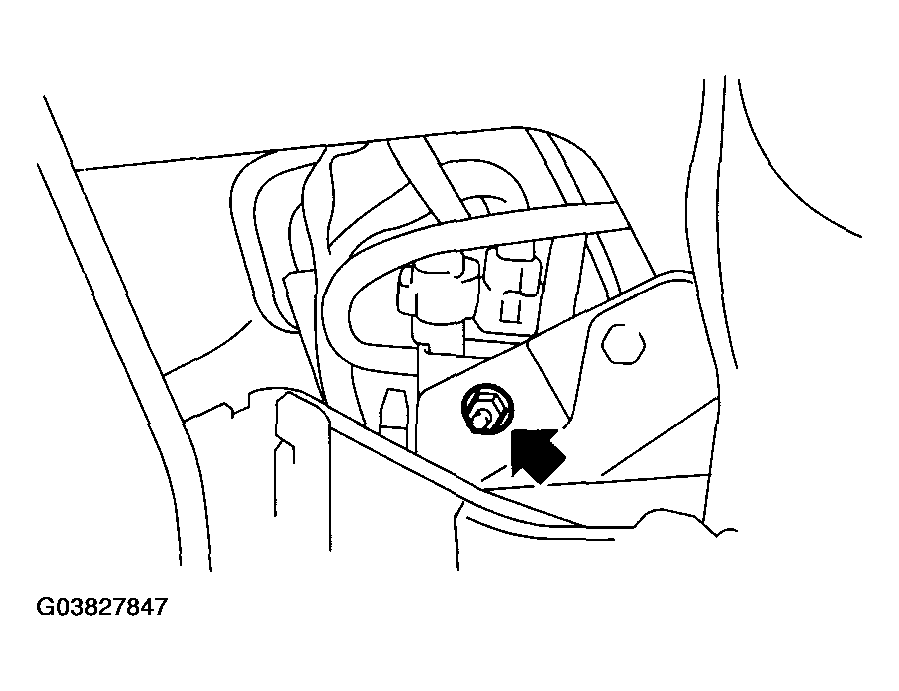

Fig 2: Removing Fuel Tank Pressure Sensor And Fuel Tank Sensor Control Valve With Bracket

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Replace the fuel tank pressure sensor and fuel tank sensor control valve as a unit.

Fig 3: Identifying Fuel Tank Pressure Sensor And Fuel Tank Sensor Control Valve As Unit

Courtesy of SUBARU OF AMERICA, INC.
