Section 2 (Emission Control (Aux. Emission Control Devices) (H4SO)): Canister: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

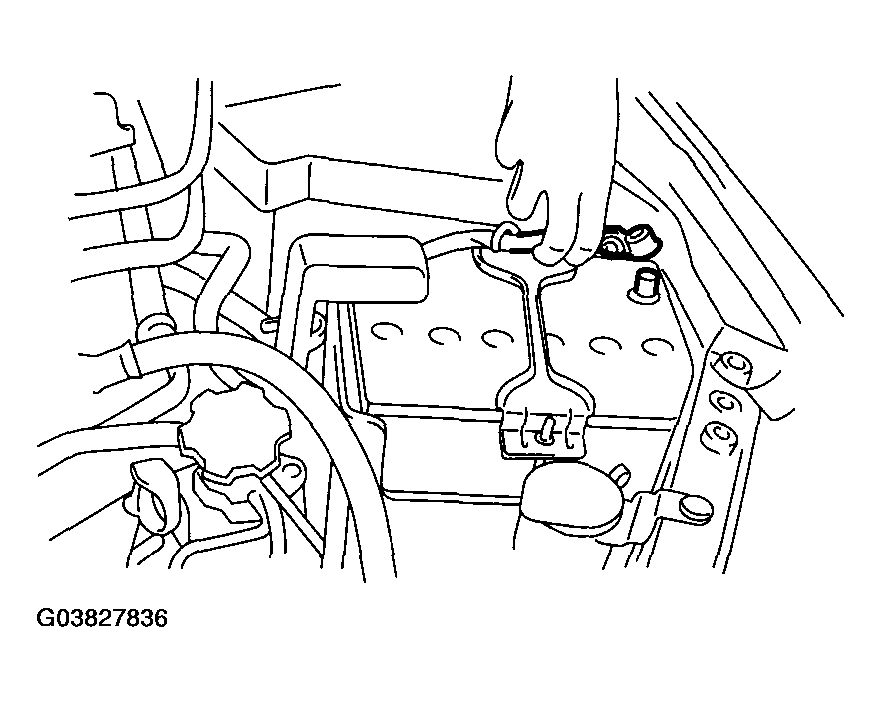

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear wheel LH.
Remove the mud guard LH.
Disconnect the quick connector (A).
Disconnect the drain valve connector (B).
Remove the clip (C).

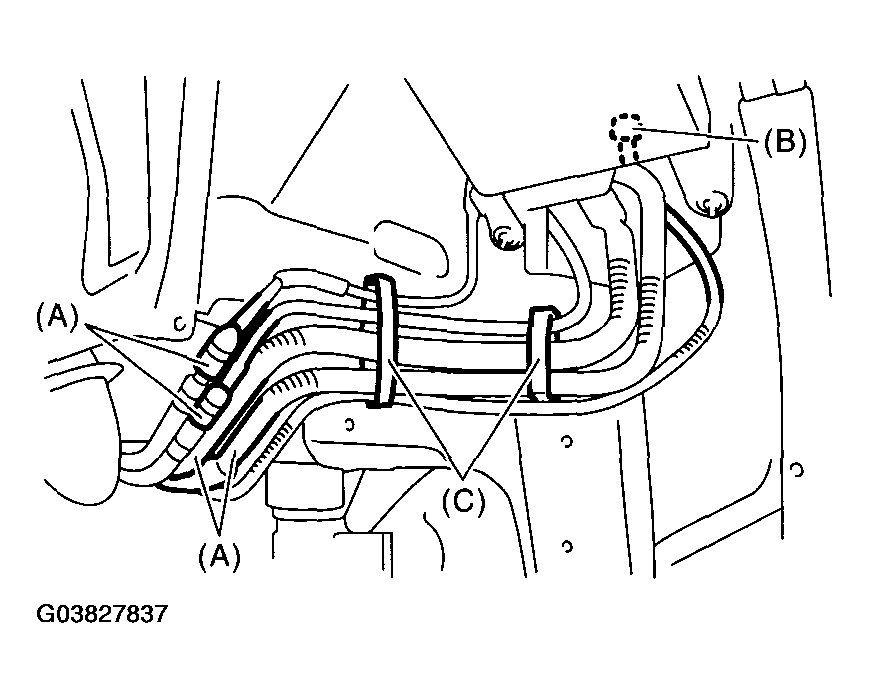

Fig 2: Disconnecting Drain Valve Connector
Courtesy of SUBARU OF AMERICA, INC.

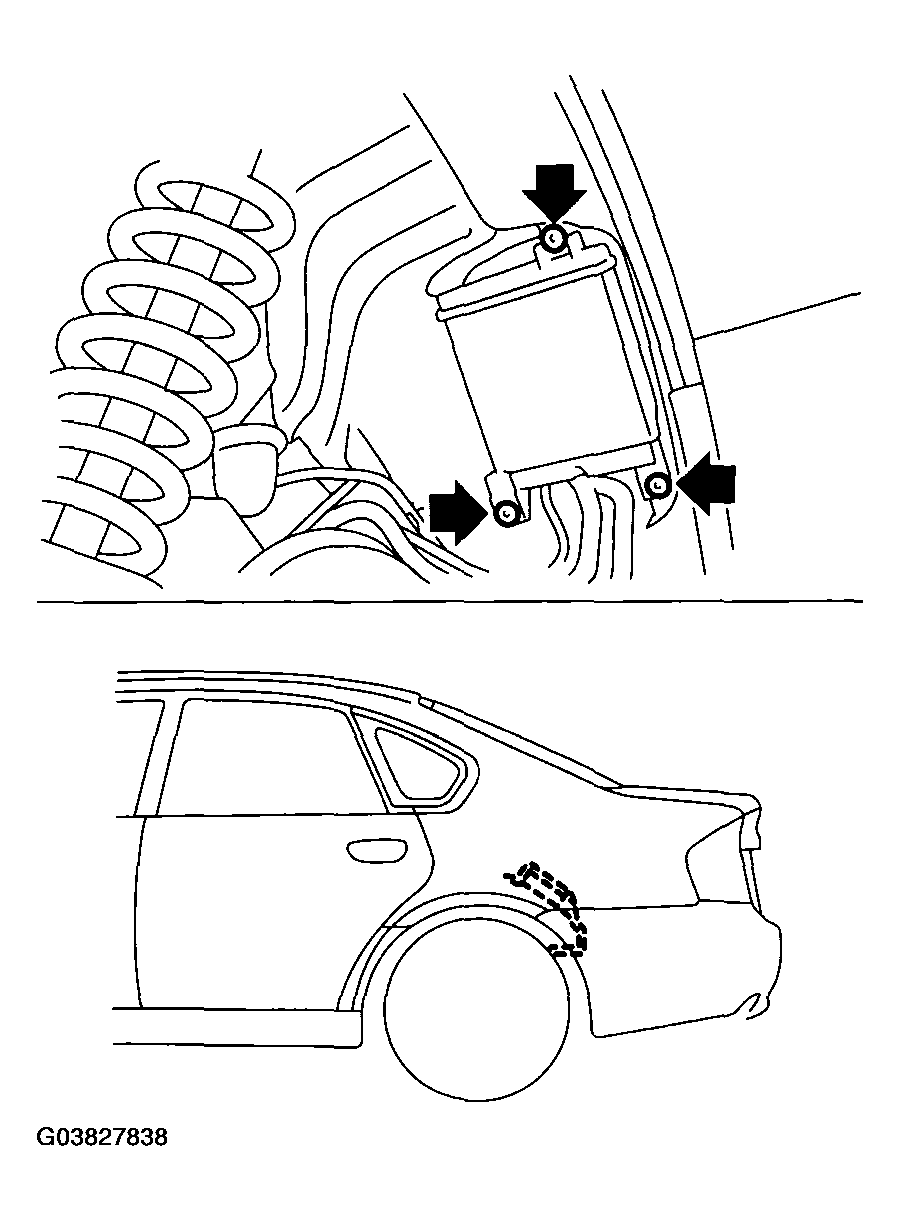

Remove the canister (B) from body.

Fig 3: Removing Canister From Body
Courtesy of SUBARU OF AMERICA, INC.
