Section 2 (Emission Control (Aux. Emission Control Devices) (H4SO)): Canister: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
NOTE:
Make sure there are no damage or dust on the connection of quick connector. If necessary, clean the seal surface of pipe.

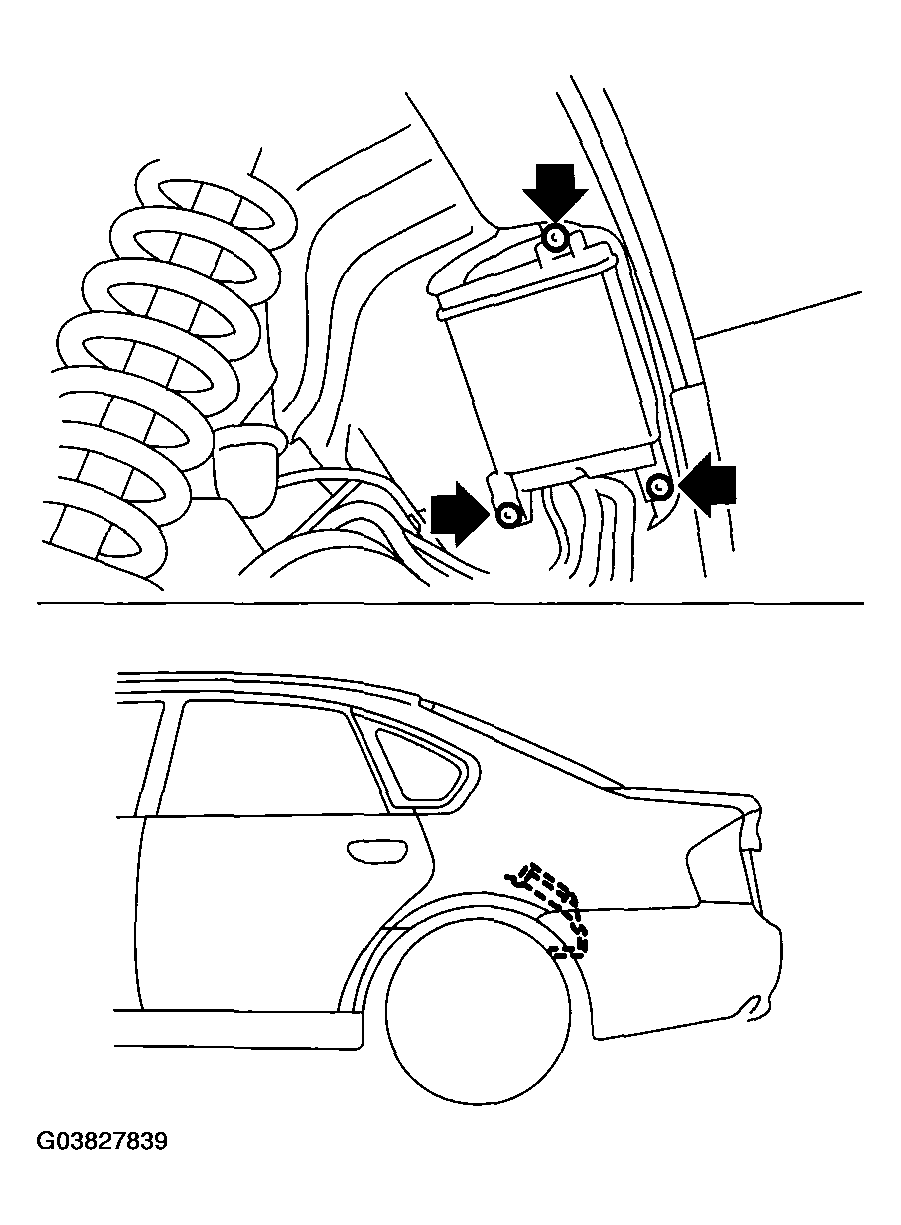

Tightening torque: 8 N.m (0.8 kgf-m, 5.9 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
