Radiator Sub Fan and Fan Motor: Assembly
WARNING: This page is about a different variant/trim than selected.
Assemble in the reverse order of disassembly.

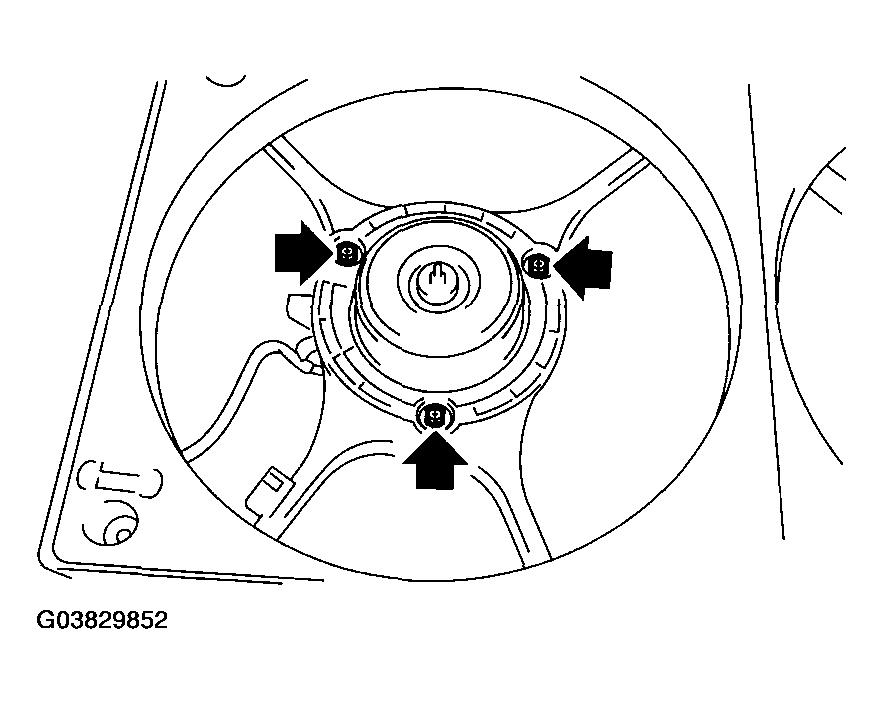

Tightening torque:
5 N.m (0.5 kgf-m, 3.6 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.

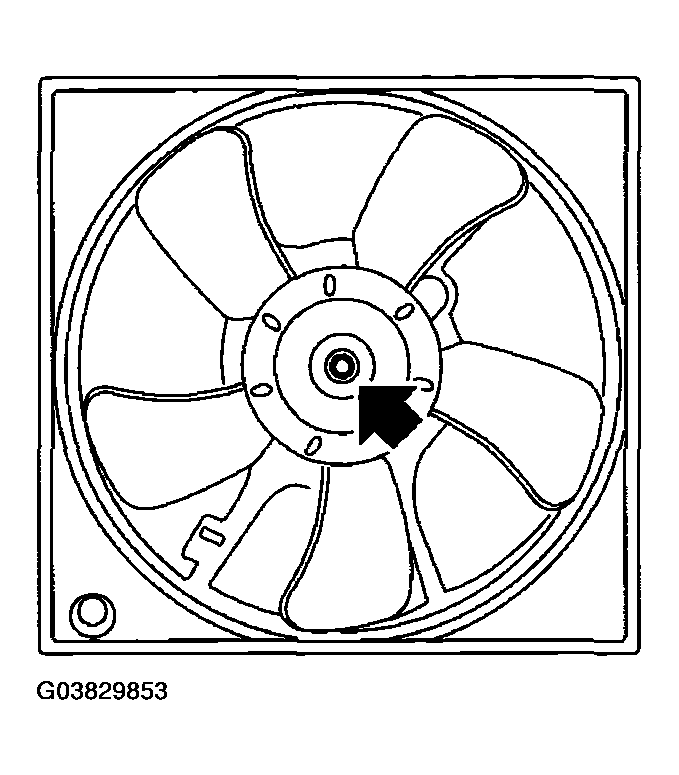

Tightening torque:
3.4 N.m (0.35 kgf-m, 2.5 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
