Radiator Main Fan and Fan Motor: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the radiator main fan motor assembly to vehicle.
  2. Connect the radiator inlet hose (A) to radiator.
  3. Install the hood stay holder (B).

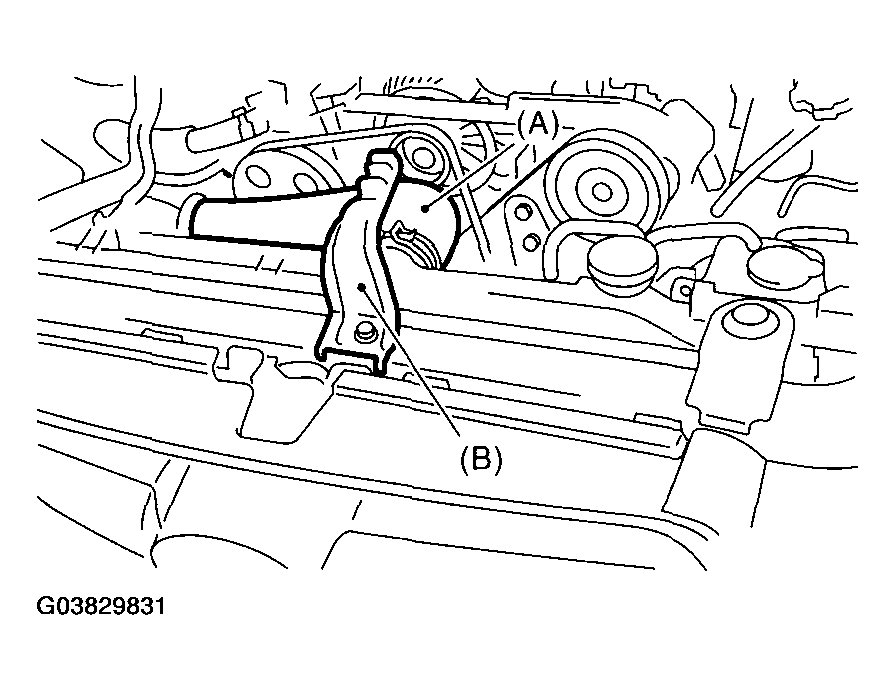

    Fig 1: Installing Radiator Inlet Hose And Hood Stay Holder
    G03829831Courtesy of SUBARU OF AMERICA, INC.
  4. Install the mounting bolts of radiator main fan motor assembly.

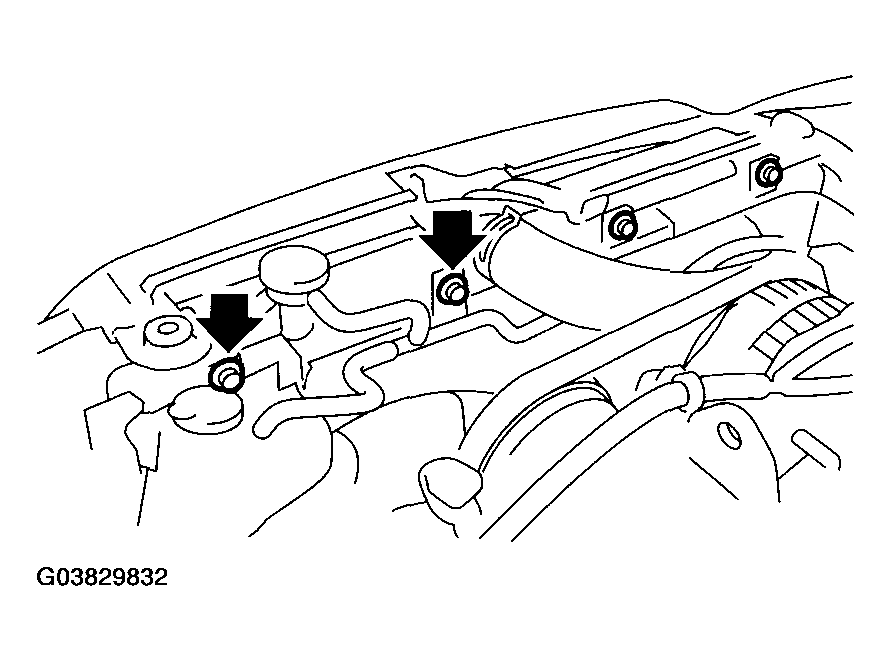

    Fig 2: Installing Mounting Bolts Of Radiator Main Fan Motor
    G03829832Courtesy of SUBARU OF AMERICA, INC.
  5. Install the reservoir tank. < Ref. to , INSTALLATION , Reservoir Tank. >
  6. Install the over flow pipe.
  7. Connect the over flow hose.
  8. Install the air intake duct.
  9. Lift-up the vehicle.
  10. Attach the ATF hose to the clip of radiator main fan motor assembly. (AT model)
  11. Install the heat shield cover to radiator. (AT model)

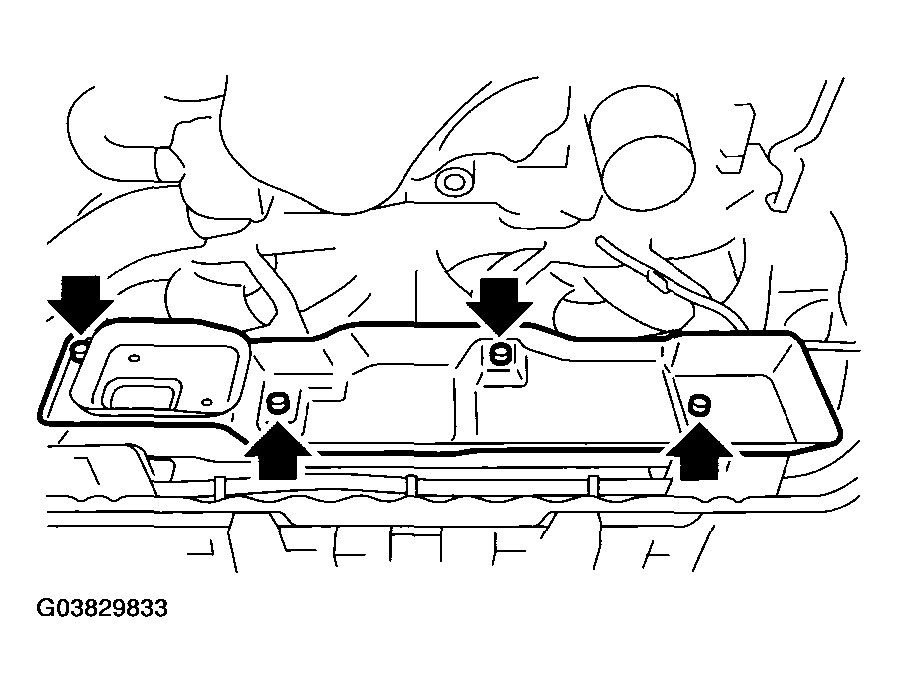

    Fig 3: Installing Heat Shield Cover To Radiator (AT Model)
    G03829833Courtesy of SUBARU OF AMERICA, INC.
  12. Connect the main fan motor connector (A).

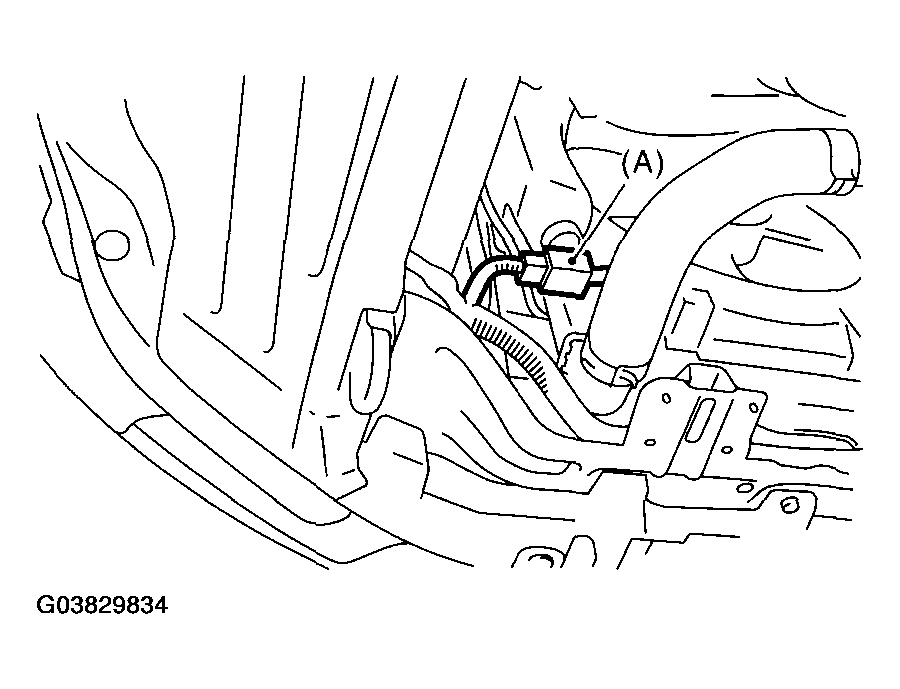

    Fig 4: Connecting Main Fan Motor Connector
    G03829834Courtesy of SUBARU OF AMERICA, INC.
  13. Install the under cover.
  14. Lower the vehicle.
  15. Connect the battery ground cable to battery.

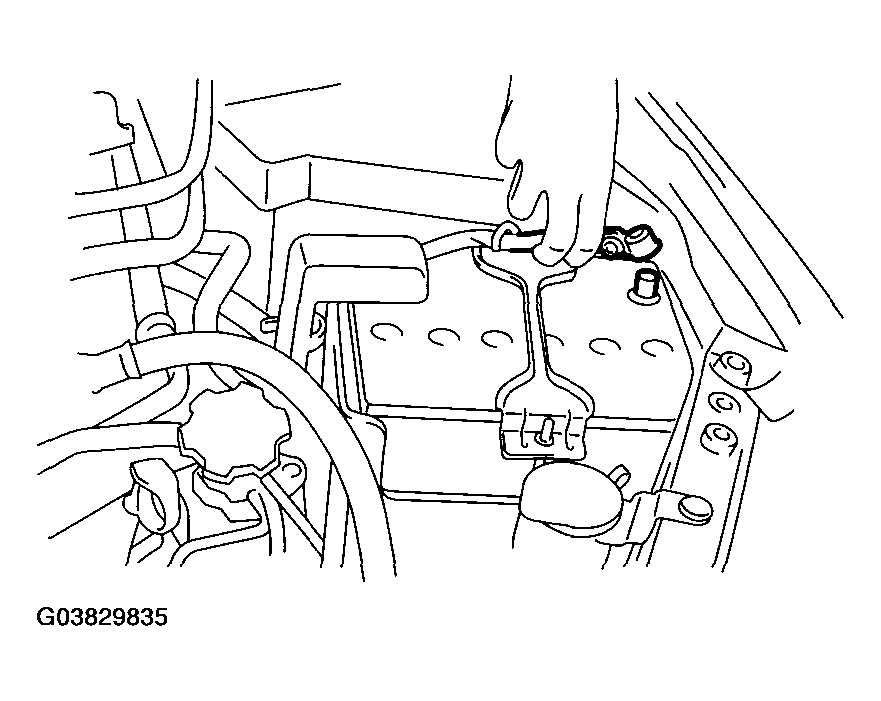

    Fig 5: Connecting Battery Ground Cable To Battery
    G03829835Courtesy of SUBARU OF AMERICA, INC.
  16. Fill engine coolant.< Ref. to , FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  17. Install the collector cover.
