Radiator Main Fan and Fan Motor: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the clip which holds fan motor connector onto shroud.
Remove the nut which holds fan itself onto fan motor and shroud assembly.

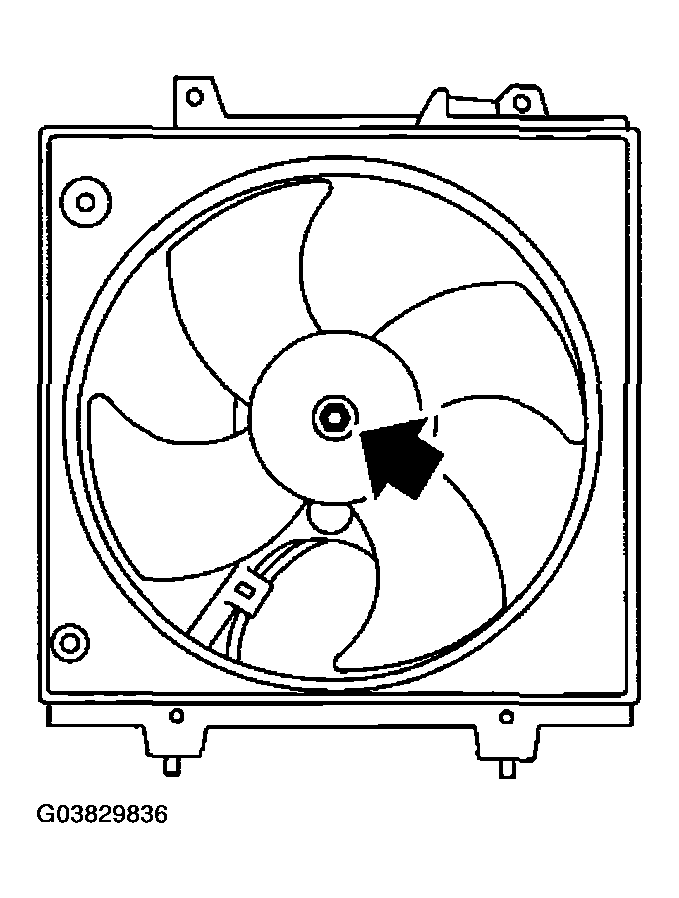

Fig 1: Removing Fan Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fan motor onto shroud.

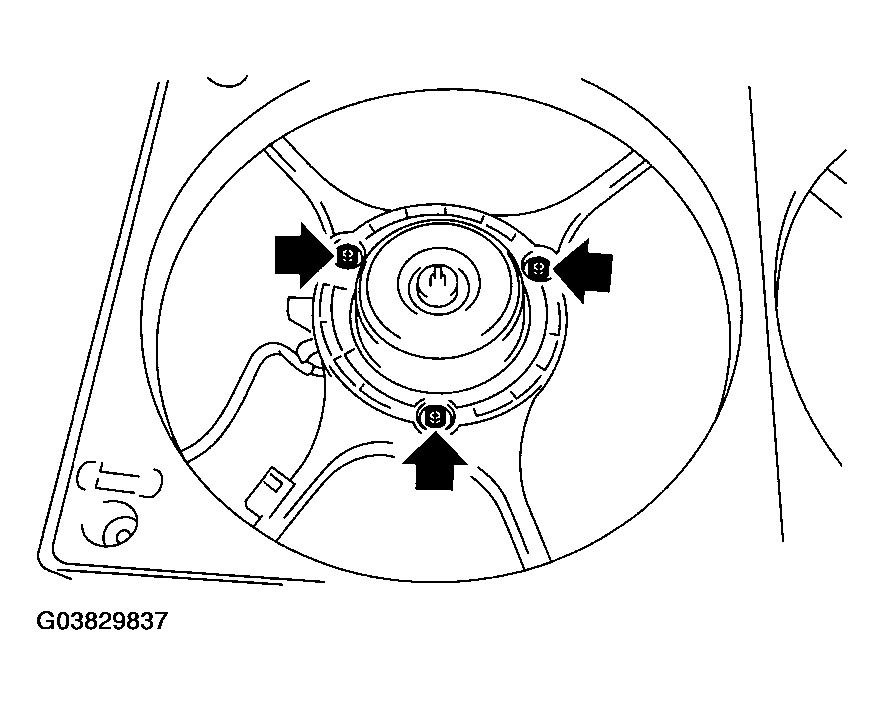

Fig 2: Removing Bolts Holding Fan Motor Onto Shroud
Courtesy of SUBARU OF AMERICA, INC.
