Radiator Main Fan and Fan Motor: Assembly

Assemble in the reverse order of disassembly.

Tightening torque:

5 N.m (0.5 kgf-m, 3.6 ft-lb)

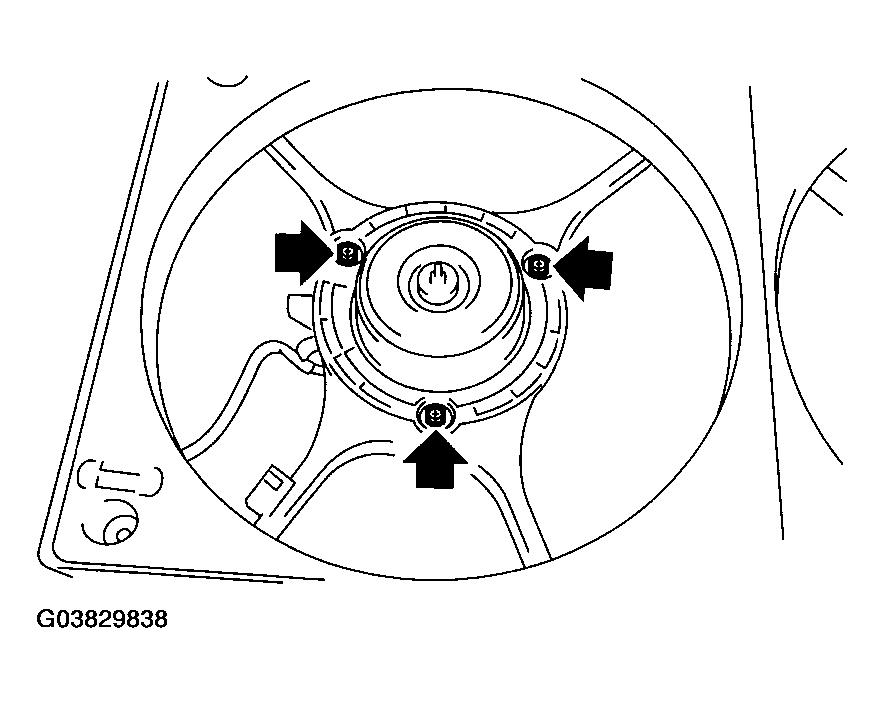

Fig 1: Installing Bolts Holding Fan Motor Onto Shroud

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3.4 N.m (0.35 kgf-m, 2.5 ft-lb)

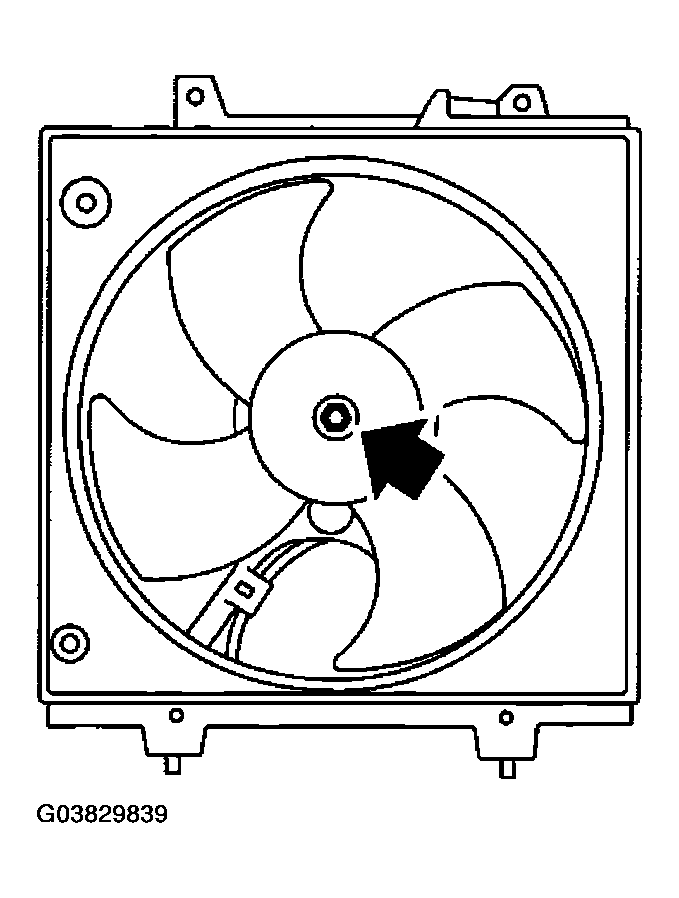

Fig 2: Installing Fan Motor And Shroud Holding Nut

Courtesy of SUBARU OF AMERICA, INC.
