Radiator Fan System
>>
Wiring Diagram
Radiator Fan System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

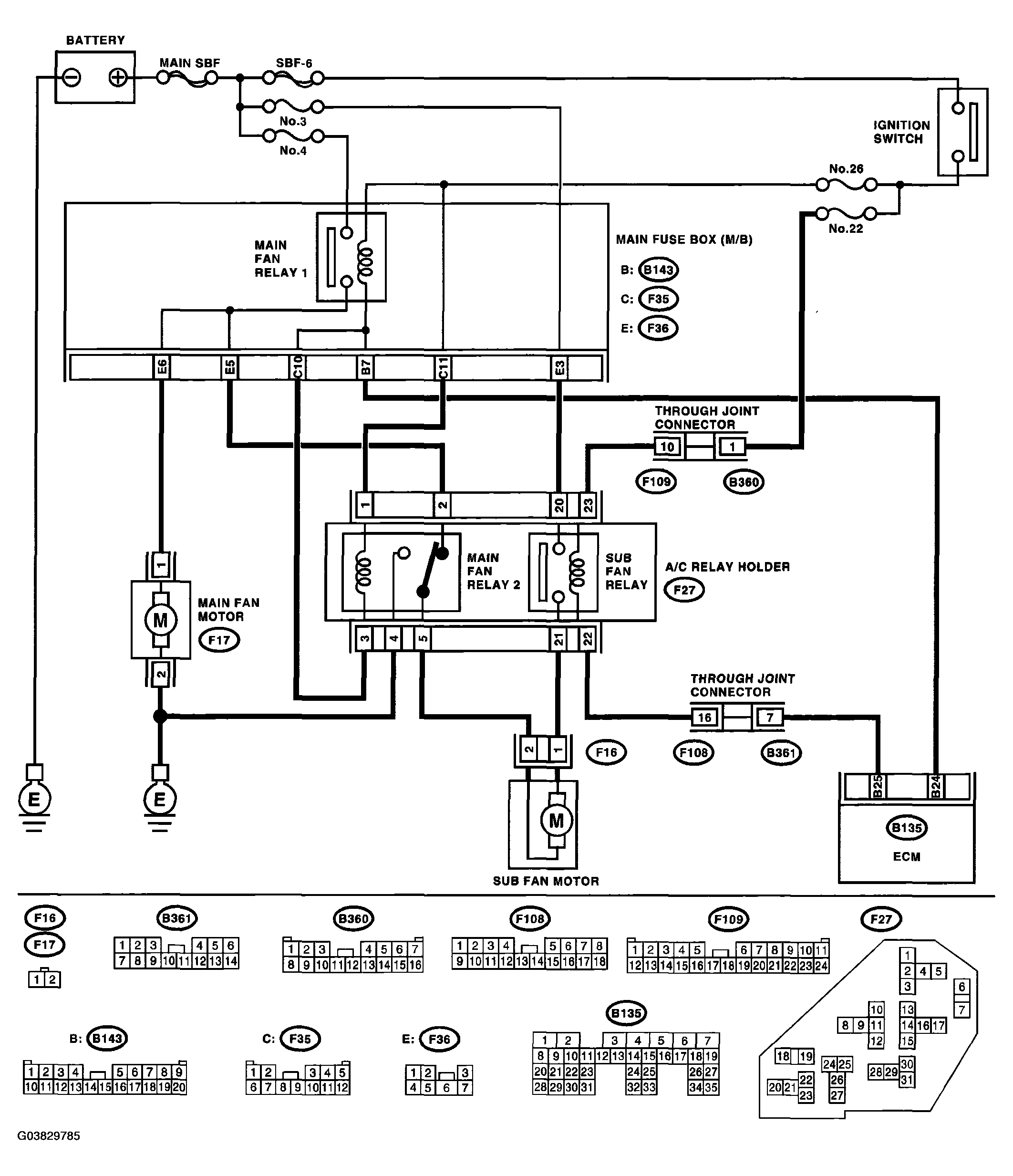

Fig 1: Radiator Fan System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
