Section 19 (Cooling System (H4DOTC))
>>
General Description
>>
Components With Torque Specifications
>>
Water Pump
Water Pump
WARNING:
This page is about a different variant/trim than selected.

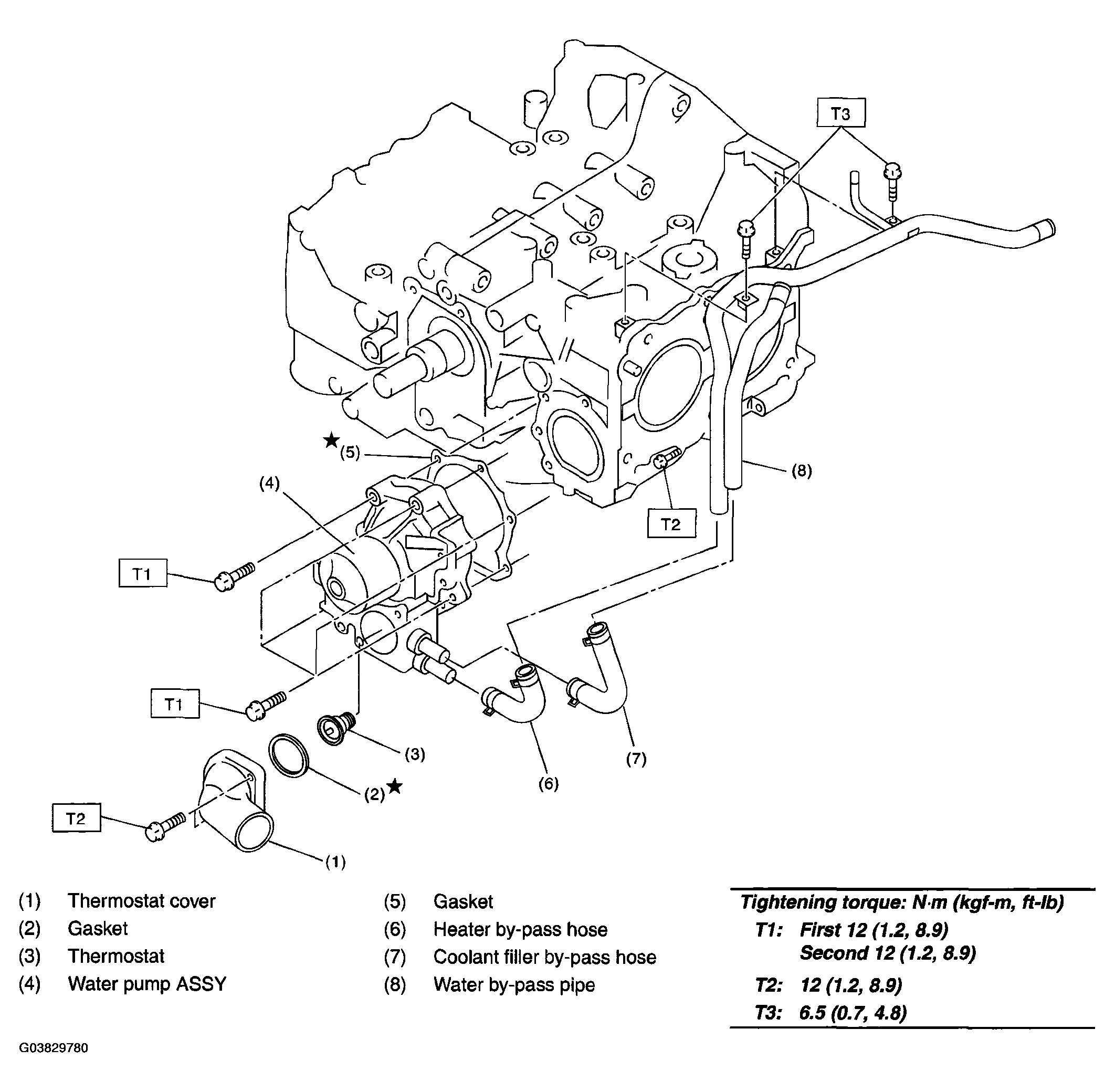

Fig 1: Exploded View Of Water Pump With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
