Coolant Filler Tank: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

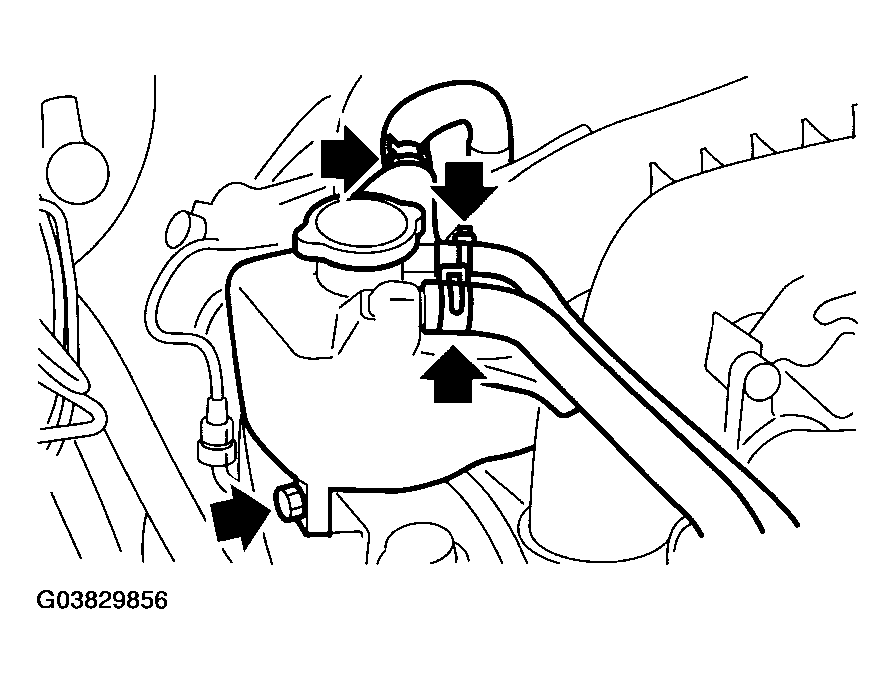

Fig 1: Installing Coolant Filler Tank
Courtesy of SUBARU OF AMERICA, INC.
Fill with engine coolant. < Ref. to , FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
