Center And Rear Exhaust Pipe, And Muffler

WARNING: This page is about a different variant/trim than selected.

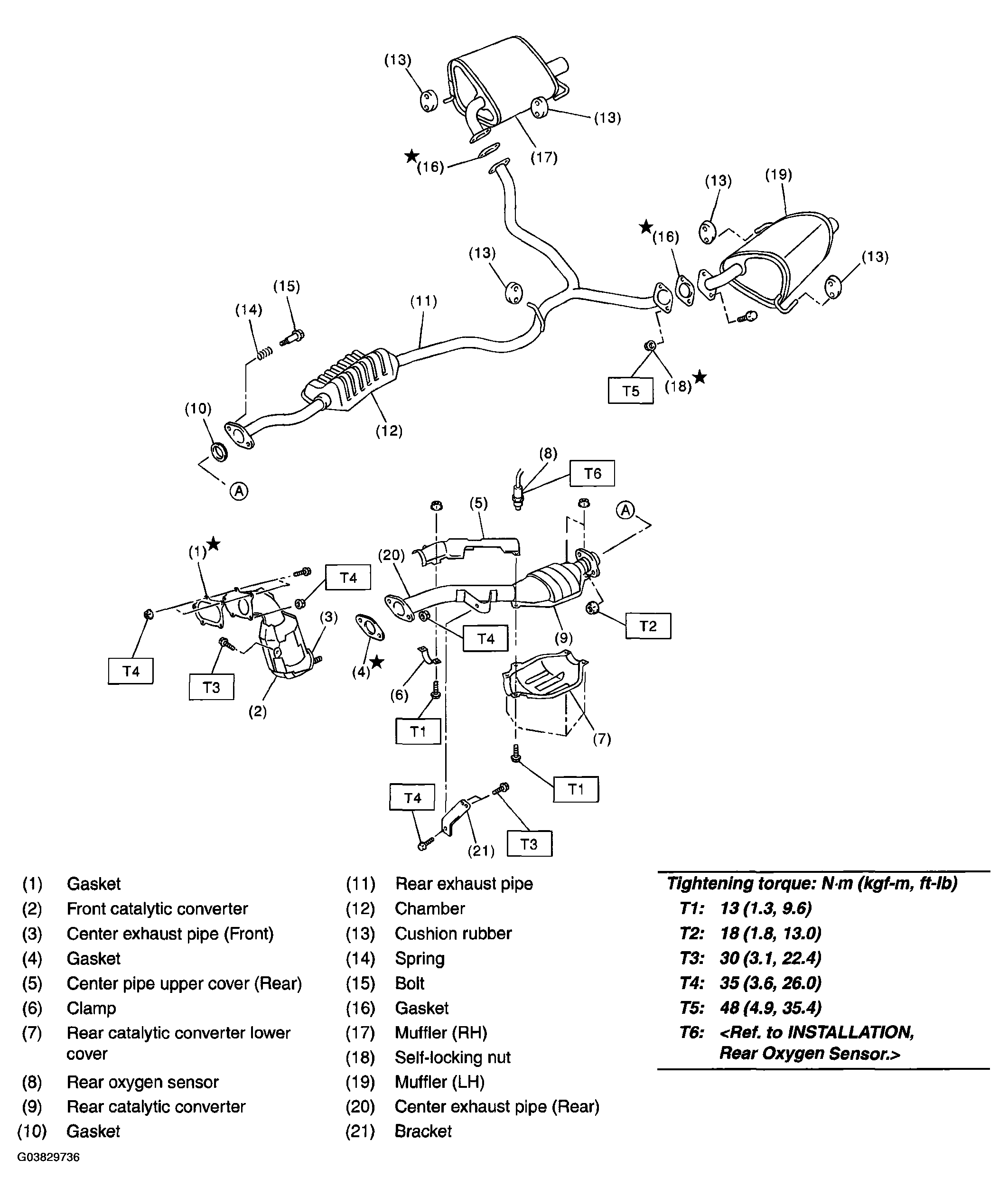

Fig 1: Exploded View Of Center And Rear Exhaust Pipe, And Muffler With Torque Specifications
G03829736Courtesy of SUBARU OF AMERICA, INC.
