Front Side Belt

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Remove the V-belt covers.

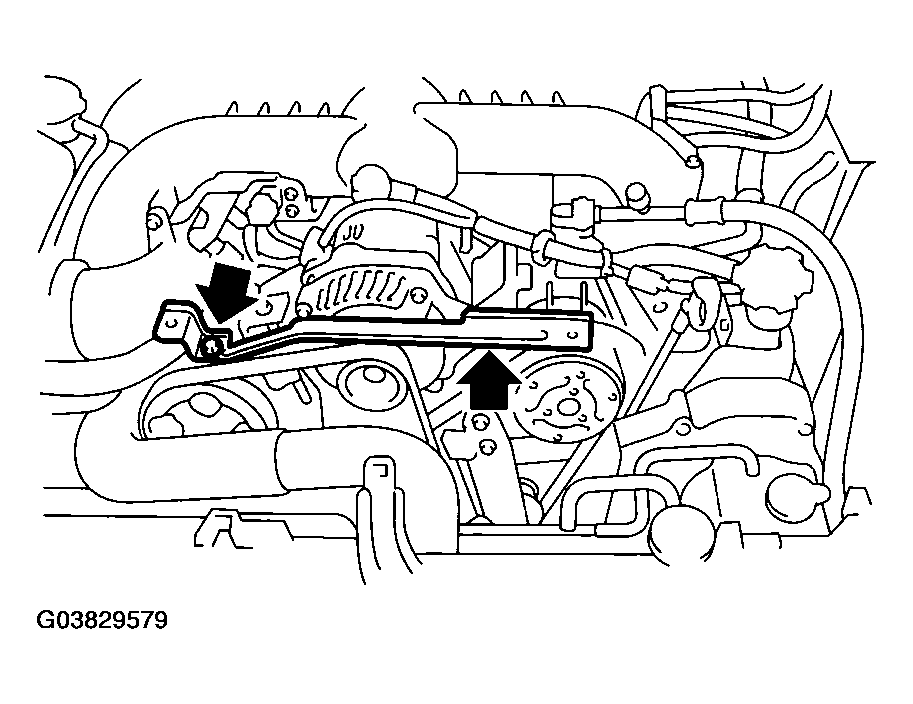

    Fig 1: Removing V-Belt Covers
    G03829579Courtesy of SUBARU OF AMERICA, INC.
  3. Loosen the lock bolt (A).
  4. Loosen the slider bolt (B).
  5. Remove the front side belt (C).

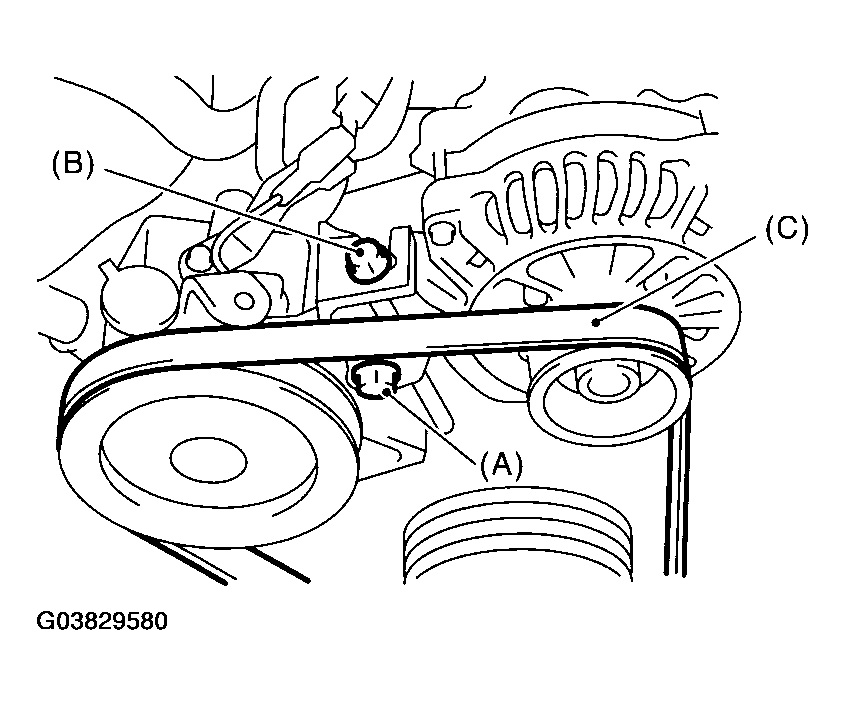

    Fig 2: Removing Front Side Belt
    G03829580Courtesy of SUBARU OF AMERICA, INC.
