Rear Side Belt
WARNING: This page is about a different variant/trim than selected.
- Remove the A/C belt tensioner.

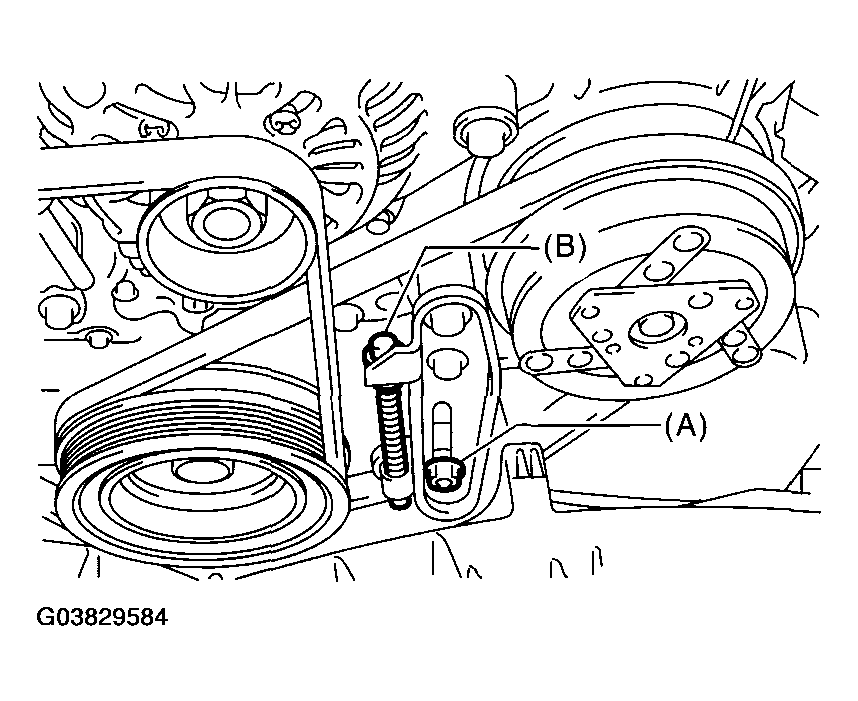

- Install a V-belt, and tighten the slider bolt (B) so as to obtain the specified belt tension.
< Ref. to , INSPECTION , V-belt. >
- Tighten the lock nut (A).
Tightening torque:
Lock nut (A):
22.6 N.m (2.3 kgf-m, 16.6 ft-lb)
