Belt Idler And Automatic Belt Tension Adjuster Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the belt idler (B) and (C).

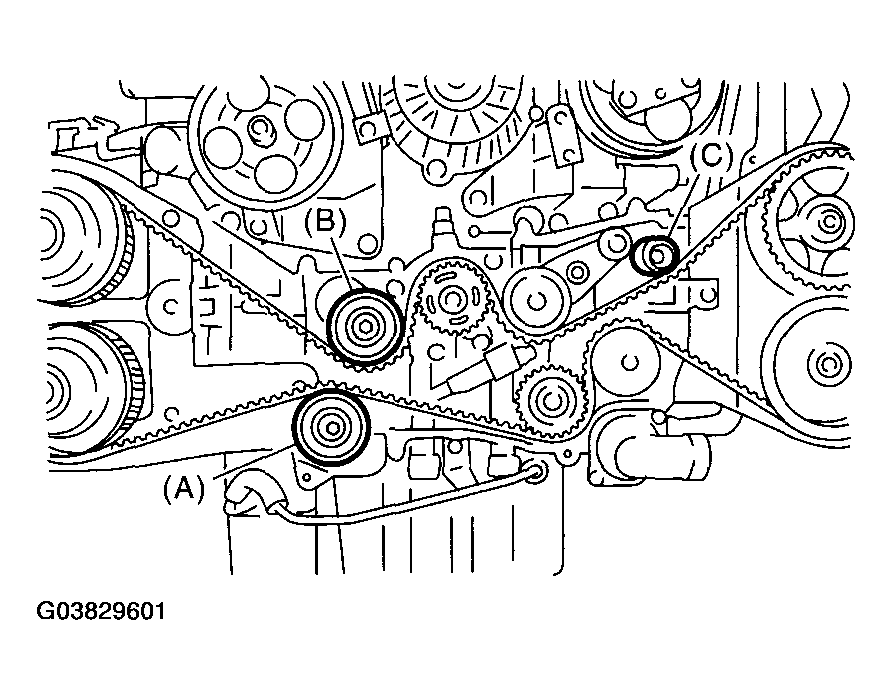

    Fig 1: Removing Belt Idler
    G03829601Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the belt idler No. 2.

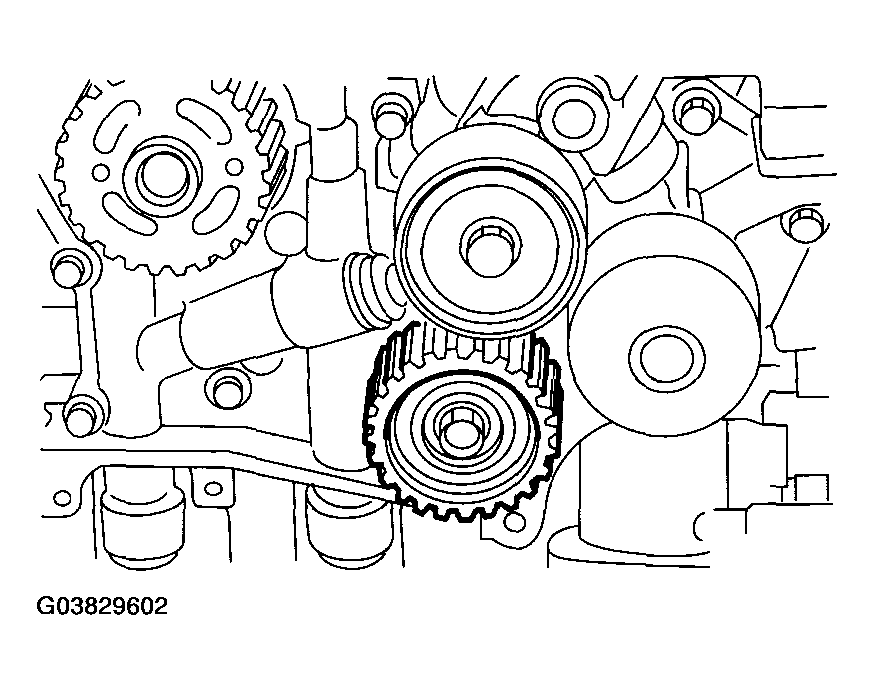

    Fig 2: Removing Belt Idler No. 2
    G03829602Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the automatic belt tension adjuster assembly.

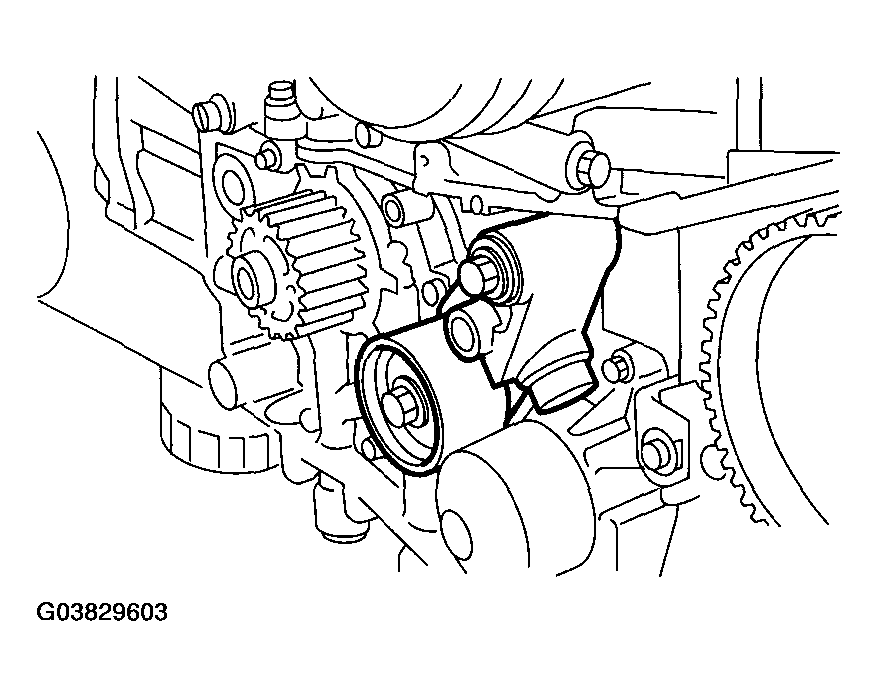

    Fig 3: Removing Automatic Belt Tension Adjuster Assembly
    G03829603Courtesy of SUBARU OF AMERICA, INC.
