Preparation for Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.

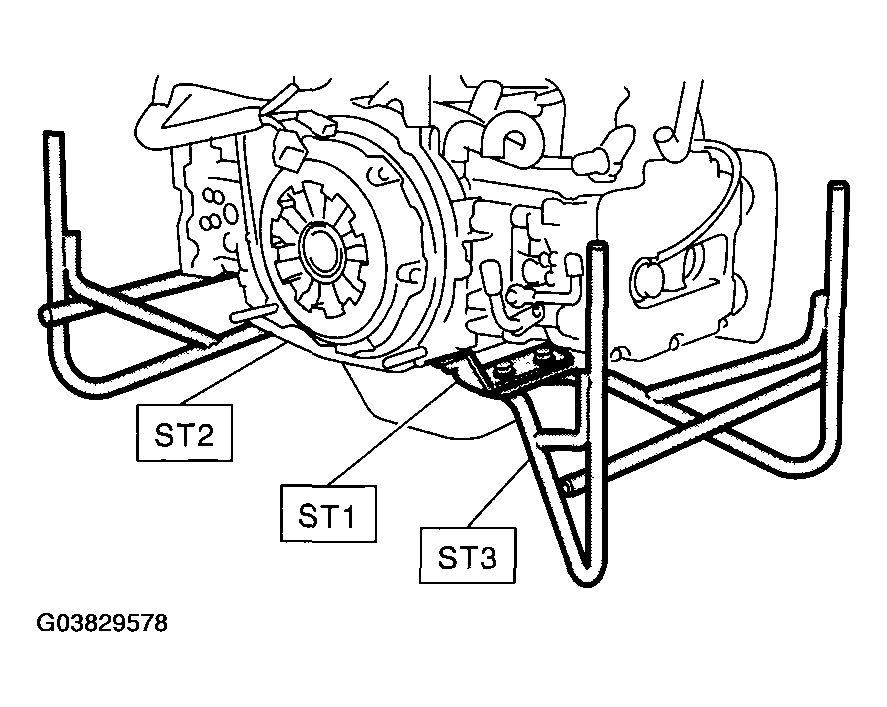

After removing the engine from body, secure it in the STS as shown in Fig 1 .
ST1 498457000 ENGINE STAND ADAPTER RH

ST2 498457100 ENGINE STAND ADAPTER LH

ST3 499817000 ENGINE STAND

Fig 1: Removing Engine From Body Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
In this section the procedures described under each index are all connected and stated in order. It will be the complete procedure for overhauling of the engine itself when you go through all steps in the process.
Therefore, in this section, to conduct the particular procedure within the flow of a section, you need to go back and conduct the procedure described previously in order to do that particular procedure.
