Special Tool

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL REFERENCE

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 498267600 CYLINDER HEAD TABLE
  • Used for replacing valve guides.
  • Used for removing and installing valve spring.
Fig 2 498457000 ENGINE STAND ADAPTER RH Used with ENGINE STAND (499817000).
Fig 3 498457100 ENGINE STAND ADAPTER LH Used with ENGINE STAND (499817000).
Fig 4 498497100 CRANKSHAFT STOPPER Used for stopping rotation of drive plate when loosening/tightening crank pulley bolt.
Fig 5 498747300 PISTON GUIDE Used for installing piston in cylinder. (2.5 L model)
Fig 6 498857100 VALVE OIL SEAL GUIDE Used for press-fitting of intake and exhaust valve guide oil seals.
Fig 7 499017100 PISTON PIN GUIDE Used for installing piston pin, piston and connecting rod.
Fig 8 499037100 CONNECTING ROD BUSHING REMOVER AND INSTALLER Used for removing and installing connecting rod bushing.
Fig 9 499097700 PISTON PIN REMOVER ASSY Used for removing piston pin.
Fig 10 499207400 CAMSHAFT SPROCKET WRENCH Used for removing and installing exhaust cam sprocket.
Fig 11 499977500 CAM SPROCKET WRENCH Used for removing and installing the intake cam sprocket.
Fig 12 499587200 CRANKSHAFT OIL SEAL INSTALLER
  • Used for installing crankshaft oil seal.
  • Used with CRANKSHAFT OIL SEAL GUIDE (499597100).
Fig 13 499597100 CRANKSHAFT OIL SEAL GUIDE
  • Used for installing crankshaft oil seal.
  • Used with CRANKSHAFT OIL SEAL INSTALLER (499587200).
Fig 14 499718000 VALVE SPRING REMOVER Used for removing and installing valve spring.
Fig 15 18251AA020 VALVE GUIDE ADJUSTER Used for installing intake and exhaust valve guides.
Fig 16 499767200 VALVE GUIDE REMOVER Used for removing valve guides.
Fig 17 499767400 VALVE GUIDE REAMER Used for reaming valve guides.
Fig 18 499817000 ENGINE STAND
  • Stand used for engine disassembly and assembly.
  • Used with ENGINE STAND ADAPTER RH (498457000) & LH (498457100).
Fig 19 499977100 CRANK PULLEY WRENCH Used for stopping rotation of crank pulley when loosening/tightening crank pulley bolt.
Fig 20 499987500 CRANKSHAFT SOCKET Used for rotating crankshaft.
Fig 21 499587100 OIL SEAL INSTALLER Used for installing oil pump oil seal.
Fig 22 499587600 OIL SEAL INSTALLER Used for installing camshaft oil seal for DOHC engine.
Fig 23 18332AA000 OIL FILTER WRENCH Used for removing and installing oil filter. (Outer diameter: 68 mm (2.68 in))
Fig 24 18332AA010 OIL FILTER WRENCH Used for removing and installing oil filter. (Outer diameter: 65 mm (2.56 in))
Fig 25 499597200 OIL SEAL GUIDE
  • Used for installing camshaft oil seal for DOHC engine.
  • Used with OIL SEAL INSTALLER (499587600)
Fig 26 498277200 STOPPER SET Used for installing automatic transmission assembly to engine.
Fig 27 42099AE000 CONNECTOR REMOVER Used for removing quick connector in engine room.
Fig 28 24082AA260 CARTRIDGE Troubleshooting for electrical system.
Fig 29 22771AA030 SUBARU SELECT MONITOR KIT Troubleshooting for electrical system.
Fig 1: Identifying Special Tool ST-498267600
G03829505Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Special Tool ST-498457000
G03829506Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying Special Tool ST-498457100
G03829507Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Special Tool ST-498497100
G03829508Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Special Tool ST-498747300
G03829509Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Identifying Special Tool ST-498857100
G03829510Courtesy of SUBARU OF AMERICA, INC.
Fig 7: Identifying Special Tool ST-499017100
G03829511Courtesy of SUBARU OF AMERICA, INC.
Fig 8: Identifying Special Tool ST-499037100
G03829512Courtesy of SUBARU OF AMERICA, INC.
Fig 9: Identifying Special Tool ST-499097700
G03829513Courtesy of SUBARU OF AMERICA, INC.
Fig 10: Identifying Special Tool ST-499207400
G03829514Courtesy of SUBARU OF AMERICA, INC.
Fig 11: Identifying Special Tool ST-499977500
G03829515Courtesy of SUBARU OF AMERICA, INC.
Fig 12: Identifying Special Tool ST-499587200
G03829516Courtesy of SUBARU OF AMERICA, INC.
Fig 13: Identifying Special Tool ST-499597100
G03829517Courtesy of SUBARU OF AMERICA, INC.
Fig 14: Identifying Special Tool ST-499718000
G03829518Courtesy of SUBARU OF AMERICA, INC.
Fig 15: Identifying Special Tool ST18251AA020
G03829519Courtesy of SUBARU OF AMERICA, INC.
Fig 16: Identifying Special Tool ST-499767200
G03829520Courtesy of SUBARU OF AMERICA, INC.
Fig 17: Identifying Special Tool ST-499767400
G03829521Courtesy of SUBARU OF AMERICA, INC.
Fig 18: Identifying Special Tool ST-499817000
G03829522Courtesy of SUBARU OF AMERICA, INC.
Fig 19: Identifying Special Tool ST-499977100
G03829523Courtesy of SUBARU OF AMERICA, INC.
Fig 20: Identifying Special Tool ST-499987500
G03829524Courtesy of SUBARU OF AMERICA, INC.
Fig 21: Identifying Special Tool ST-499587100
G03829525Courtesy of SUBARU OF AMERICA, INC.
Fig 22: Identifying Special Tool ST-499587600
G03829526Courtesy of SUBARU OF AMERICA, INC.
Fig 23: Identifying Special Tool ST-18332AA000
G03829527Courtesy of SUBARU OF AMERICA, INC.
Fig 24: Identifying Special Tool ST-18332AA010
G03829528Courtesy of SUBARU OF AMERICA, INC.
Fig 25: Identifying Special Tool ST-499597200
G03829529Courtesy of SUBARU OF AMERICA, INC.
Fig 26: Identifying Special Tool ST-498277200
G03829530Courtesy of SUBARU OF AMERICA, INC.
Fig 27: Identifying Special Tool ST-42099AE000
G03829531Courtesy of SUBARU OF AMERICA, INC.
Fig 28: Identifying Special Tool ST-24082AA260
G03829532Courtesy of SUBARU OF AMERICA, INC.

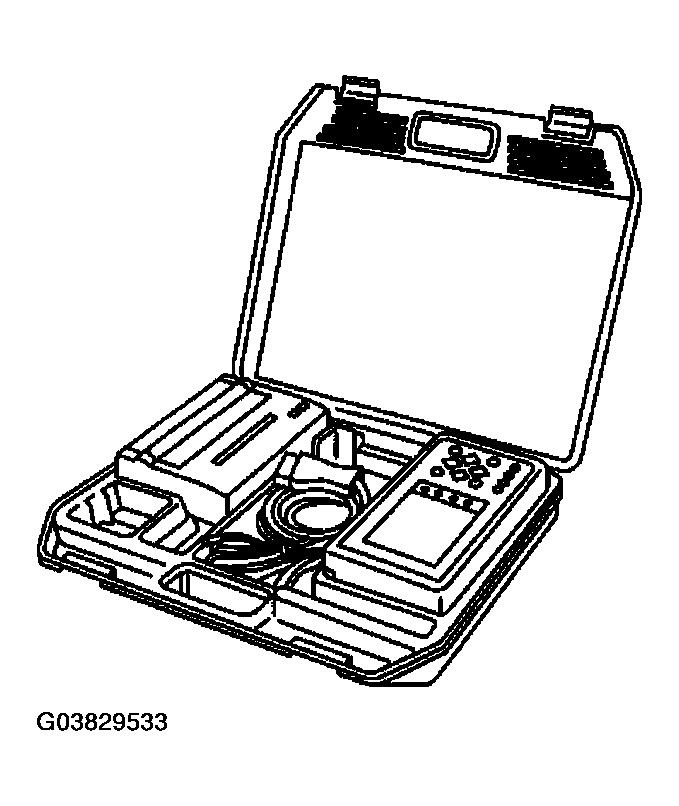

Fig 29: Identifying Special Tool ST-22771AA030
G03829533Courtesy of SUBARU OF AMERICA, INC.
