Section 17 (Engine Mechanical (H4DOTC))
>>
General Description
>>
Components With Torque Specifications
>>
Timing Belt
Timing Belt
WARNING:
This page is about a different variant/trim than selected.

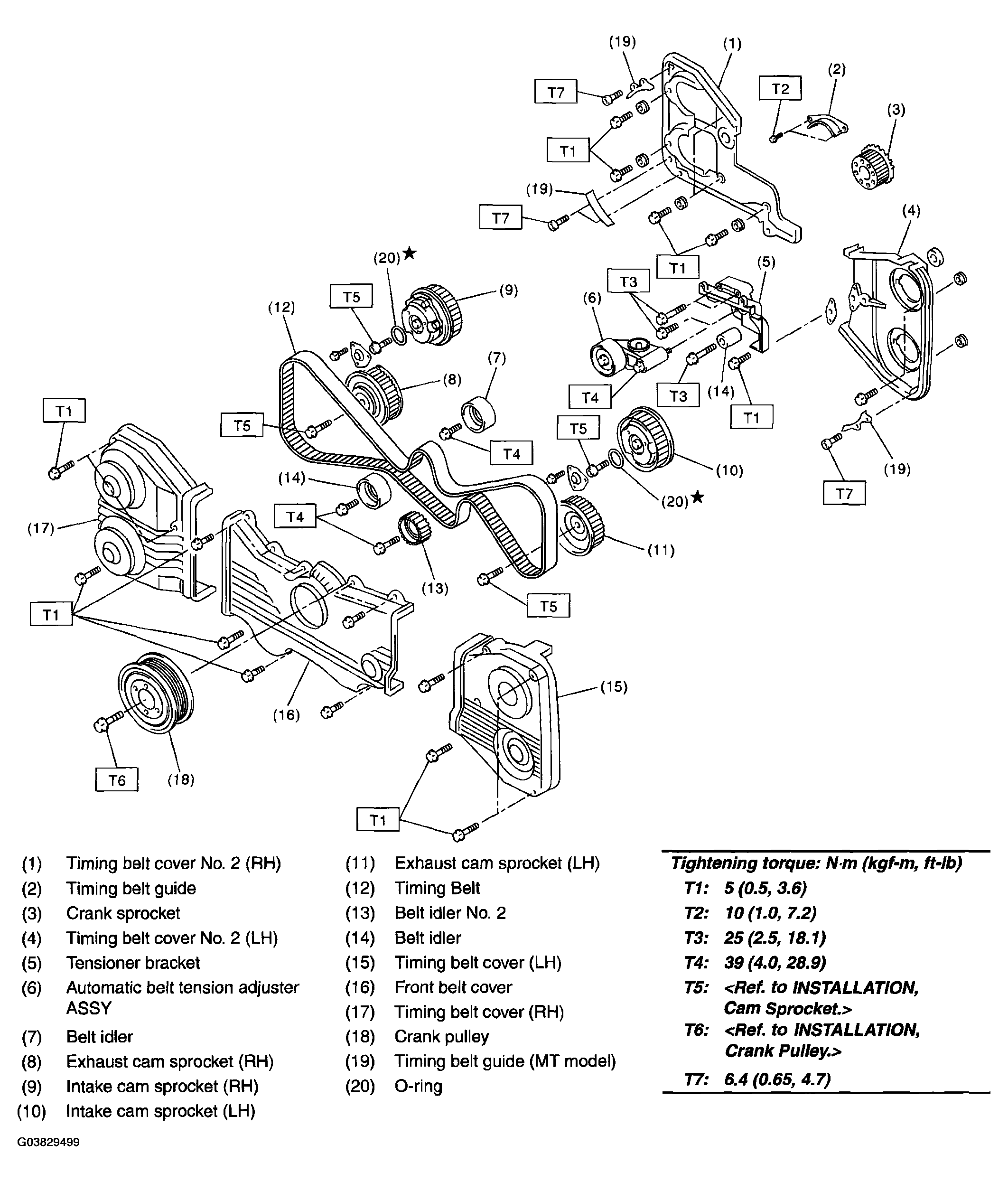

Fig 1: Exploded View Of Timing Belt Component With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
