Cylinder Head And Valve Assembly

WARNING: This page is about a different variant/trim than selected.

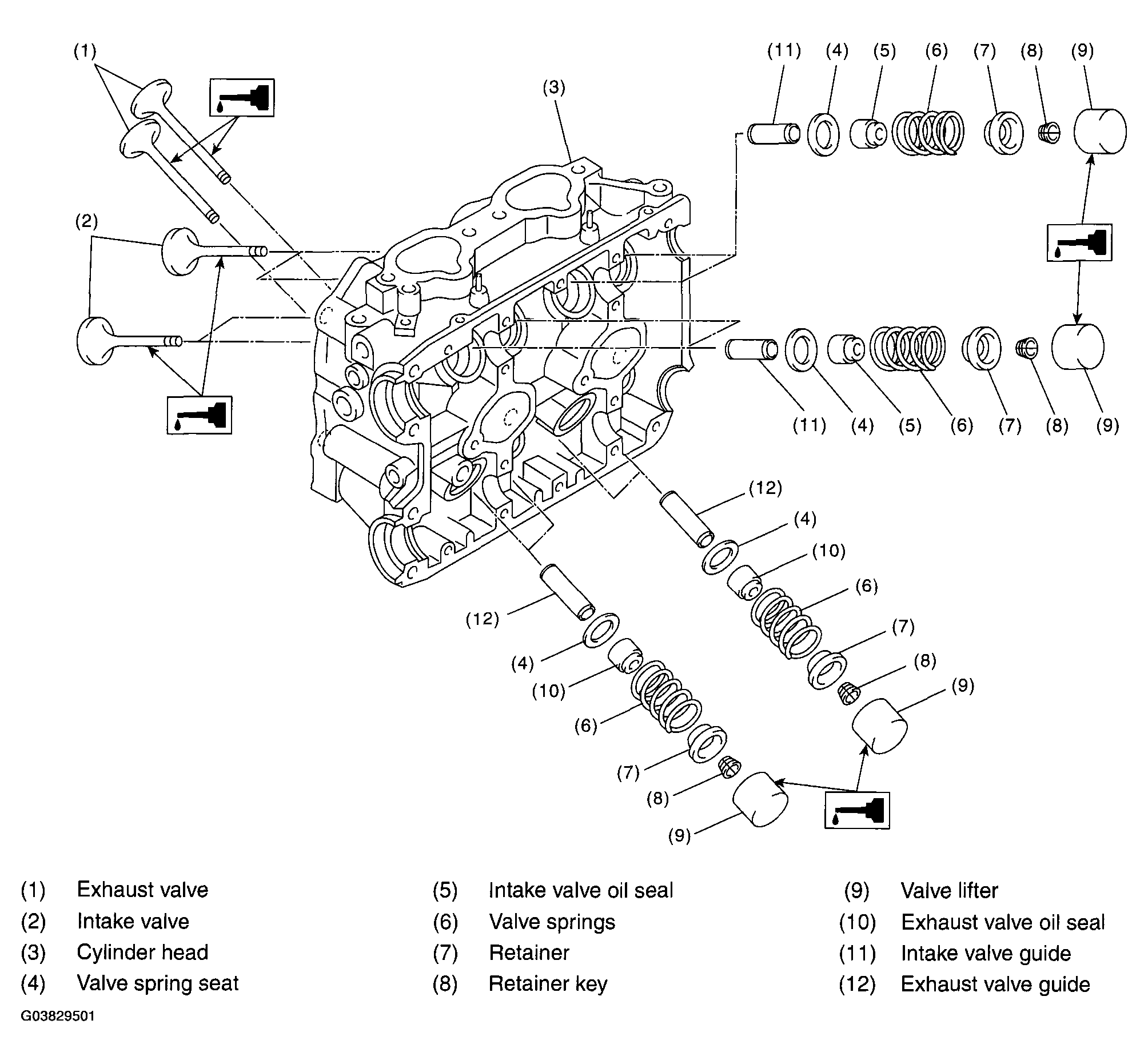

Fig 1: Exploded View Of Cylinder Head And Valve Assembly Component
G03829501Courtesy of SUBARU OF AMERICA, INC.
