Connecting Rod

WARNING: This page is about a different variant/trim than selected.
  1. Replace the connecting rod, if the large or small end thrust surface is damaged.
  2. Check for bend or twist using a connecting rod aligner. Replace the connecting rod if the bend or twist exceeds the limit.

    Limit of bend or twist per 100 mm (3.94 in) in length:

    0.10 mm (0.0039 in)

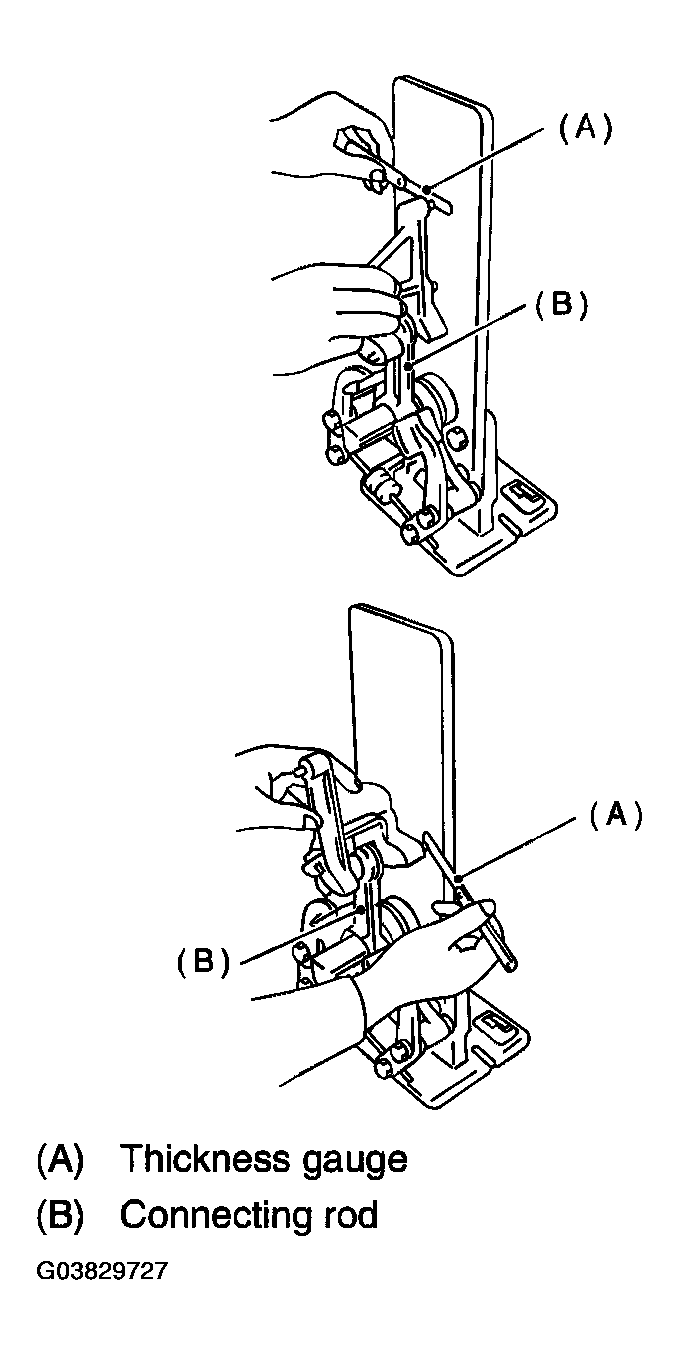

    Fig 1: Identifying Thickness Gauge And Connecting Rod
    G03829727Courtesy of SUBARU OF AMERICA, INC.
  3. Install the connecting rod fitted with bearing to crankshaft and measure the side clearance (thrust clearance). If side clearance exceeds the limit or has partial wear, replace the connecting rod.

    Connecting rod side clearance:

    Standard

    0.070 - 0.330 mm (0.0028 - 0.0130 in)

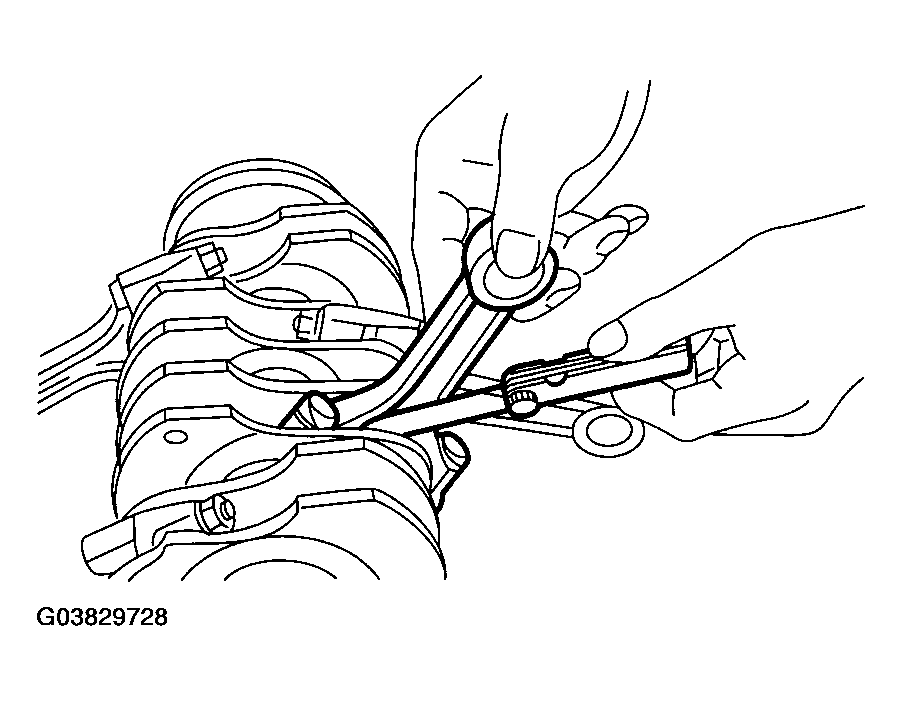

    Fig 2: Installing Connecting Rod Fitted With Bearing
    G03829728Courtesy of SUBARU OF AMERICA, INC.
  4. Inspect the connecting rod bearing for scar, peeling, seizure, melting, wear, etc.
  5. Measure the oil clearance on individual connecting rod bearings by means of plastigauge. If any oil clearance is not within the specification, replace the defective bearing with a new one of standard size or undersize as necessary. (See the table below.)

    Connecting rod oil clearance:

    Standard

    0.017 - 0.045 mm (0.0007 - 0.0018 in)

    BEARINGS SPECIFICATION

    Unit: mm (in)
    Bearings Bearing size (Thickness at center) Outer diameter of crank pin
    Standard 1.490 - 1.502 (0.0587 - 0.0591) 51.984 - 52.000 (2.0466 - 2.0472)
    0.03 (0.0012) undersize 1.504 - 1.512 (0.0592 - 0.0595) 51.954 - 51.970 (2.0454 - 2.0461)
    0.05 (0.0020) undersize 1.514 - 1.522 (0.0596 - 0.0599) 51.934 - 51.950 (2.0447 - 2.0453)
    0.25 (0.0098) undersize 1.614 - 1.622 (0.0635 - 0.0639) 51.734 - 51.750 (2.0368 - 2.0374)
  6. Inspect the bushing at connecting rod small end, and replace if worn or damaged. Also measure the piston pin clearance at the connecting rod small end.

    Clearance between piston pin and bushing:

    Standard

    0 - 0.022 mm (0 - 0.0009 in)

    Fig 3: Measuring Clearance Between Piston Pin And Bushing
    G03829729Courtesy of SUBARU OF AMERICA, INC.
    Fig 4: Measuring Piston Pin Diameter
    G03829730Courtesy of SUBARU OF AMERICA, INC.
  7. Replacement procedure is as follows.
    1. Remove the bushing from connecting rod with ST and press.
    2. Press the bushing with ST after applying oil on the periphery of bushing.

      ST 499037100 CONNECTING ROD BUSHING REMOVER AND INSTALLER

      Fig 5: Identifying Connecting Rod Bushing Remover And Installer ST 499037100
      G03829731Courtesy of SUBARU OF AMERICA, INC.
    3. Make two 3 mm (0.12 in) holes in bushing. Ream the inside of bushing.
    4. After completion of reaming, clean the bushing to remove chips.
