Cylinder Block: Disassembly

WARNING: This page is about a different variant/trim than selected.

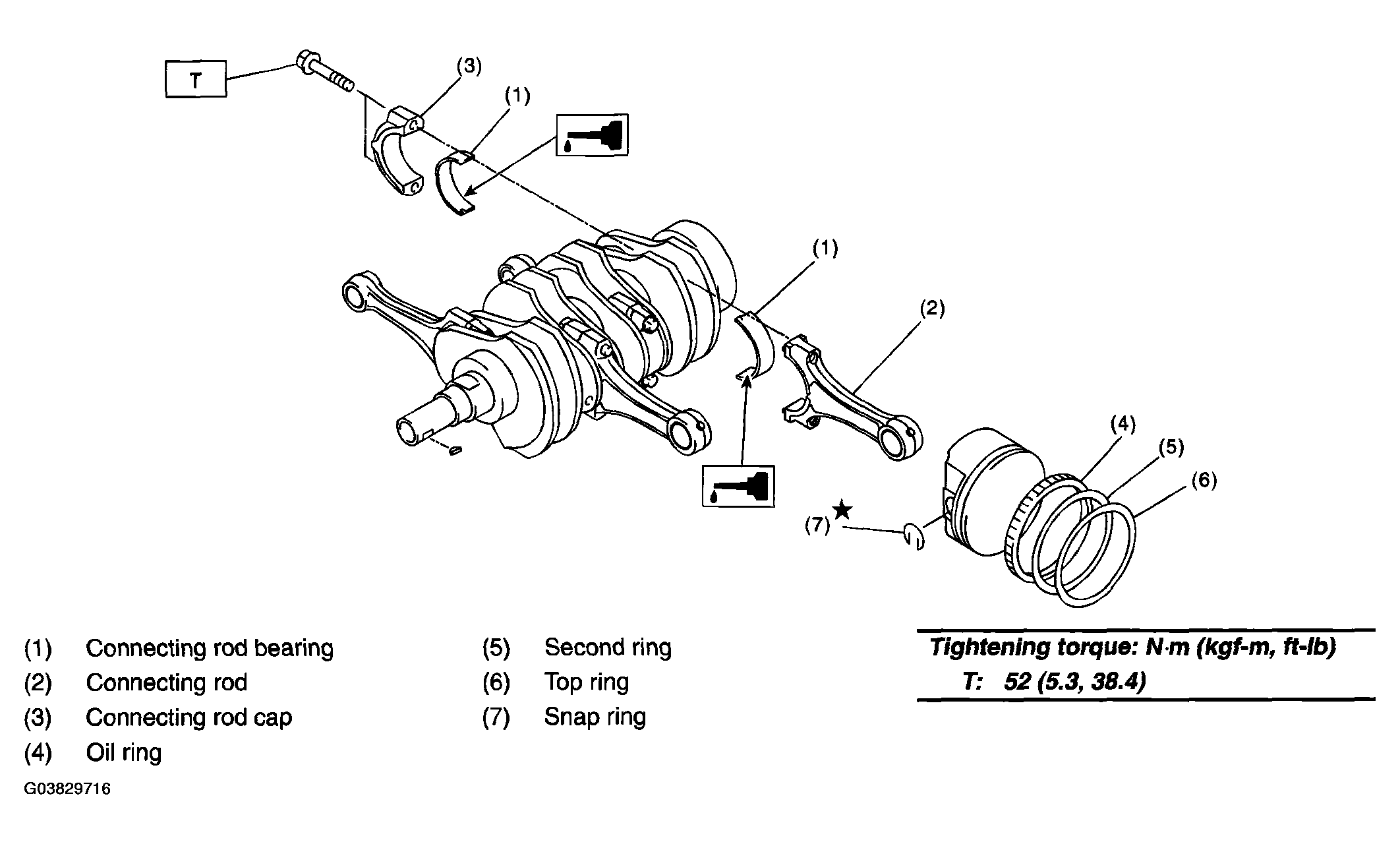

Fig 1: Disassembling Connecting Rod Assembly
G03829716Courtesy of SUBARU OF AMERICA, INC.
  1. Remove the connecting rod cap.
  2. Remove the connecting rod bearing.
    NOTE: Arrange the removed connecting rod, connecting rod cap and bearing in order to prevent confusion.
  3. Remove the piston rings using a piston ring expander.
  4. Remove the oil ring by hand.
    NOTE: Arrange the removed piston rings in proper order to prevent confusion.
  5. Remove the snap ring.
