Cylinder Block: Assembly
WARNING: This page is about a different variant/trim than selected.

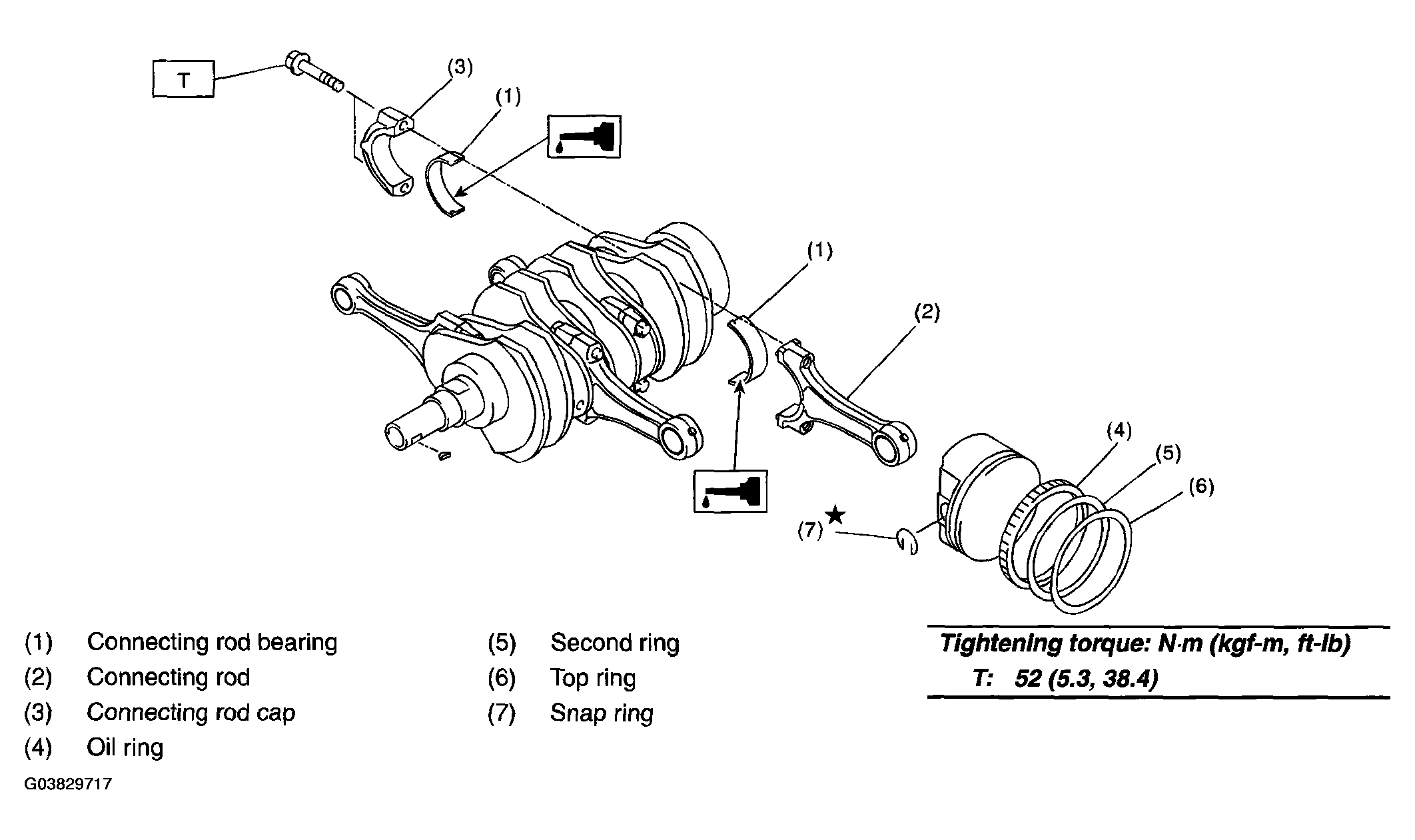

- Apply oil to the surfaces of the connecting rod bearings. Install the connecting rod bearings on connecting rods and connecting rod caps.
- Install the connecting rod on crankshaft.NOTE: Position each connecting rod with the side marked facing forward.
- Install the connecting rod cap.
Ensure the arrow mark on connecting rod cap facing front during installation.
CAUTION:- Each connecting rod has its own mating cap. Make sure that they are assembled correctly by checking their matching number.
- When tightening the connecting rod nuts, apply oil on the threads.
- Install the oil ring spacer, upper rail and lower rail in this order by hand. Then install the second ring and top ring using a piston ring expander.
