Intake Duct: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

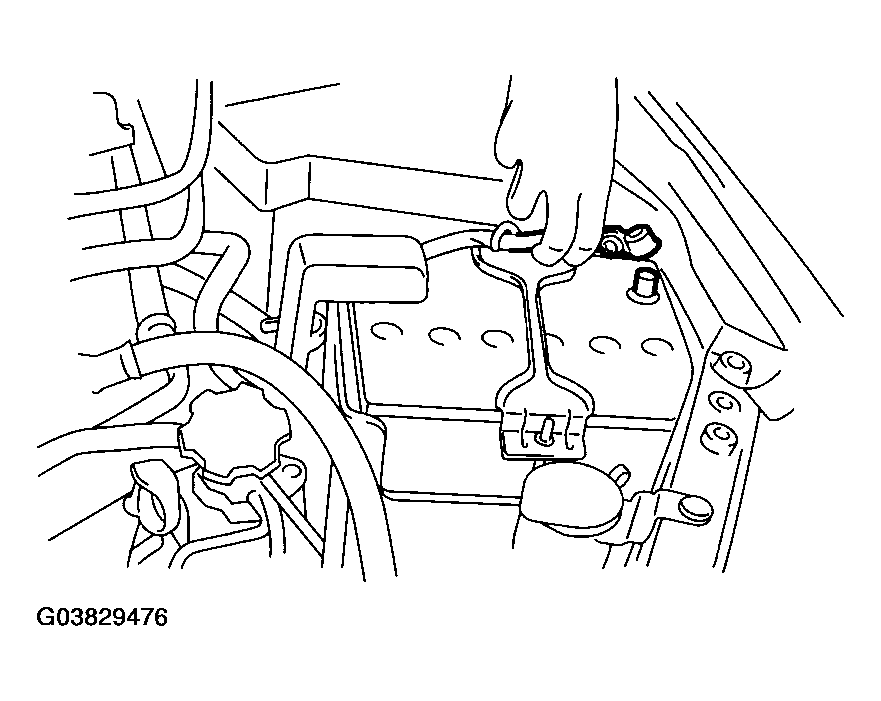

    Fig 1: Disconnecting Ground Cable From Battery
    G03829476Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
  4. Remove the sensor, engine harness and fuel pipe attached to the intake manifold. < Ref. to DISASSEMBLY , Intake Manifold. >
  5. Remove the intake duct from intake manifold.
    Fig 2: Removing Intake Duct From Intake Manifold
    G03829477Courtesy of SUBARU OF AMERICA, INC.
