Components With Torque Specifications: INTERCOOLER

WARNING: This page is about a different variant/trim than selected.

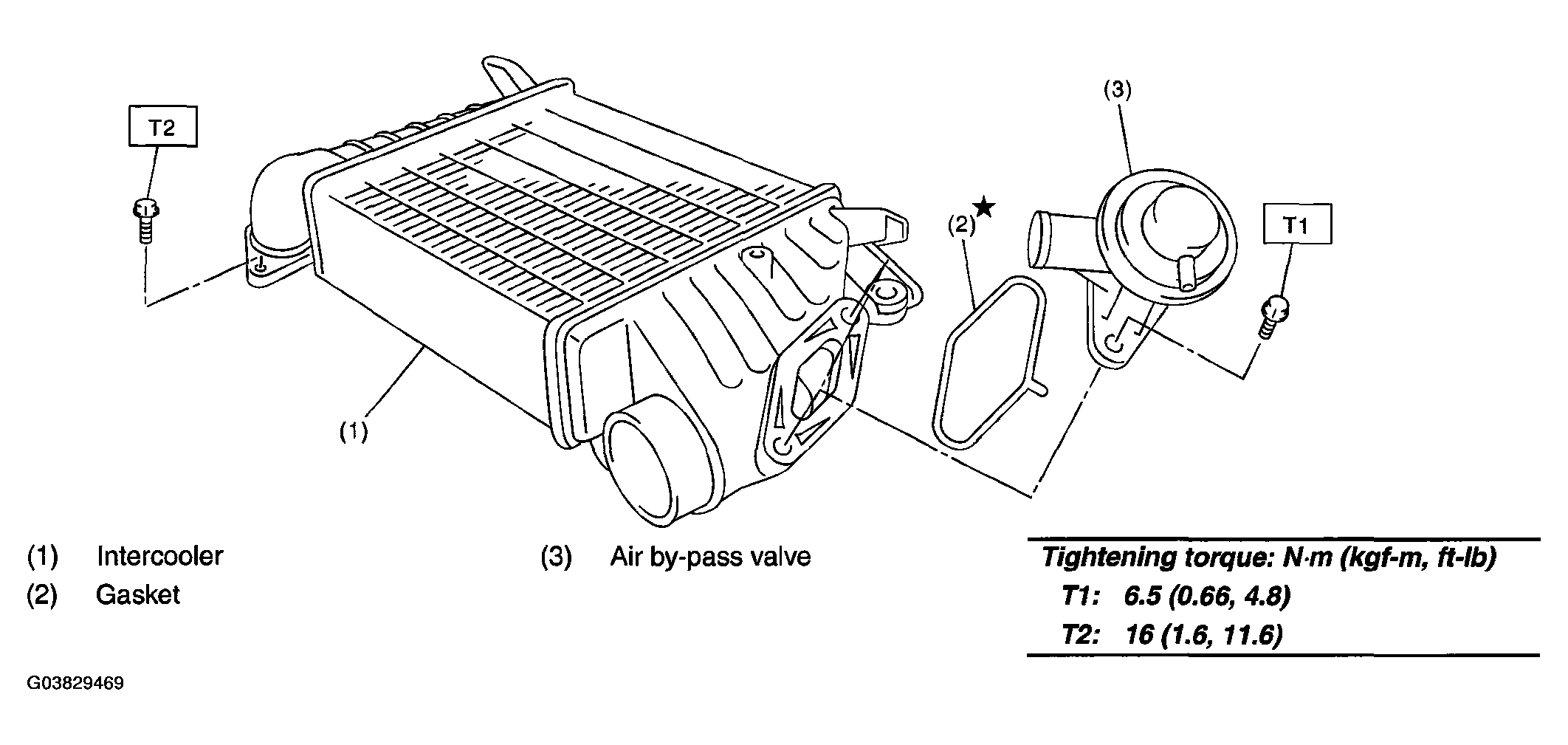

Fig 1: Exploded View Of Intercooler Components With Torque Specifications
G03829469Courtesy of SUBARU OF AMERICA, INC.
