Air By-pass Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Disconnect the air by-pass hose (A) from air by-pass valve.
  3. Remove the air by-pass valve (B) from intercooler.

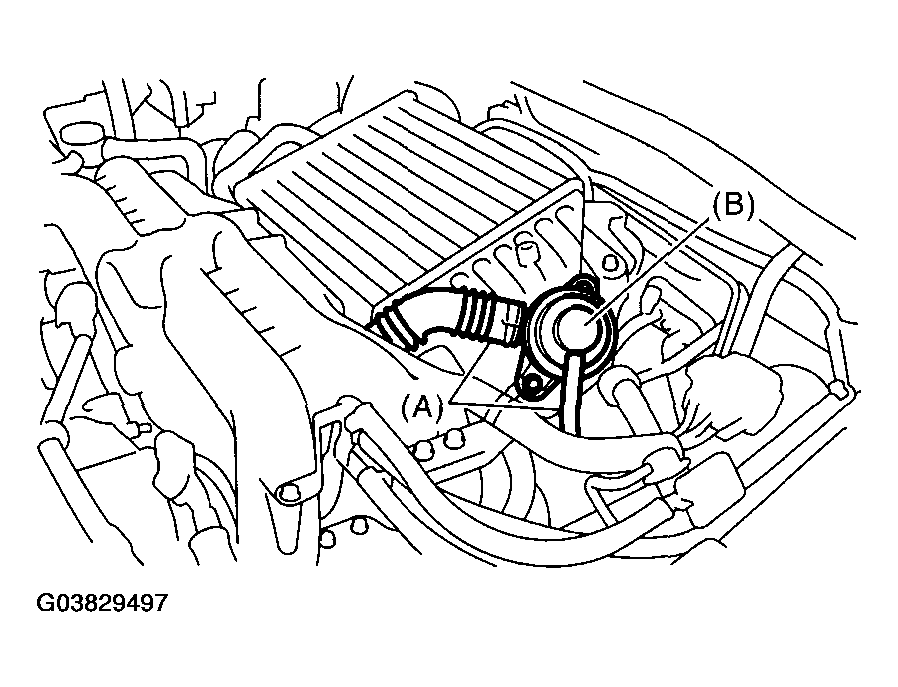

    Fig 1: Removing Air By-Pass Valve From Intercooler
    G03829497Courtesy of SUBARU OF AMERICA, INC.
