Purge Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

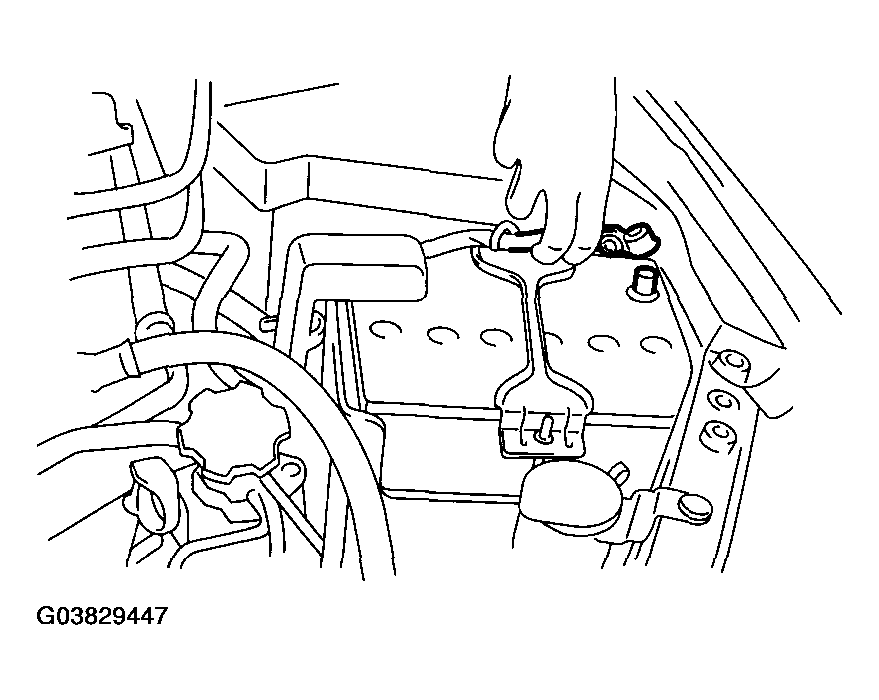

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the solenoid valve bracket assembly from intake manifold.

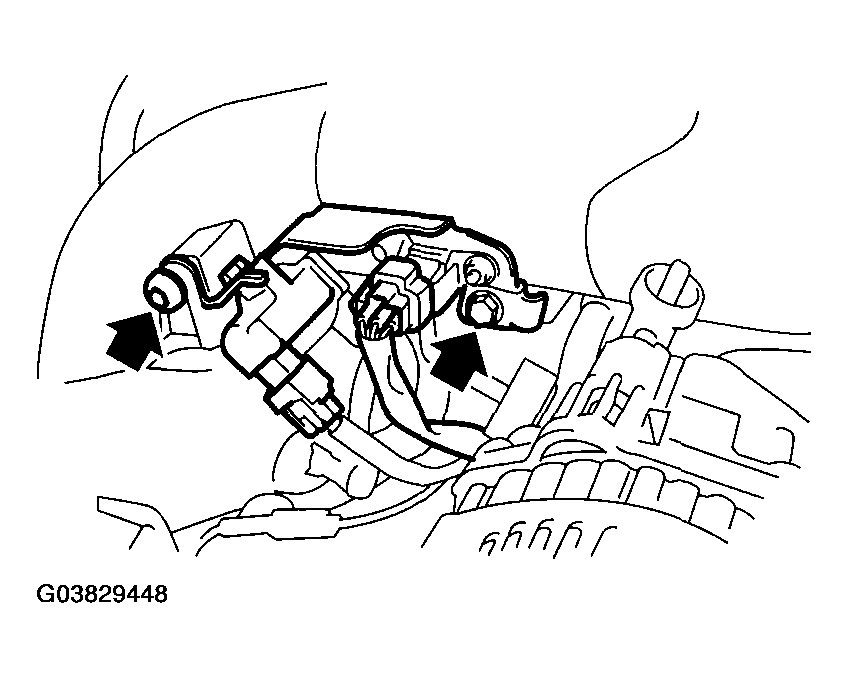

Fig 2: Removing Solenoid Valve Bracket Assembly From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from purge control solenoid valve.
Disconnect the evaporation hose from the intake manifold and fuel pipe assembly.
Remove the purge control solenoid valve from solenoid valve bracket assembly.

Fig 3: Removing Purge Control Solenoid Valve From Solenoid Valve Bracket Assembly

Courtesy of SUBARU OF AMERICA, INC.
