Purge Control Solenoid Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

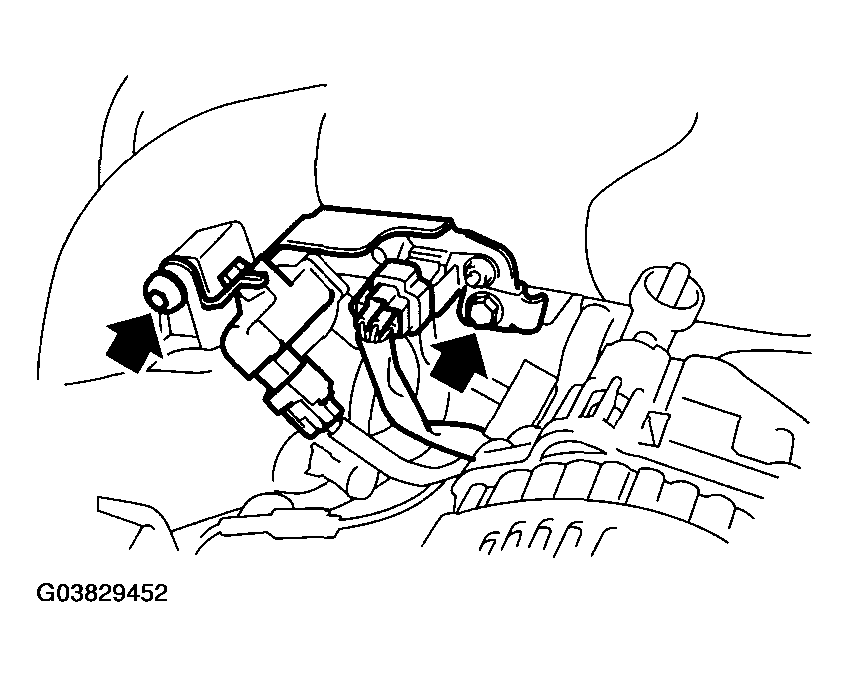

Fig 1: Installing Purge Control Solenoid Valve From Solenoid Valve Bracket Assembly

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Connect the evaporation hose as shown in Fig 2 .

Fig 2: Connecting Evaporation Hose

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

Fig 3: Locating Bolt

Courtesy of SUBARU OF AMERICA, INC.
