Pressure Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on the lift.
Disconnect the battery ground cable.

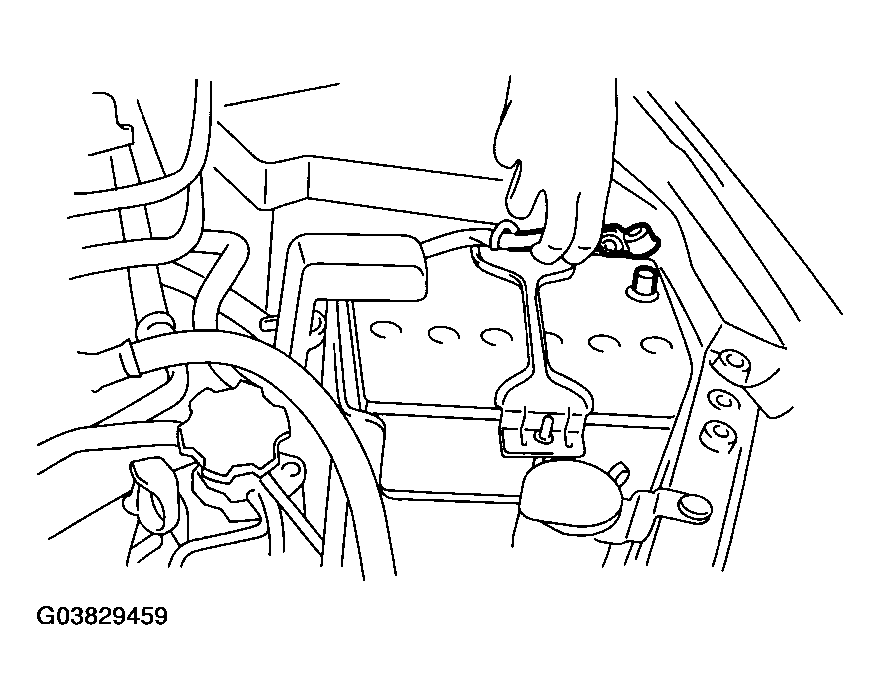

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Disconnect the connector from pressure control solenoid valve.
Disconnect the evaporation hose (B) from pressure control solenoid valve.
Remove the bolt (C) which holds the bracket to fuel tank.

Fig 2: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the pressure control solenoid valve from bracket.

Fig 3: Removing Pressure Control Solenoid Valve From Bracket

Courtesy of SUBARU OF AMERICA, INC.
