PCV Hose Assembly: Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not remove the PCV hose assembly except when the PCV hose, diagnosis connector or PCV valve is damaged.
- Remove the intake manifold.
< Ref. to REMOVAL , Intake Manifold. >

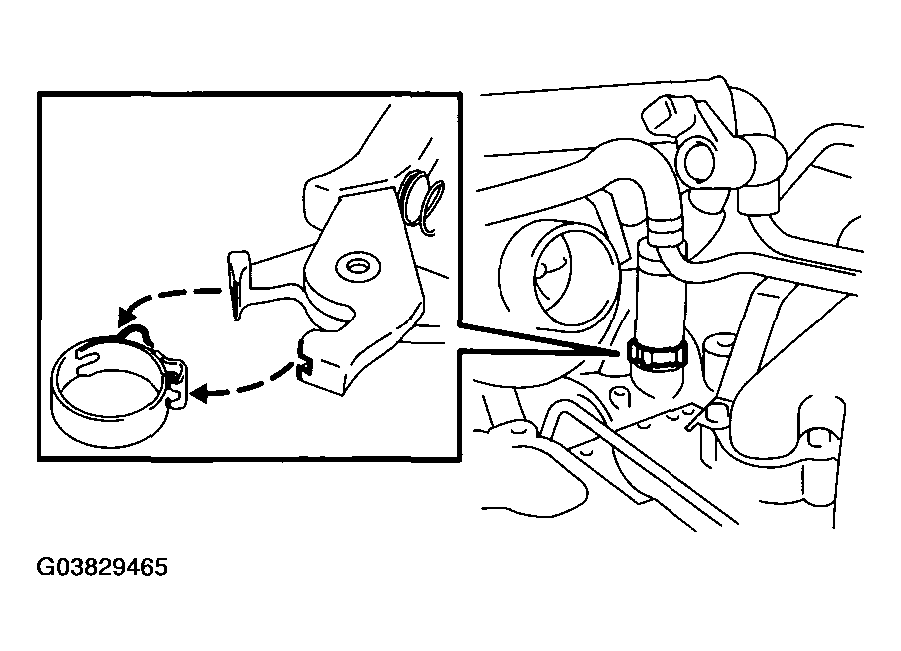

- Clip the protrusion of clamp by aligning it with the concave portion of ST to unlock.
- Remove the PCV hose assembly.
ST 18353AA000 CLAMP PLIERS
