PCV Hose Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Replace the clamp with a new one.

Install the PCV hose assembly, and then lock the clamp by clipping the protrusion of clamp using ST.
ST 18353AA000 CLAMP PLIERS

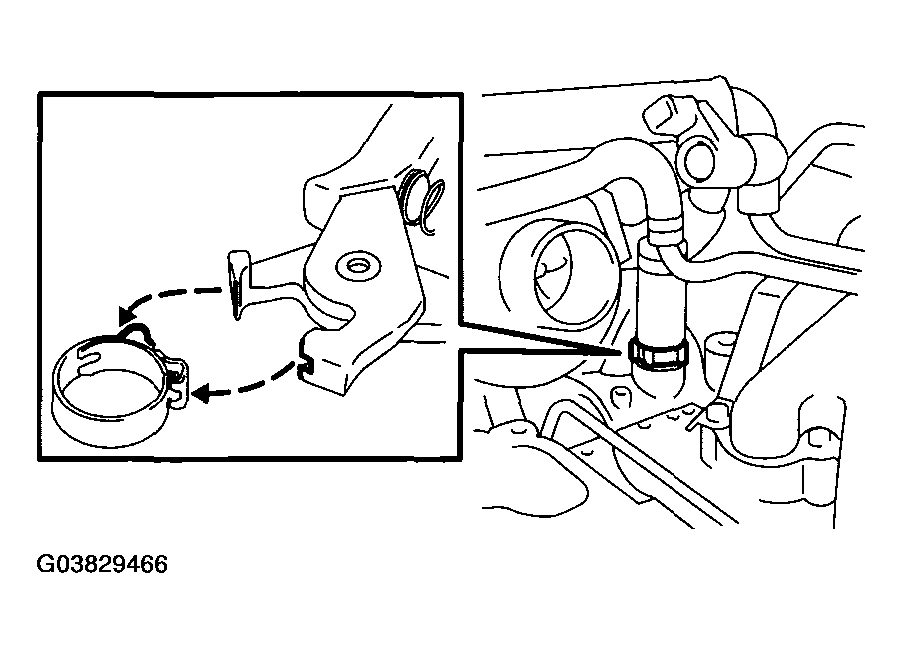

Fig 1: Installing PCV Hose Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold.
< Ref. to INSTALLATION , Intake Manifold. >
