Fuel Tank Pressure Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

Tightening torque:

7.4 N.m (0.75 kgf-m, 5.4 ft-lb)

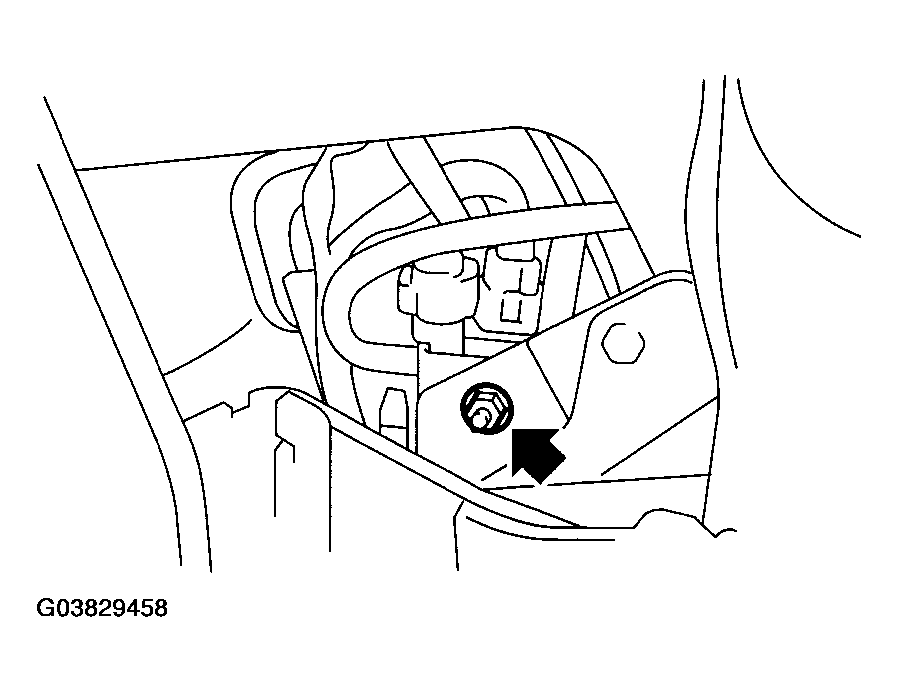

Fig 1: Installing Fuel Tank Pressure Sensor And Fuel Tank Sensor Control Valve With Bracket

Courtesy of SUBARU OF AMERICA, INC.
