Section 15 (Emission Control (Aux. Emission Control Devices) (H4DOTC)): Canister: Removal

1. Disconnect the ground cable from battery.

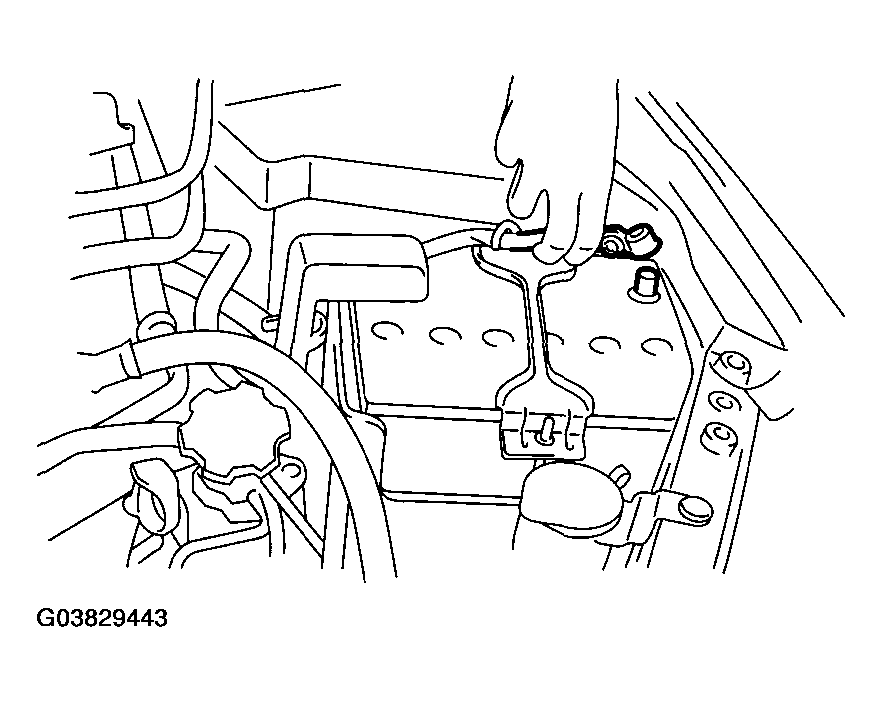

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Lift-up the vehicle.
3. Remove the rear wheel LH.
4. Remove the mud guard LH.
5. Disconnect the quick connector (A).
6. Disconnect the drain valve connector (B).
7. Remove the clamp (C).

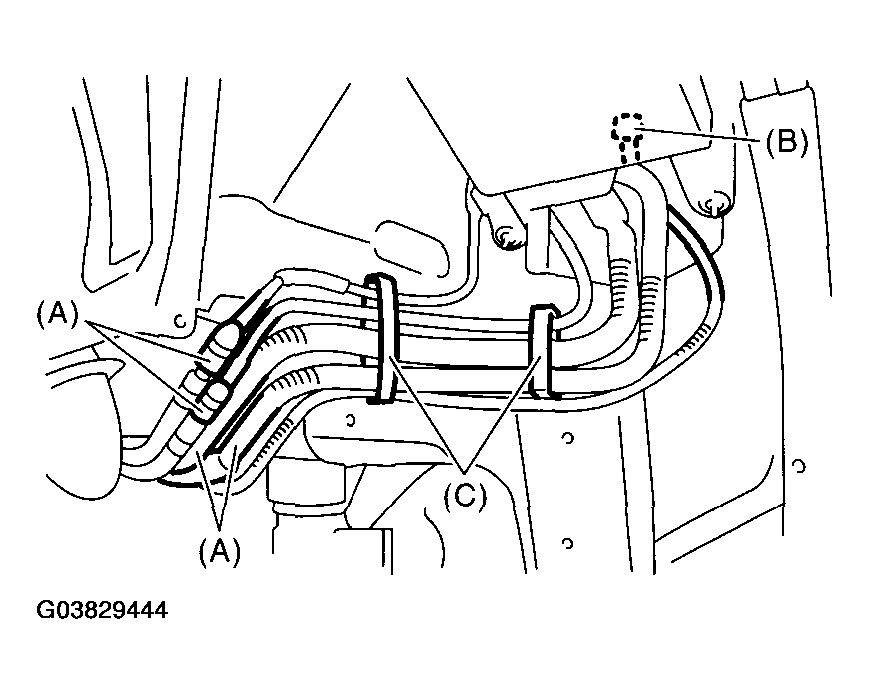

   Fig 2: Removing Clamp

   Courtesy of SUBARU OF AMERICA, INC.
8. Remove the canister from body.

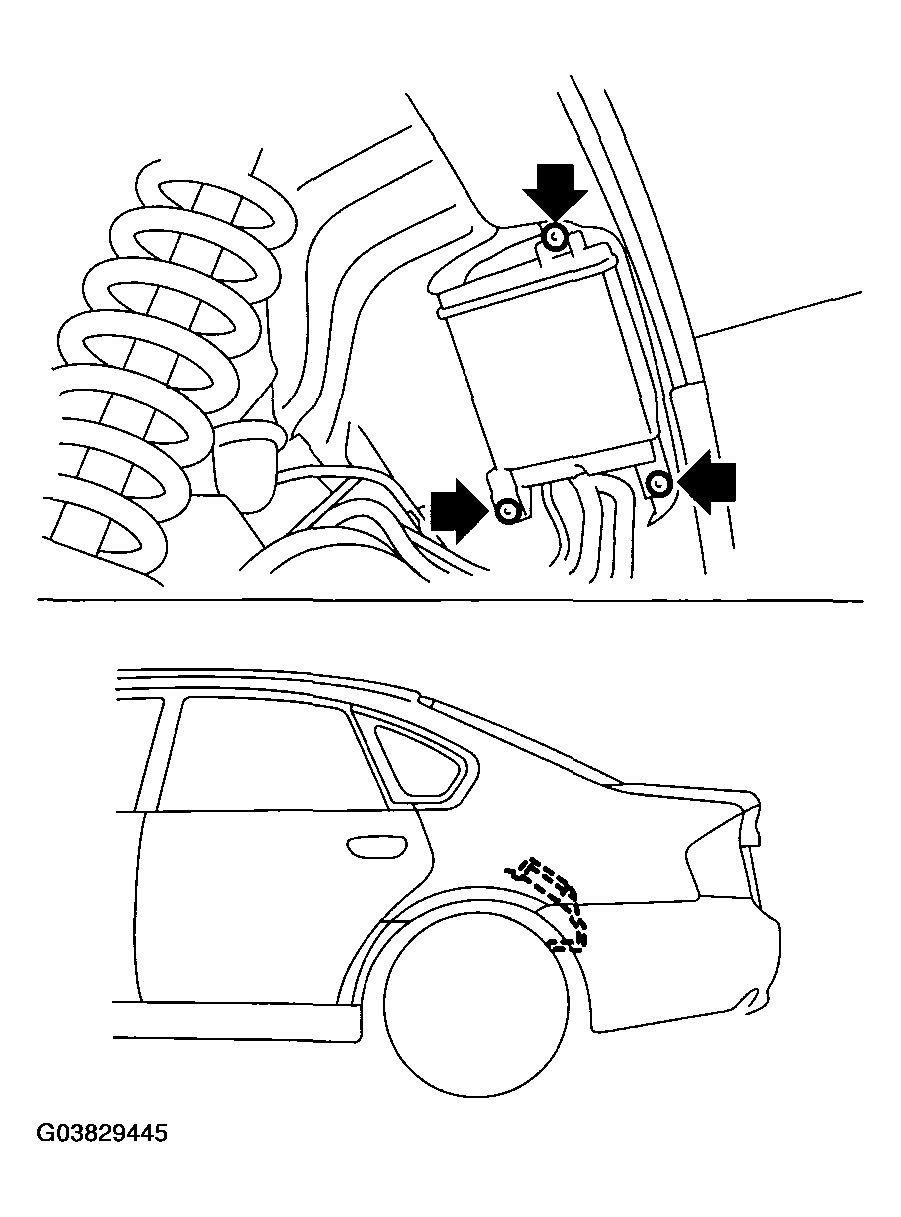

Fig 3: Removing Canister From Body

Courtesy of SUBARU OF AMERICA, INC.
