Section 15 (Emission Control (Aux. Emission Control Devices) (H4DOTC)): Canister: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Make sure there are no damage or dust on the connection of quick connector. If necessary, clean the seal surface of pipe.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

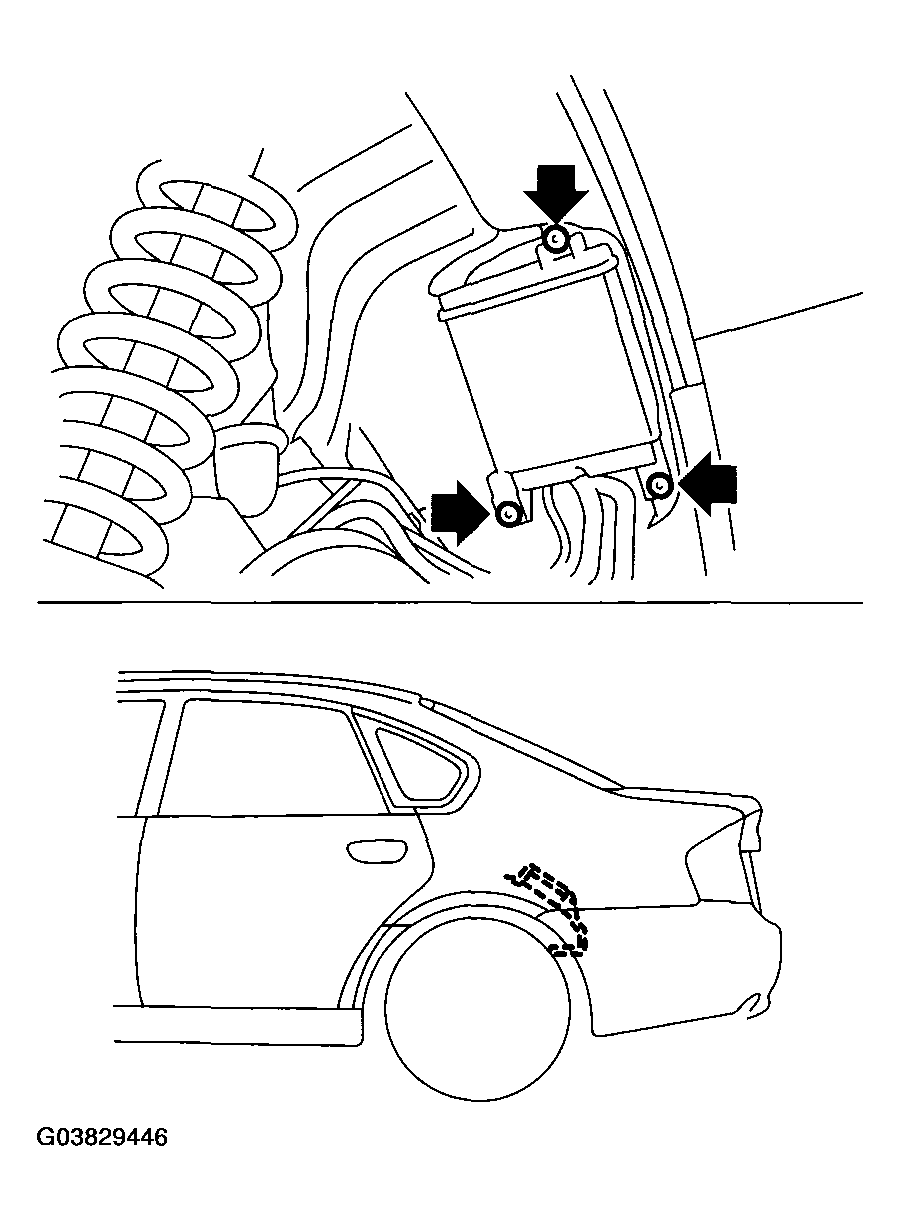

Fig 1: Installing Canister To Body

Courtesy of SUBARU OF AMERICA, INC.
