Manifold Absolute Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

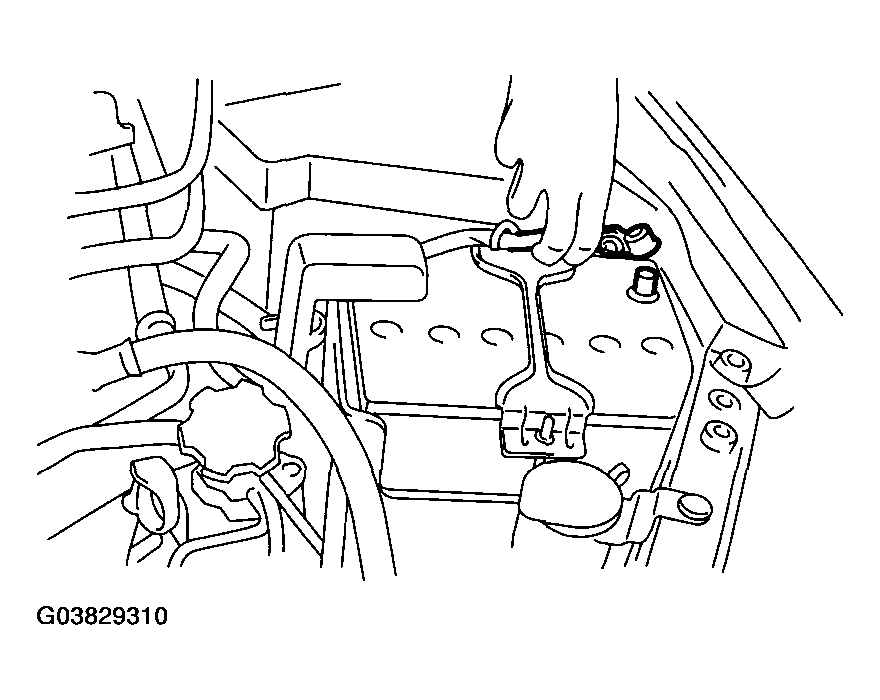

    Fig 1: Disconnecting Ground Cable From Battery
    G03829310Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from manifold absolute pressure sensor (A), and remove the filter assembly (B) from intake manifold.
  4. Remove the manifold absolute pressure sensor from solenoid valve bracket.

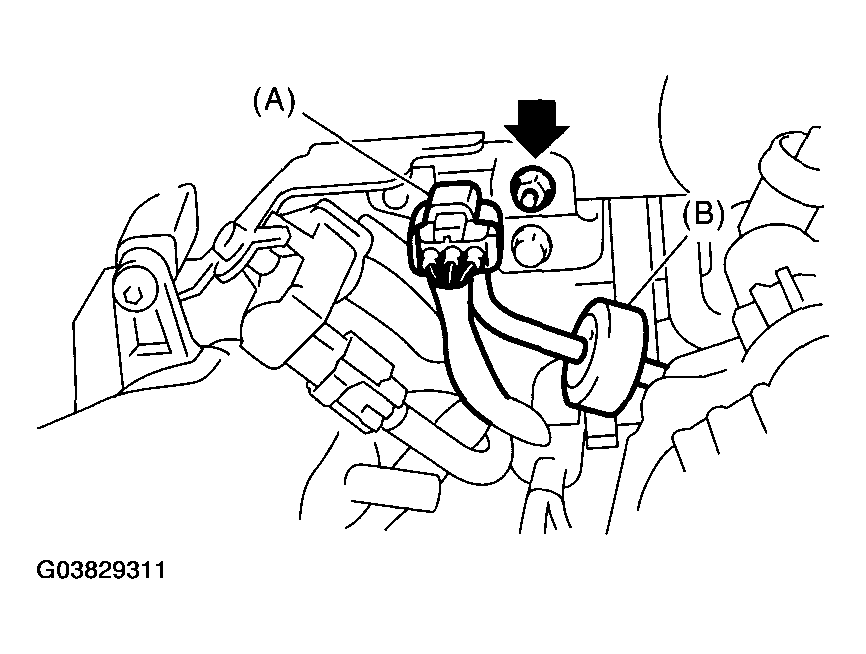

Fig 2: Disconnecting Connector From Manifold Absolute Pressure Sensor
G03829311Courtesy of SUBARU OF AMERICA, INC.
