Section 14 (Fuel Injection (Fuel Systems) (H4DOTC)): General Description: Preparation Tool

WARNING: This page is about a different variant/trim than selected.

PREPARATION TOOL

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	24082AA260	CARTRIDGE	Troubleshooting for electrical system.
Fig 2	22771AA030	SUBARU SELECT MONITOR KIT	Troubleshooting for electrical system.
Fig 3	42099AE000	CONNECTOR REMOVER	Used for disconnecting quick connector.

Fig 1: Identifying Special Tool ST24082AA260

Courtesy of SUBARU OF AMERICA, INC.

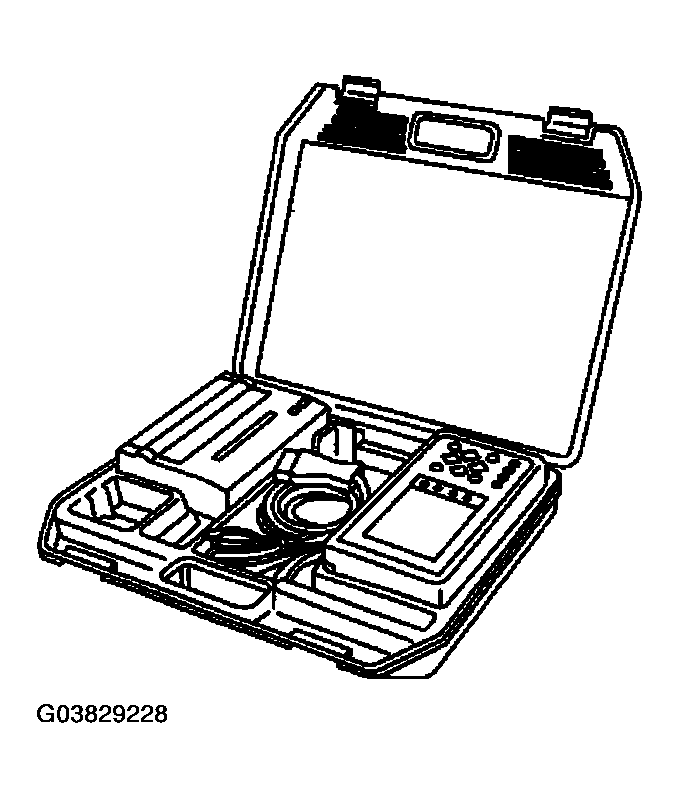

Fig 2: Identifying Special Tool ST22771AA030

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Special Tool ST42099AE000

Courtesy of SUBARU OF AMERICA, INC.
