Section 14 (Fuel Injection (Fuel Systems) (H4DOTC))
>>
General Description
>>
Components With Torque Specifications
>>
Intake Manifold
Intake Manifold
WARNING:
This page is about a different variant/trim than selected.

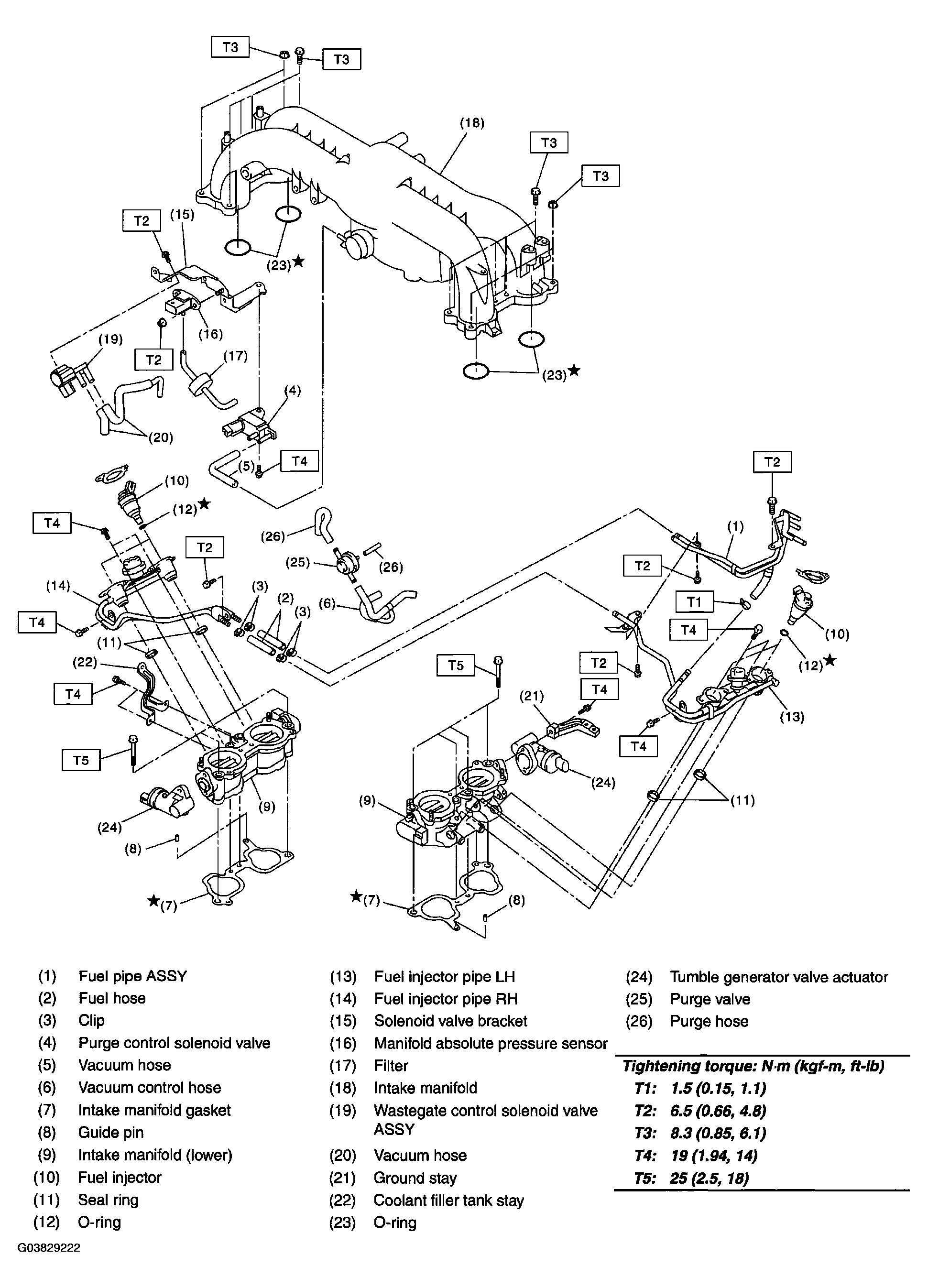

Fig 1: Exploded View Of Intake Manifold Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
