Fuel Pump Relay: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.

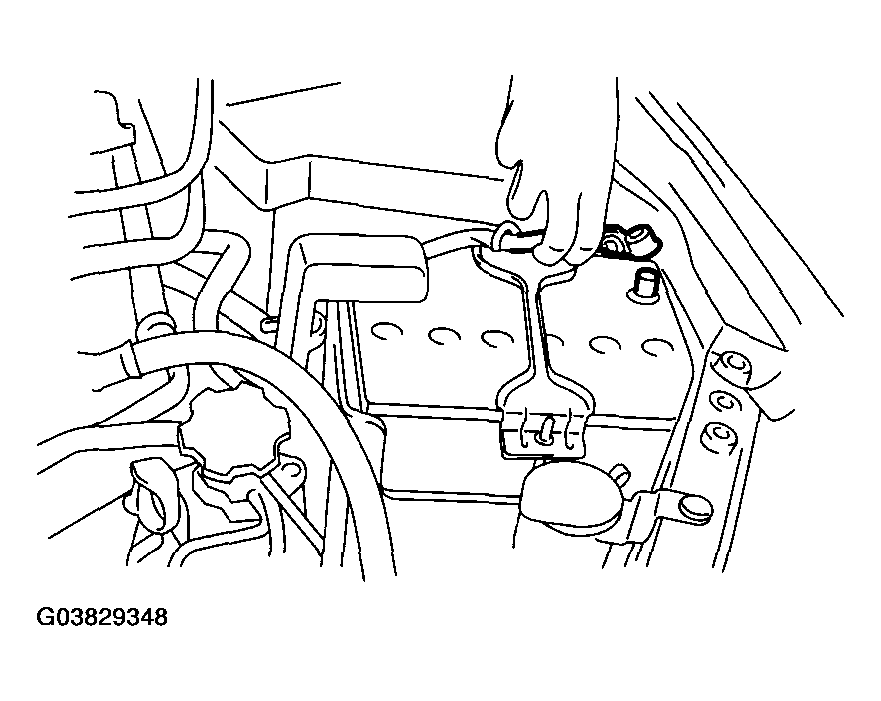

    Fig 1: Disconnecting Ground Cable From Battery
    G03829348Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the harness cover (A).
    Fig 2: Removing Harness Cover
    G03829349Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from fuel pump relay.

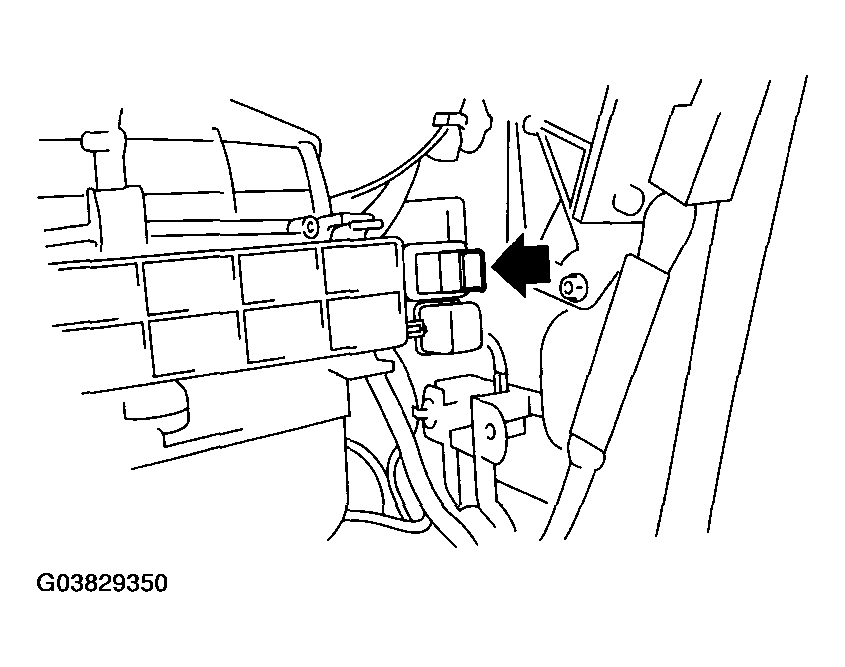

Fig 3: Disconnecting Connector From Fuel Pump Relay
G03829350Courtesy of SUBARU OF AMERICA, INC.
