LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Release the fuel pressure.

    < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >

  2. Open the fuel filler flap lid, and remove the fuel filler cap.
  3. Remove the collector cover.
  4. Disconnect the ground cable from battery.

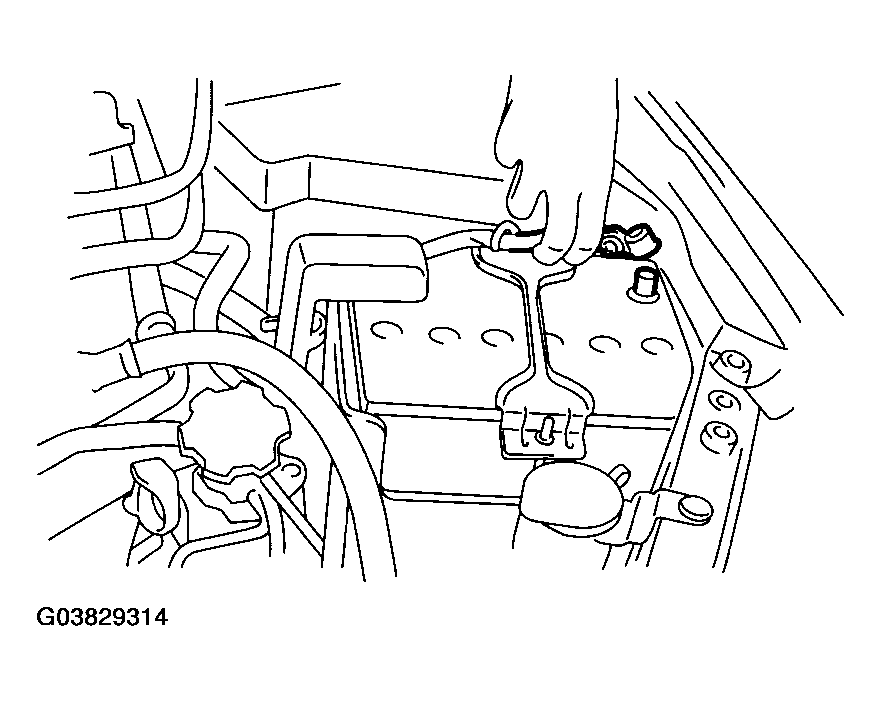

    Fig 1: Disconnecting Ground Cable From Battery
    G03829314Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector from fuel injector.
  6. Remove the screw and remove the fuel injector.

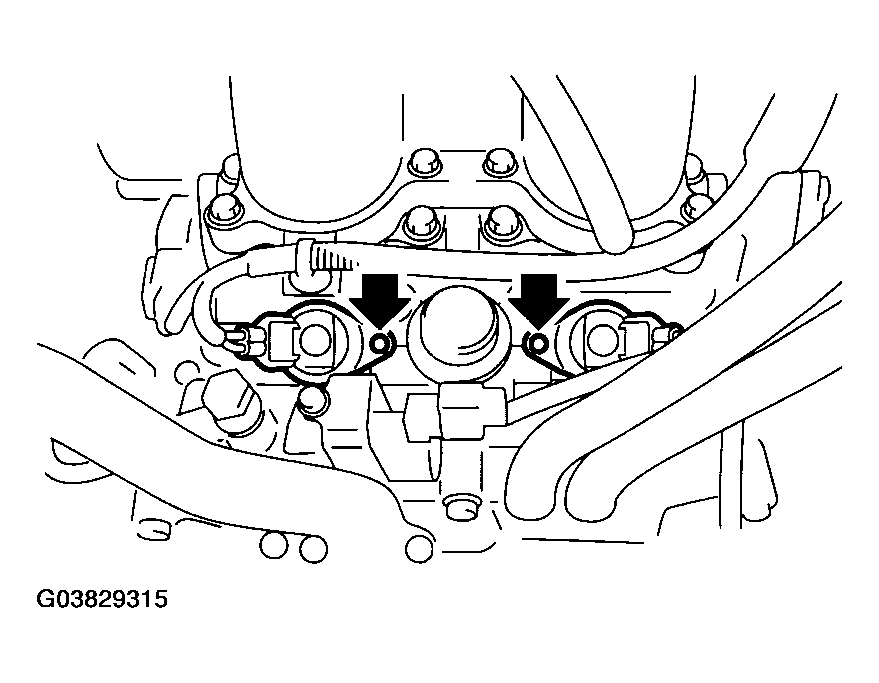

Fig 2: Removing Screw
G03829315Courtesy of SUBARU OF AMERICA, INC.
