Fuel Bypass Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

Tightening torque:

Fuel bypass valve bracket

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Clamp

1.25 N.m (0.13 kgf-m, 5.5 ft-lb)

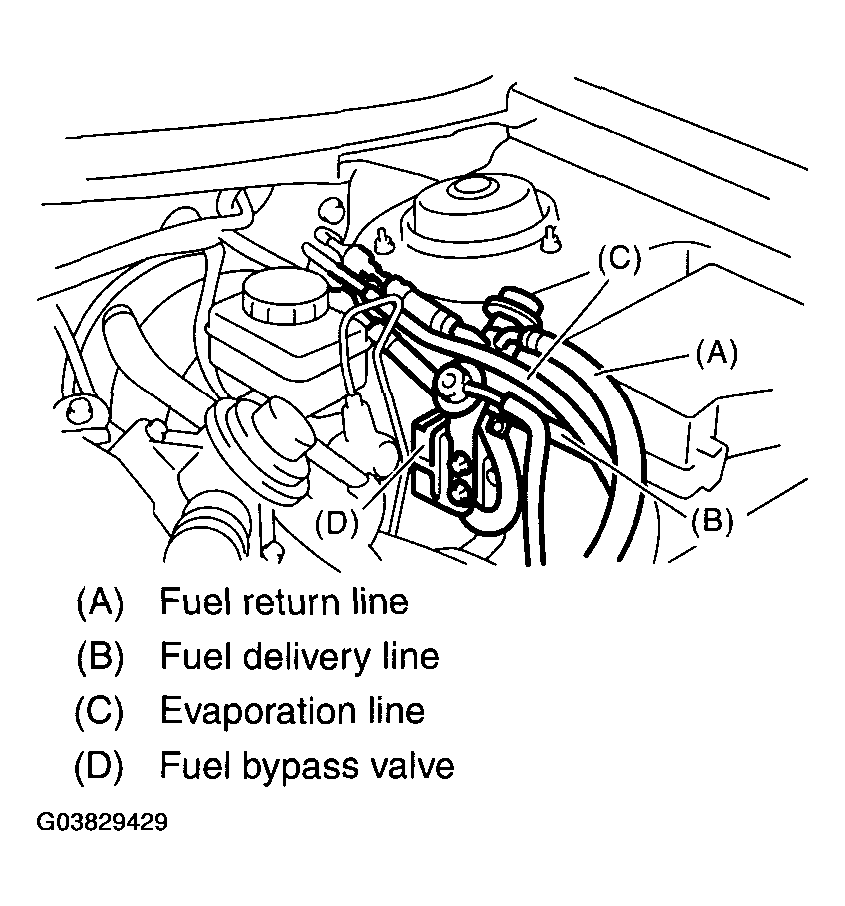

Fig 1: Connecting Fuel Bypass Valve From Vehicle

Courtesy of SUBARU OF AMERICA, INC.
