Outline Of Diagnosis: Notes
WARNING: This page is about a different variant/trim than selected.

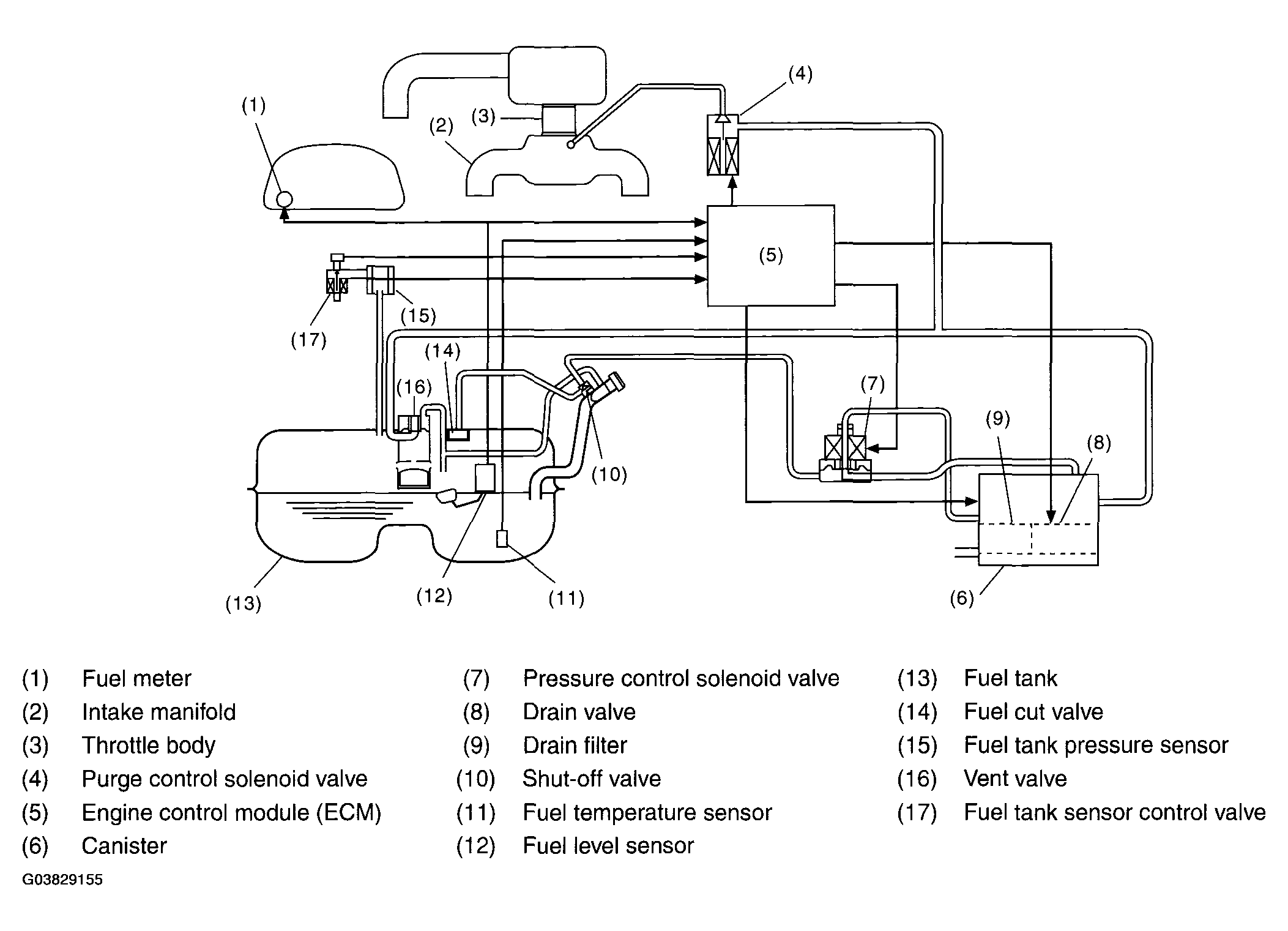

Perform the diagnosis of leakage of fuels system and valve functions.
In this system diagnosis, checking for leakage and valve operation is conducted by changing the fuel tank pressure, and monitoring the pressure change using the fuel tank pressure sensor. 0.04-inch diagnosis is performed in the order of mode Z, mode A, mode B, mode C and mode D, and 0.02-inch diagnosis is performed in the order of mode A, mode B, mode C, mode D and mode E.
