0.02-inch Diagnosis
WARNING: This page is about a different variant/trim than selected.

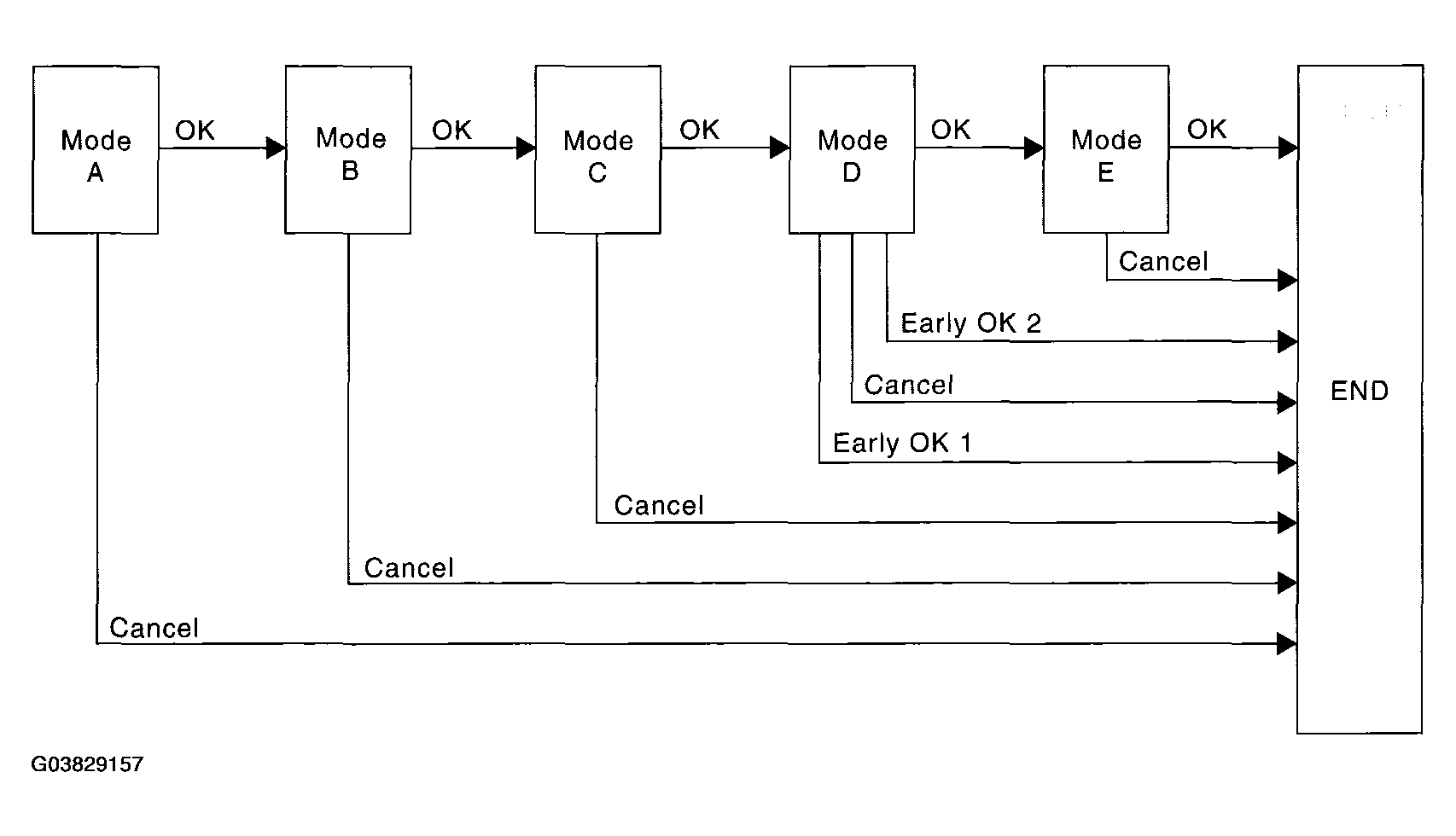

MODE DESCRIPTION
| Mode | Mode Description | Diagnosis Period |
|---|---|---|
| Mode A (0 point correction) | Wait until the tank pressure returns to 0 point 0 kPa (0 mmHg, 0 inHg) when tank pressure is high. | 0 - 12 seconds |
| Mode B (Introduce negative pressure) | Introduce the intake manifold pressure to the fuel tank and reduce the tank pressure to the desired value. | 0 - 27 seconds |
| Mode C (Hold negative pressure) | Wait until the tank pressure returns to the start pressure of P2 calculation. | 0 - 20 seconds |
| Mode D (Negative pressure variation calculation) | Calculate the time until the tank pressure becomes the end pressure of P2 calculation. Make advanced OK judgment when the tank pressure does not become the end pressure of P2 calculation. | 0 - 200 seconds |
| Mode E (Evaporative gas amount calculation) | Calculate the amount of evaporative gas yield (P1). | 0 - 280 seconds |
