Diagnostic method: Overview

WARNING: This page is about a different variant/trim than selected.

CPC open fixation diagnosis are performed in mode Z as shown in Fig 2 & Fig 1 .

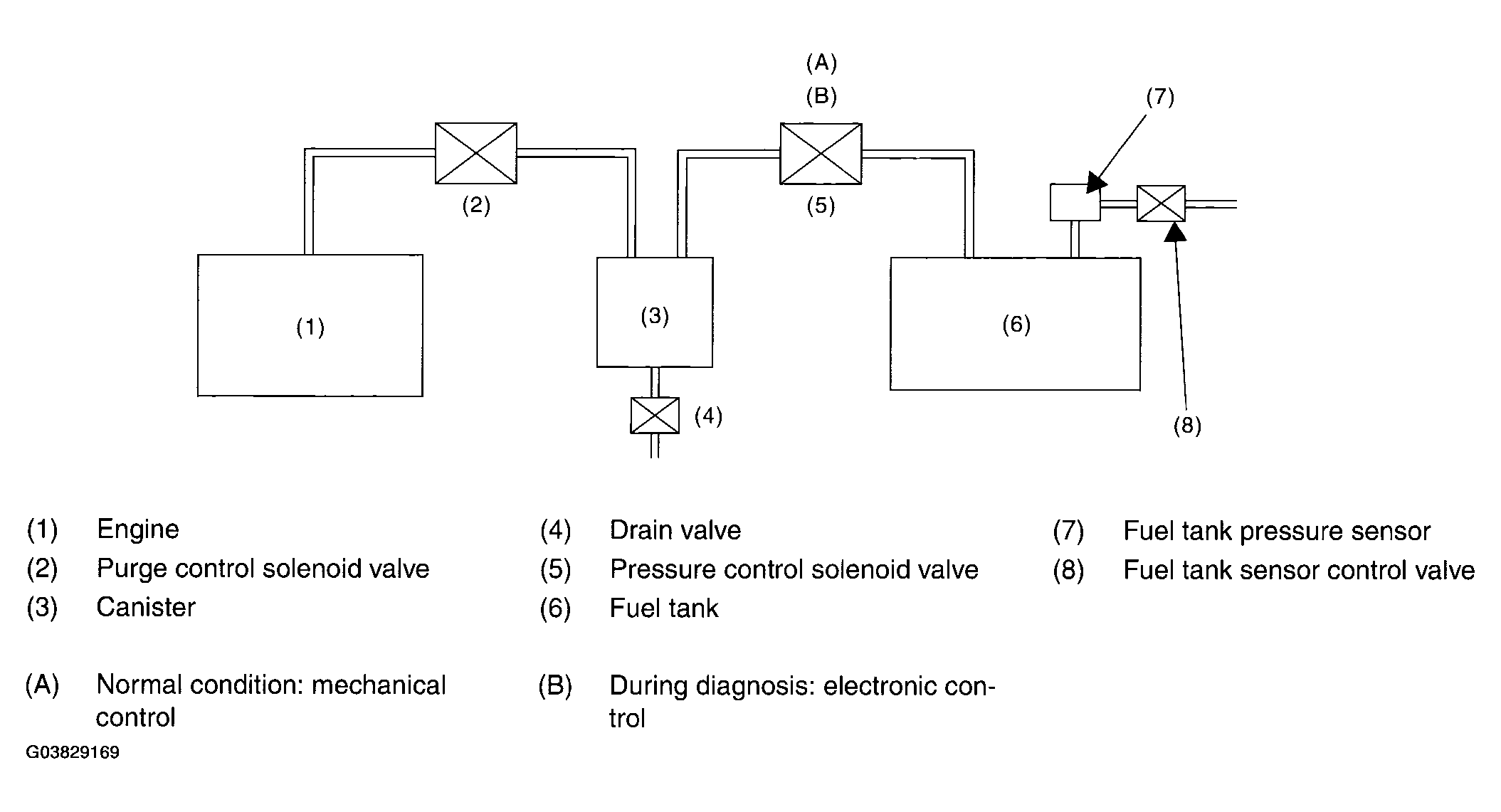

Fig 1: Identifying Purge Control Solenoid Valve Open Fixation Diagnosis Is Performed In Mode Z

Courtesy of SUBARU OF AMERICA, INC.

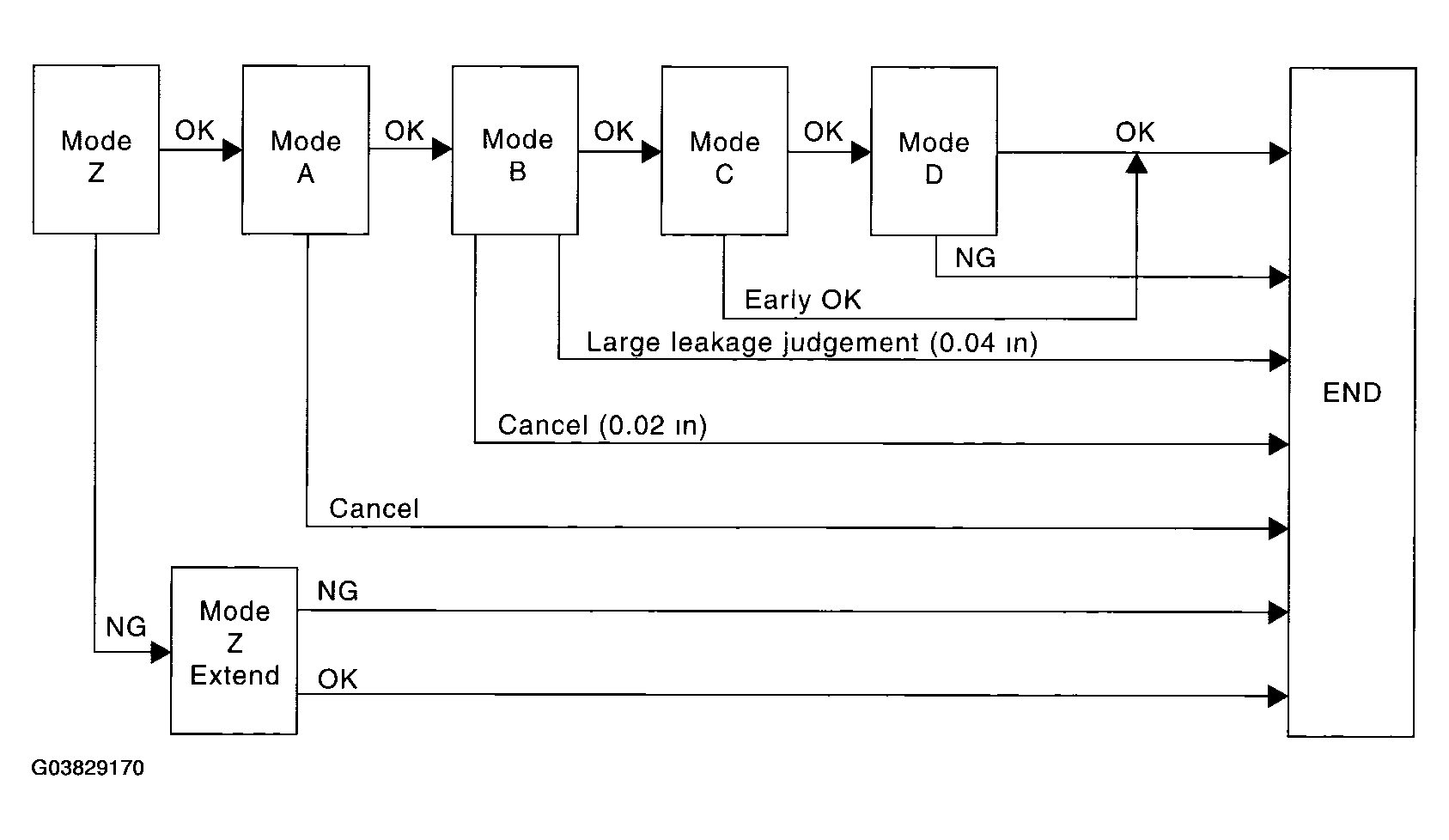

Fig 2: Purge Control Solenoid Valve Diagnosing Function Chart (P0457)

Courtesy of SUBARU OF AMERICA, INC.
