Section 13 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO U5 (PZEV)))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0442 Evaporative Emission Control System Leak Detected (Small Leak)
>>
Component Description
>>
Drain Valve
Drain Valve
WARNING:
This page is about a different variant/trim than selected.
Drain valve controls the ambient air to be introduced to the canister.

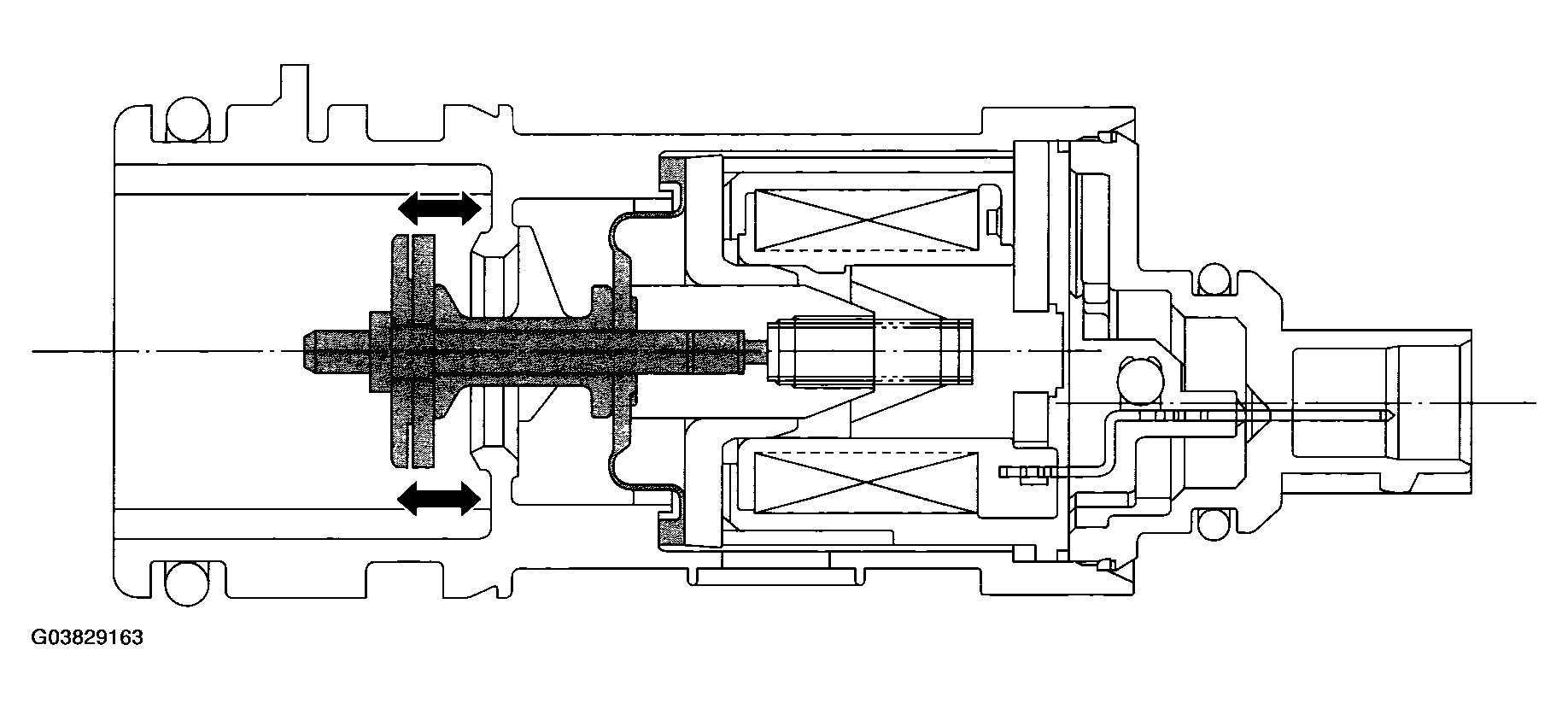

Fig 1: Identifying Drain Valve
Courtesy of SUBARU OF AMERICA, INC.
