Section 13 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO U5 (PZEV)))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0341 Camshaft Position Sensor "A" Circuit Range/Performance (Bank 1 Or Single Sensor)
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

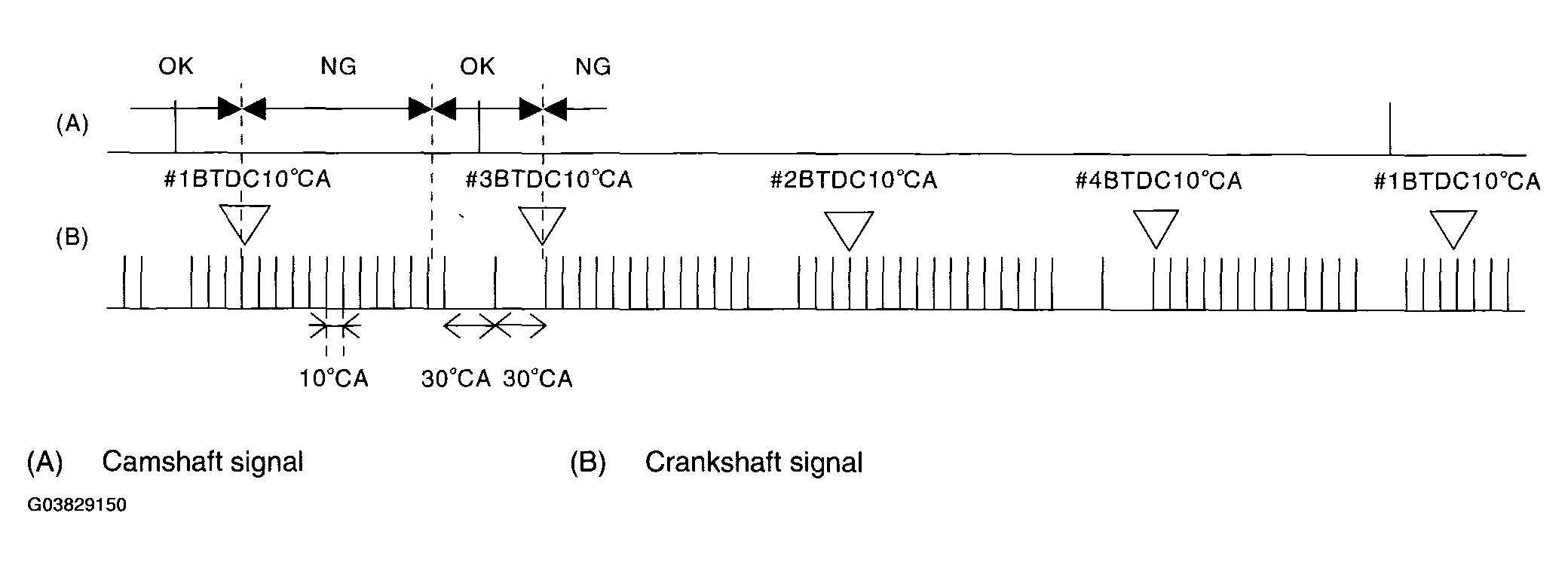

Fig 1: Identifying Crankshaft Signal And Camshaft Signal - DTC P0341
Courtesy of SUBARU OF AMERICA, INC.

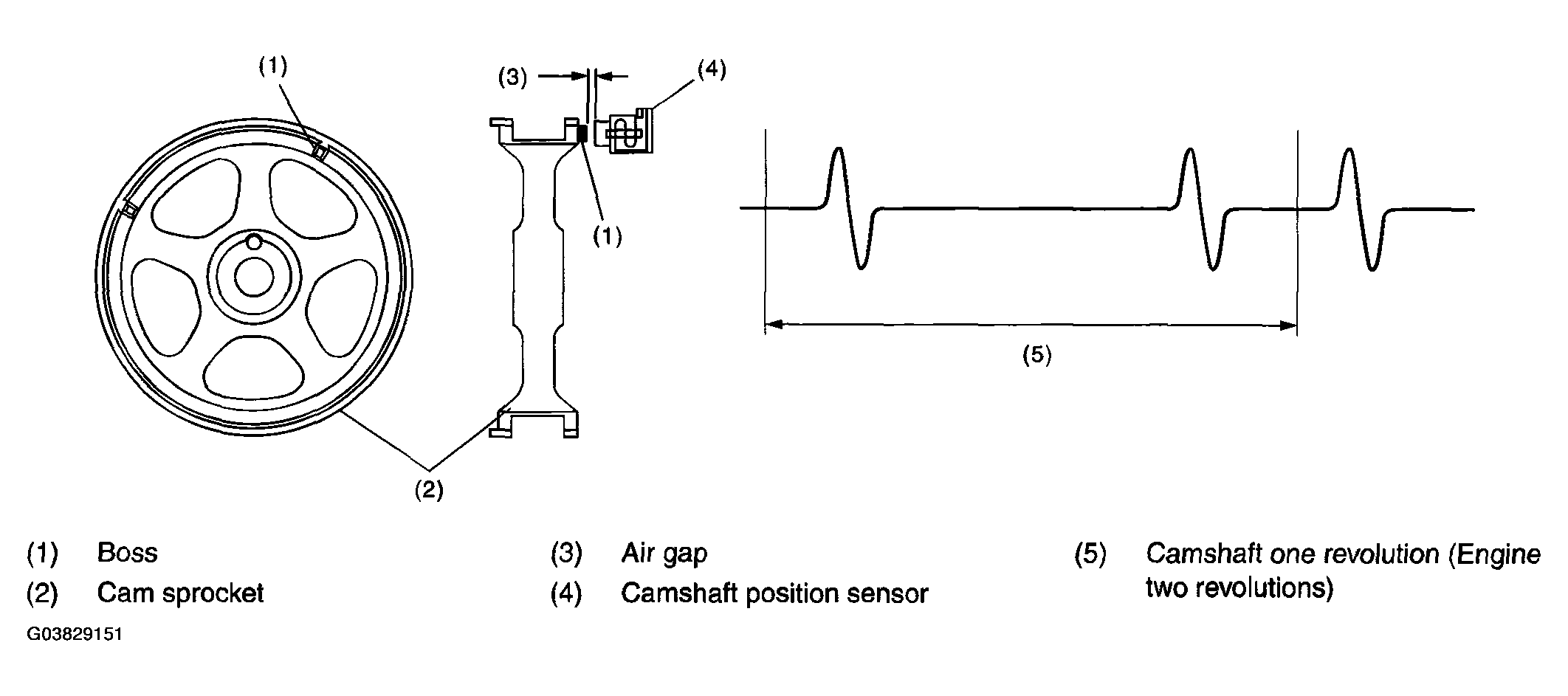

Fig 2: Identifying Camshaft One Revolution - DTC P0341
Courtesy of SUBARU OF AMERICA, INC.
