Diagnostic Method: Notes

WARNING: This page is about a different variant/trim than selected.

When the oxygen sensor output voltage changes from 0.55 V (rich) to 0.25 V (lean), calculate the Min. value of response time regarded as judgment value while the output varies from 0.5 V to 0.3 V.

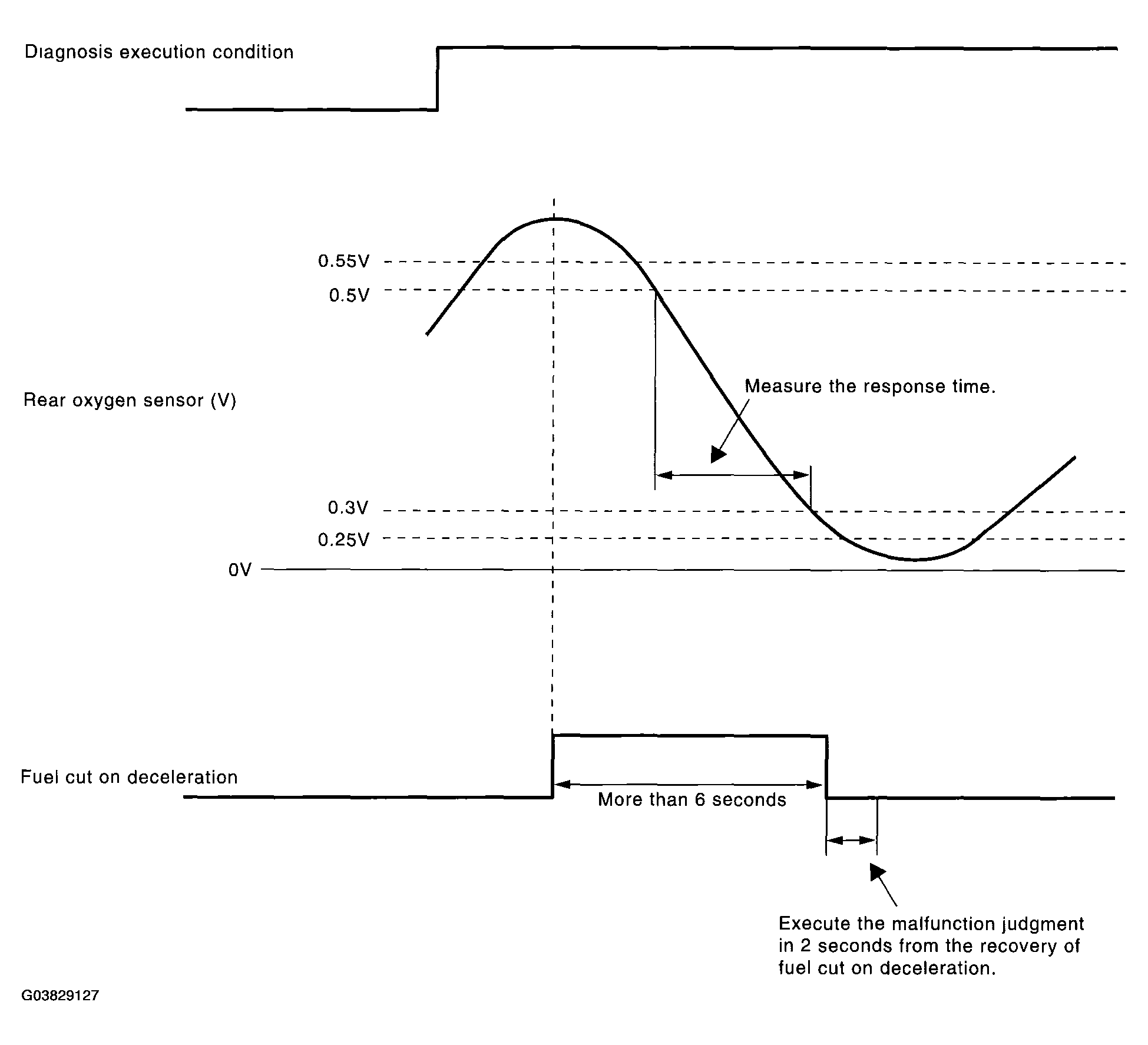

Fig 1: Oxygen Sensor Output Voltage Timing Graph

Courtesy of SUBARU OF AMERICA, INC.

When the oxygen sensor output voltage changes from 0.25 V (lean) to 0.55 V (rich), calculate the Min. value of response time regarded as judgment value while the output varies from 0.3 V to 0.5 V.

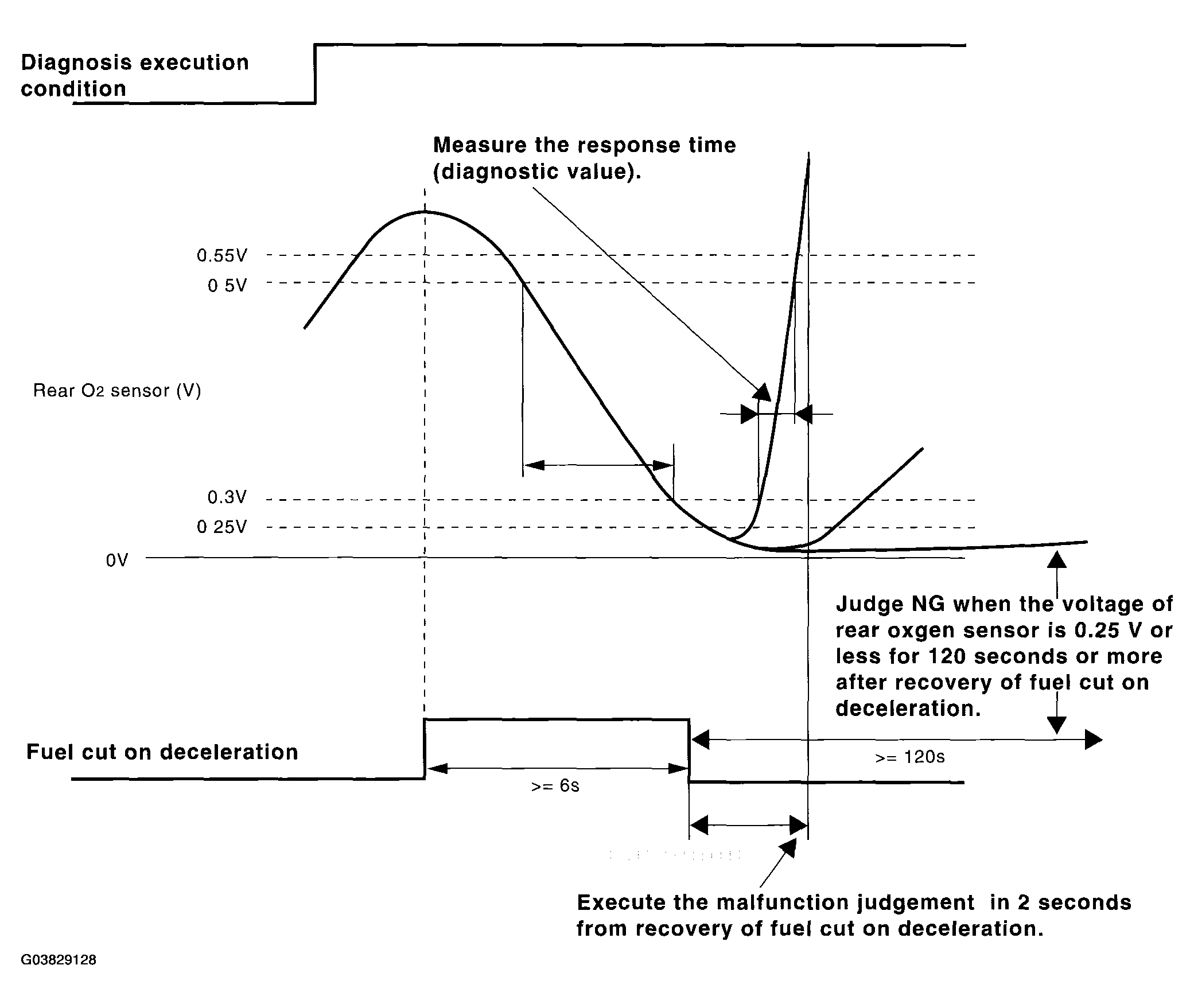

Fig 1: Oxygen Sensor Output Voltage Timing Graph

Courtesy of SUBARU OF AMERICA, INC.
