Engine Ground

WARNING: This page is about a different variant/trim than selected.

Make sure the engine grounding terminal is properly connected to engine.

LH side

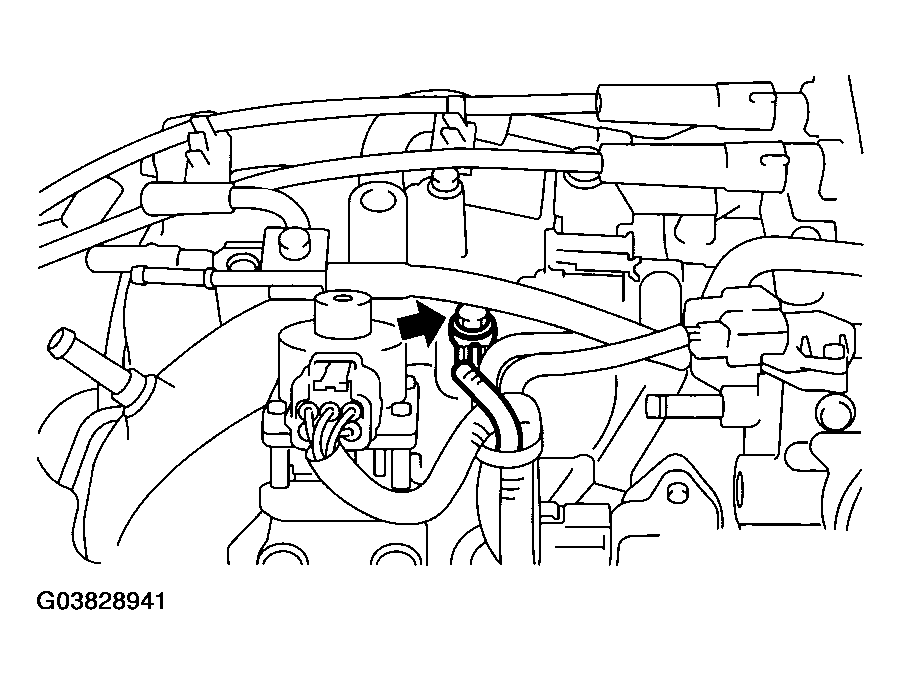

Fig 1: Identifying Engine Grounding Terminal (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
RH side

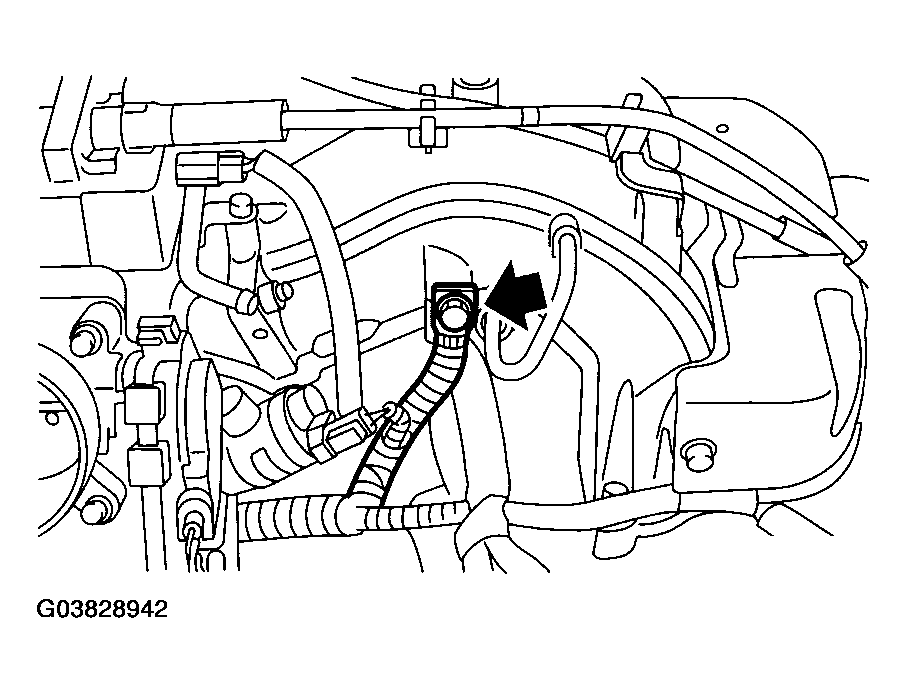

Fig 2: Identifying Engine Grounding Terminal (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
