Section 12 (Engine Controls - Engine (Diagnostics) (H4SO U5 (PZEV))): Electrical Component Location: Location: Engine

WARNING: This page is about a different variant/trim than selected.

Control module

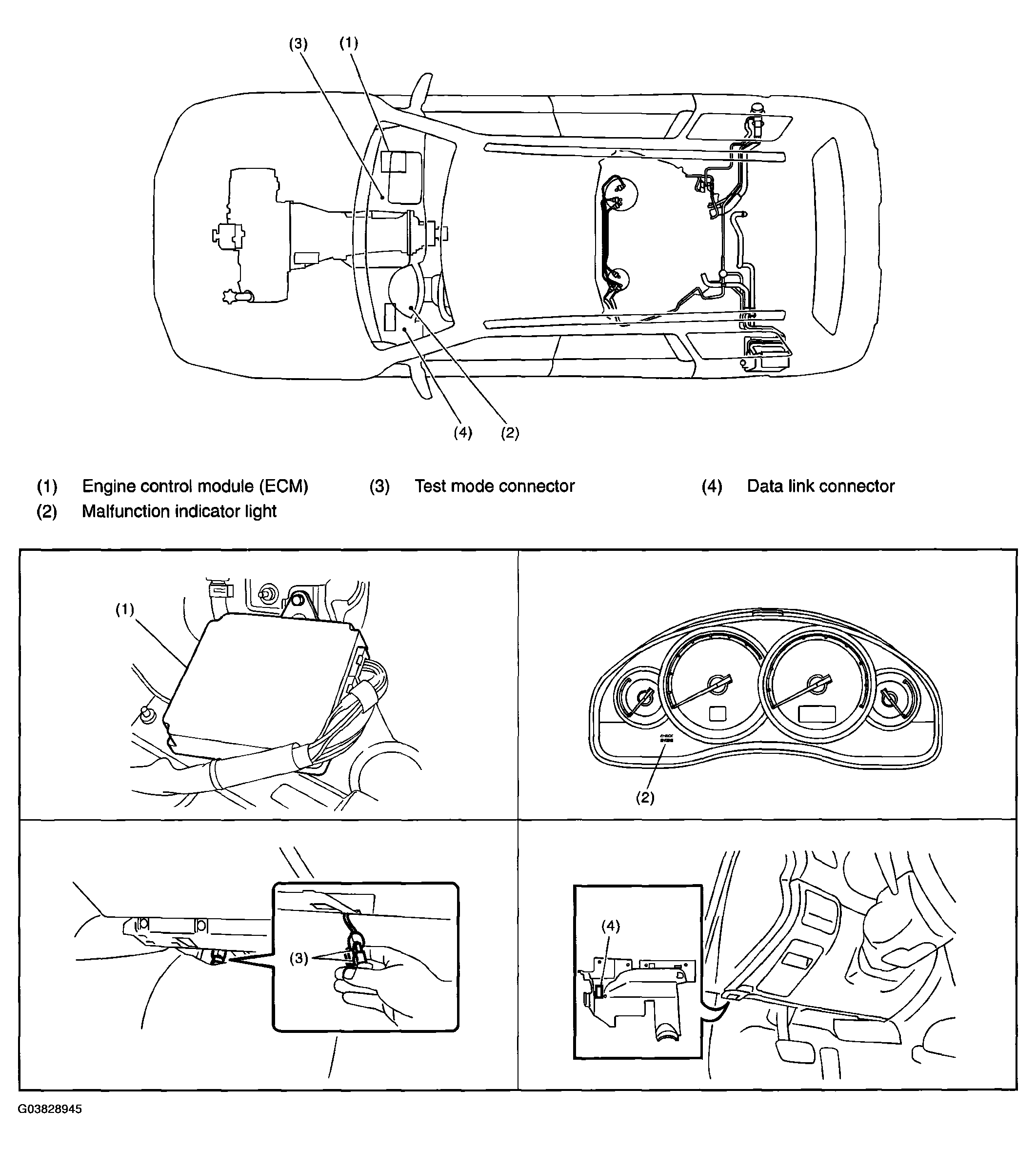

Fig 1: Identifying Engine Control Module And Components
Courtesy of SUBARU OF AMERICA, INC.
Sensor

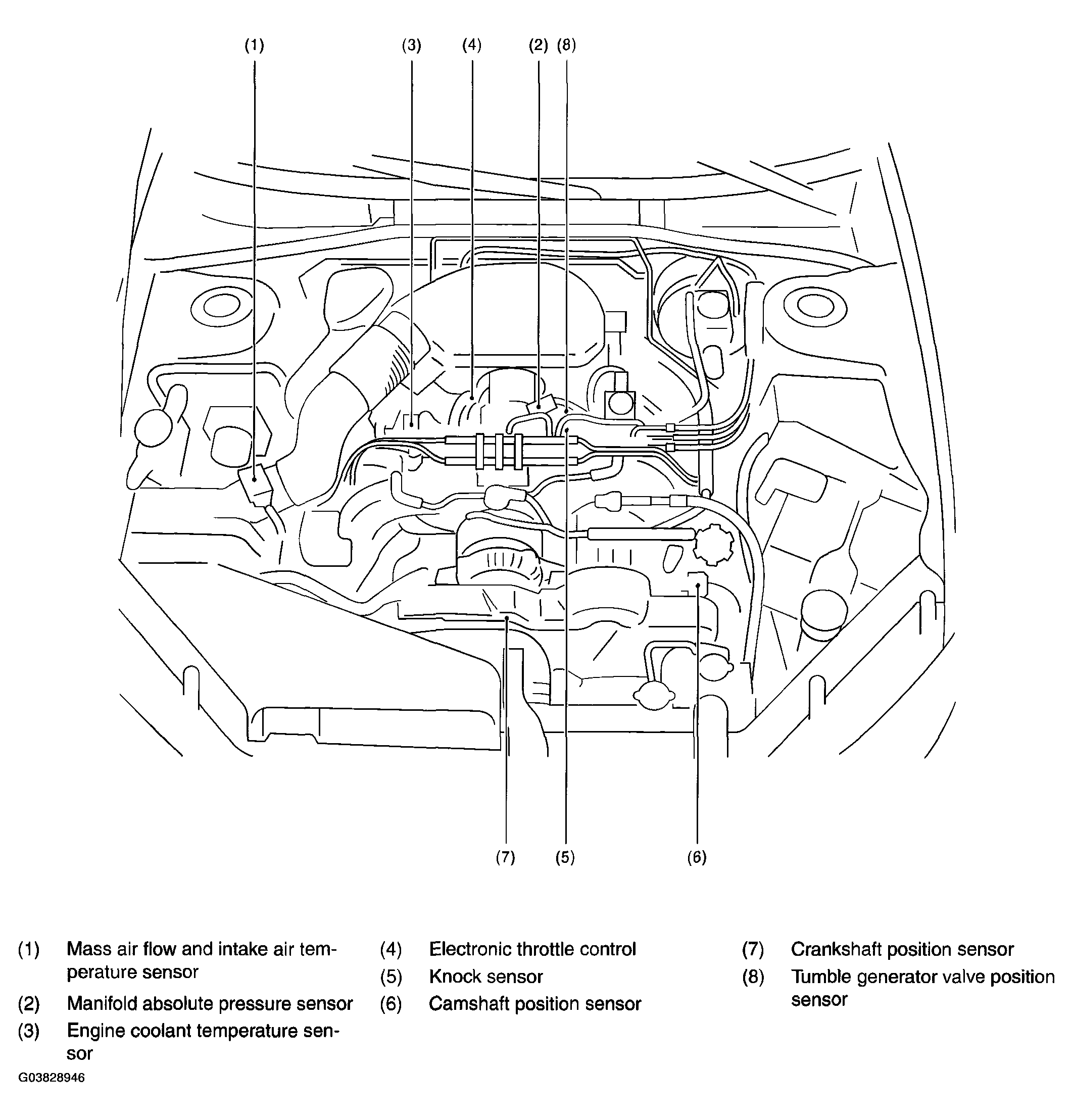

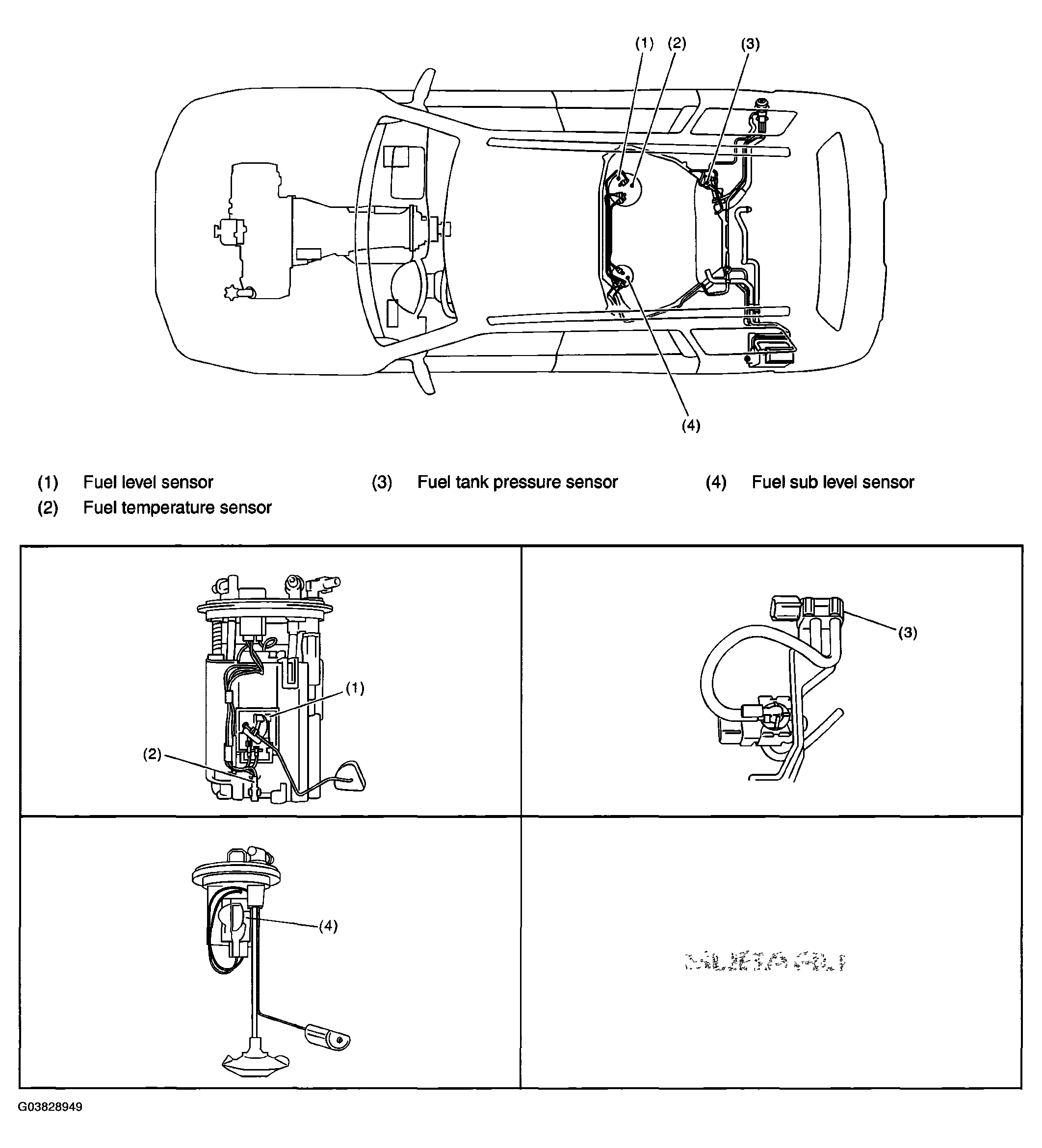

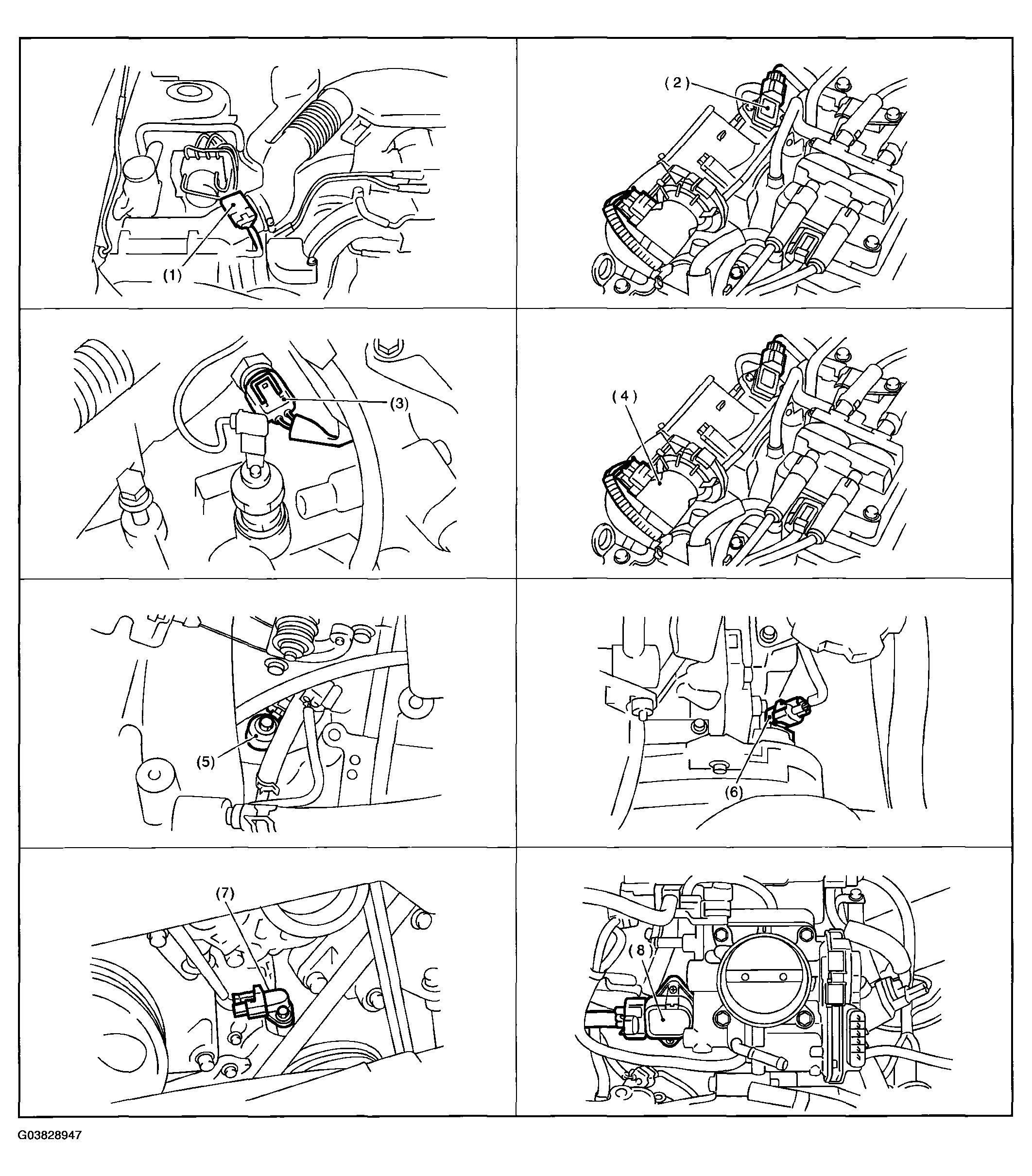

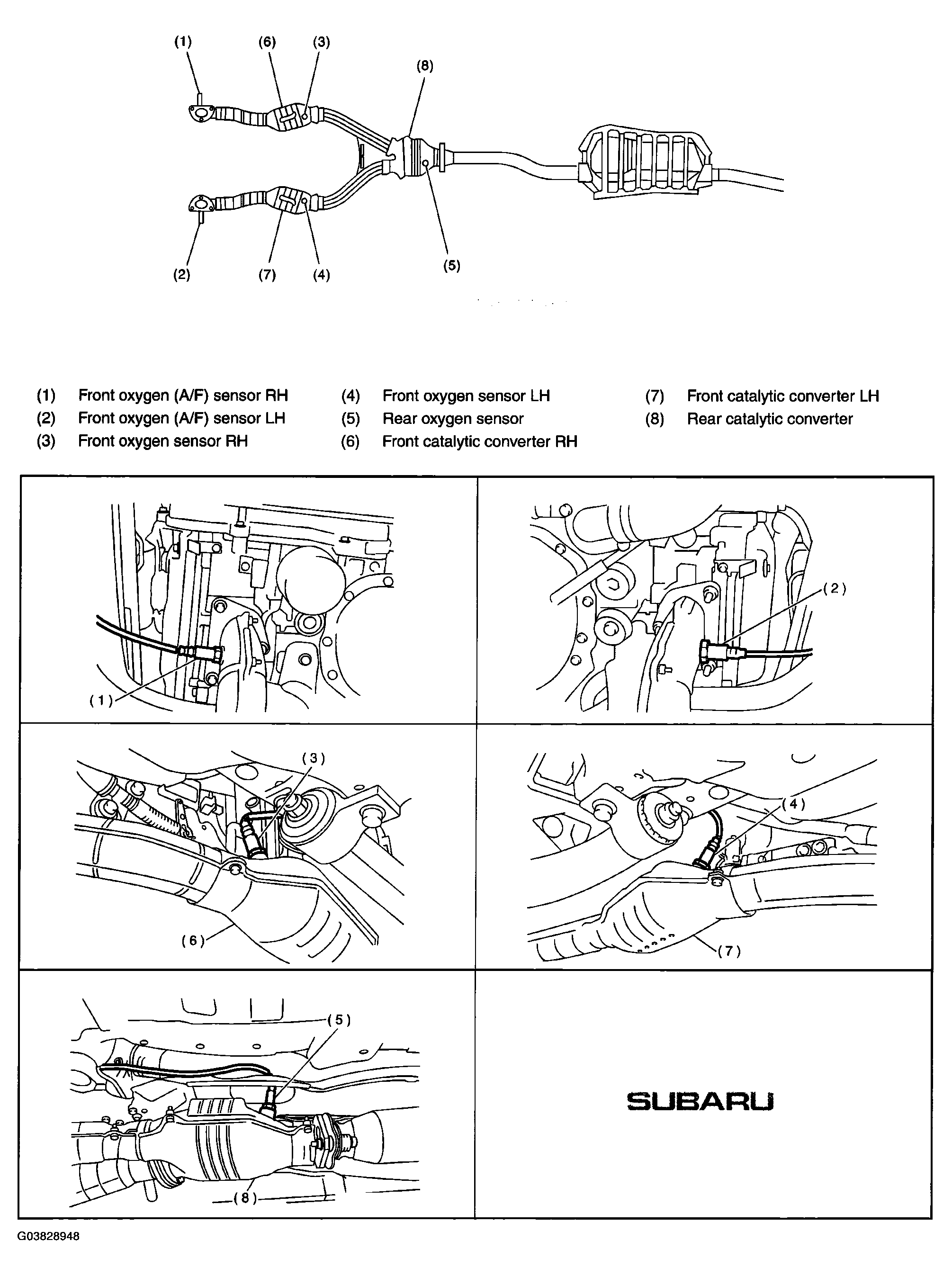

Fig 2: Identifying Engine Sensors And Components (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Engine Sensors And Components (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Engine Sensors And Components (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Engine Sensors And Components (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Solenoid valve, actuator, emission control system parts and ignition system parts

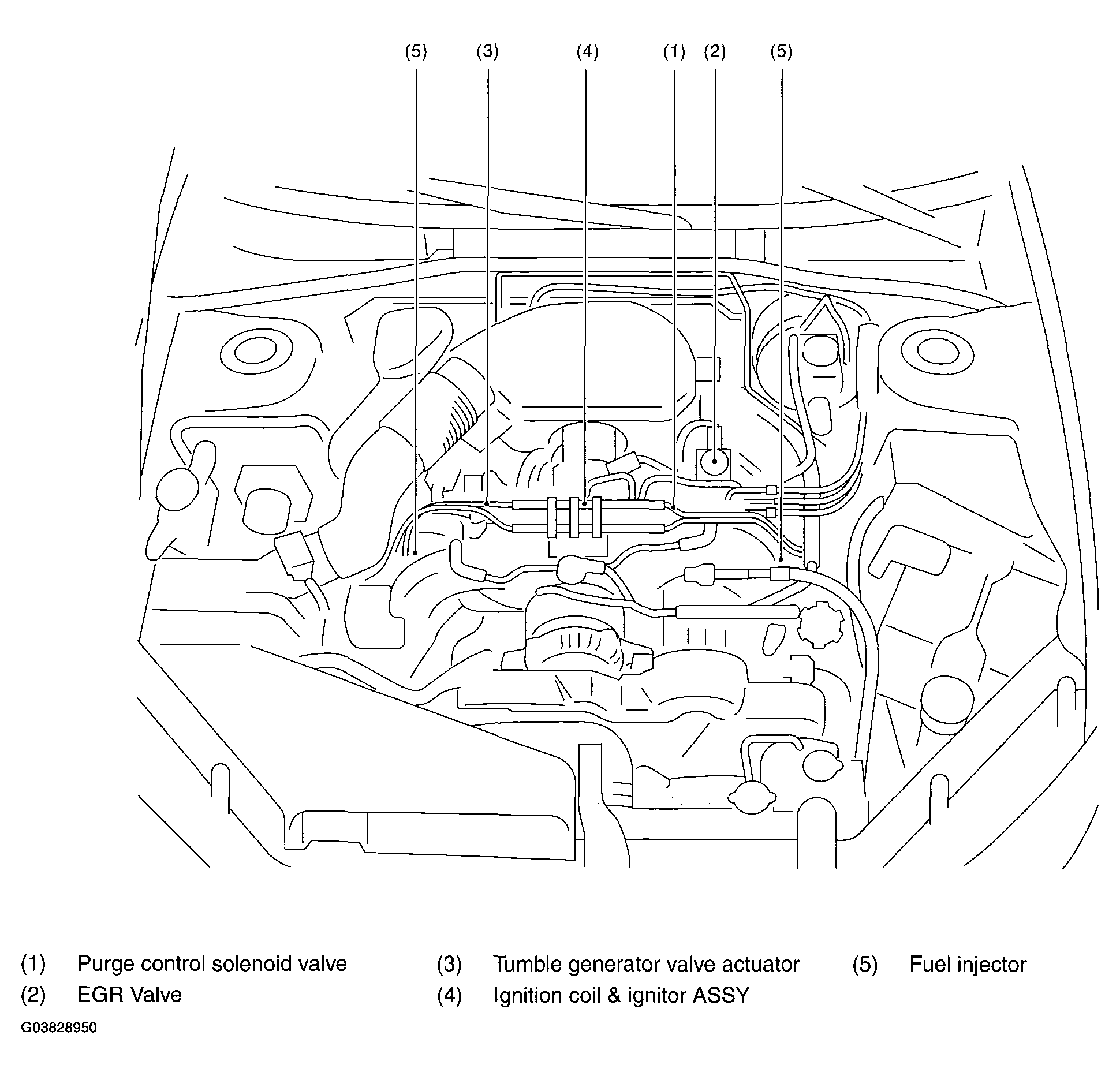

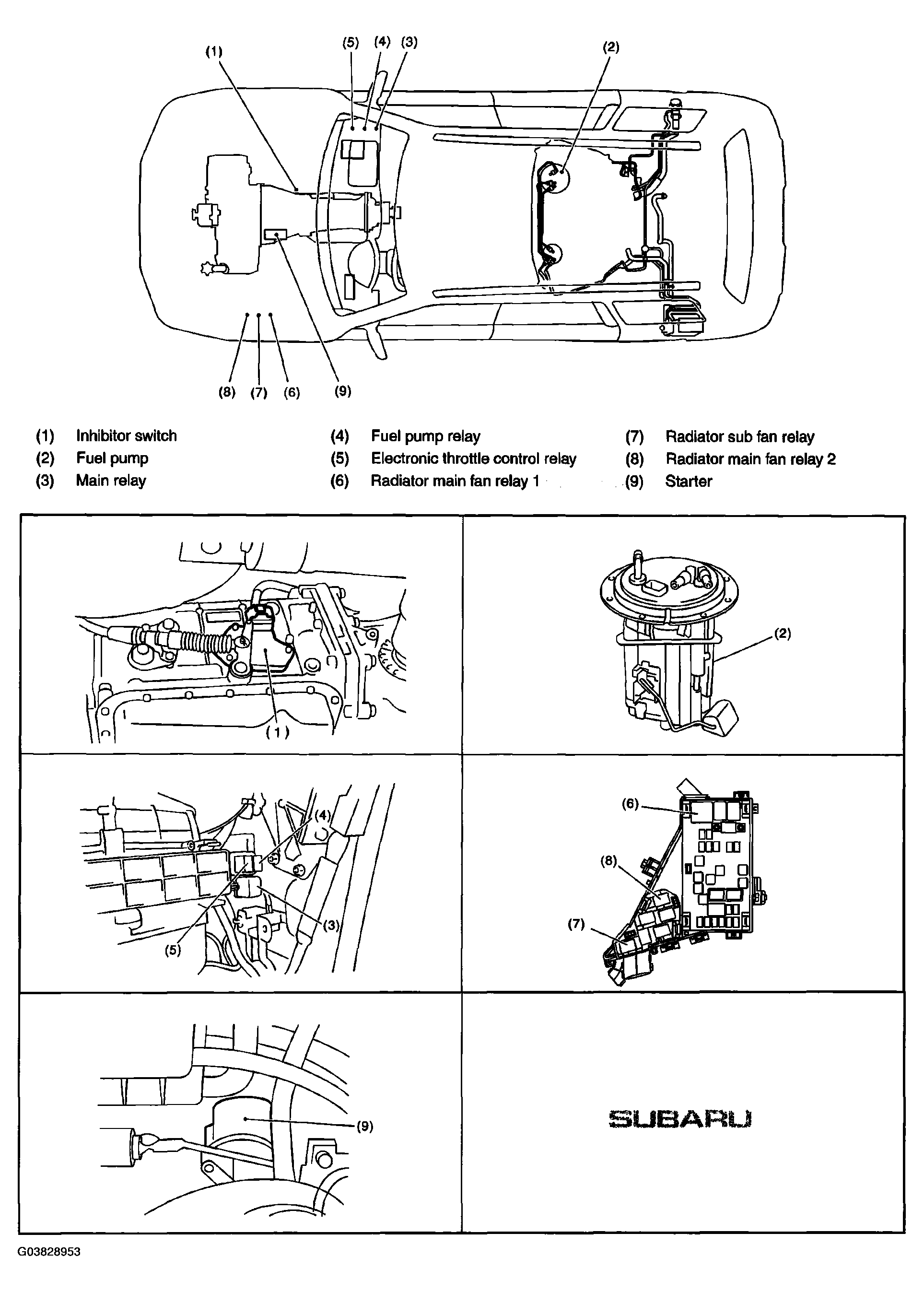

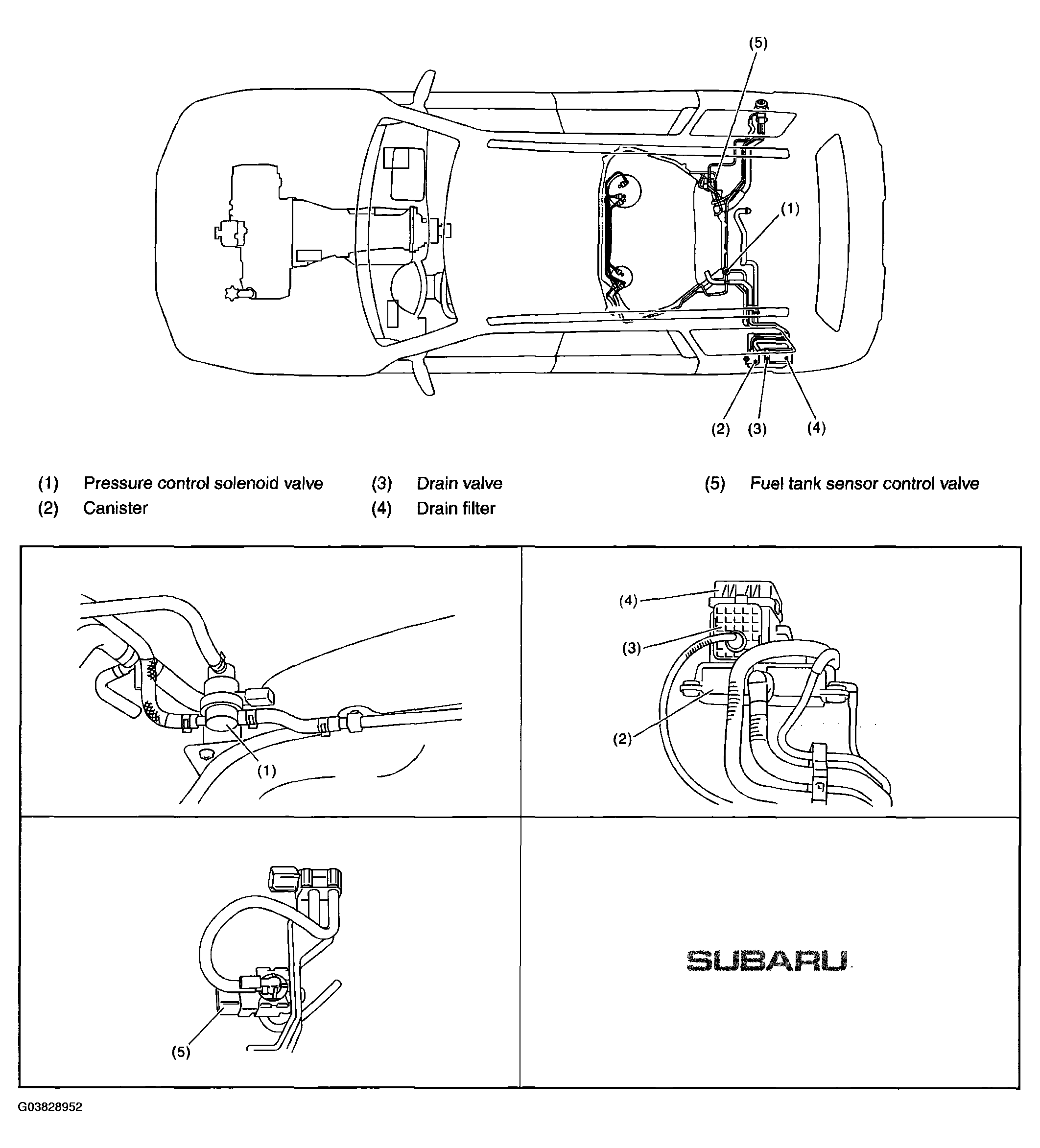

Fig 6: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

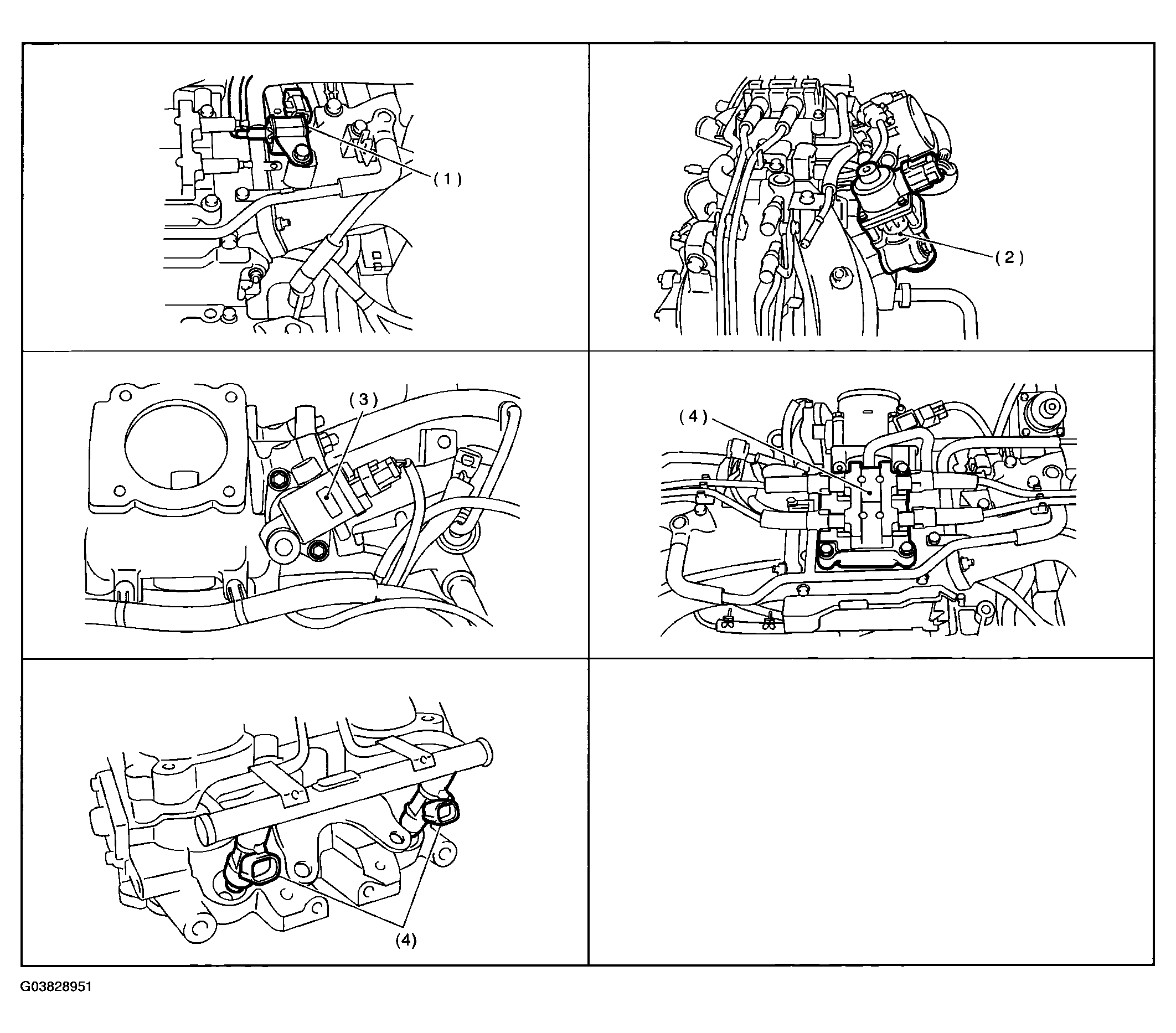

Fig 7: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
