Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

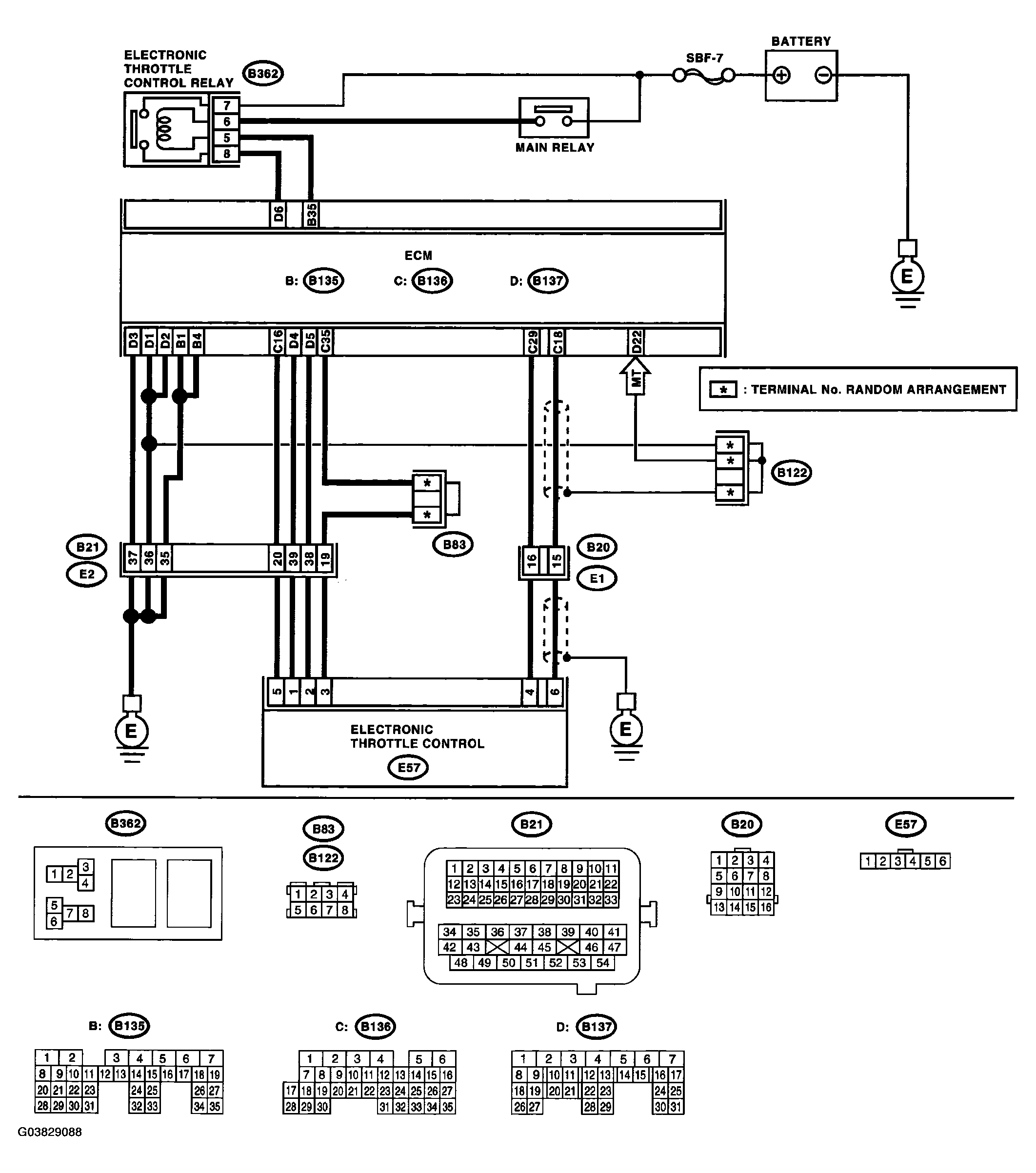

Fig 1: Wiring Diagram - DTC P2102 Throttle Actuator Control Motor Circuit Low
G03829088Courtesy of SUBARU OF AMERICA, INC.
DTC P2102 DIAGNOSTIC PROCEDURE

Step Check Yes No
1. CHECK ELECTRONIC THROTTLE CONTROL RELAY.
  1. Turn the ignition switch to OFF.
  2. Remove the electronic throttle control relay.
  3. Connect the battery to electronic throttle control relay terminal No. 5 and No. 6.
  4. Measure the resistance between electronic throttle control terminals.

    Connector & terminal

    No. 7 - No. 8:

Is the resistance less than 1 Ω? Go to step 2.  Replace the electronic throttle control relay.
2. CHECK POWER TO ELECTRONIC THROTTLE CONTROL RELAY
Measure the voltage between electronic throttle control relay connector and chassis ground.

Connector & terminal

(B362) No. 7 (+) - Chassis ground (-):

(B362) No. 6 (+) - Chassis ground (-):

Is the voltage more than 5 V? Go to step 3.  Repair the open power supply circuit or ground short.
3. CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL.
  1. Disconnect the connector from ECM.
  2. Turn the ignition switch to ON.
  3. Measure the voltage between electronic throttle control relay connector and chassis ground.

    Connector & terminal

    (B362) 5 (+) - Chassis ground (-):

Is the voltage less than 5 V? Go to step 4.  Repair the short of power supply circuit between ECM and electronic throttle control.
4. CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY.
  1. Turn the ignition switch to OFF.
  2. Measure the resistance between electronic throttle control relay connector and chassis ground.

    Connector & terminal

    (B362) No. 5 - Chassis ground:

    (B362) 8 - Chassis ground:

Is the resistance more than 1 MΩ? Go to step 5.  Repair the ground short of harness between ECM and electronic throttle control relay.
5. CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY.
Measure the resistance between ECM connector and electronic throttle control relay connector.

Connector & terminal

(B135) No. 35 - (B362) No. 5:

(B137) No. 6 - (B362) No. 8:

Is the resistance less than 1 Ω? Repair the poor contact in ECM connector. If problem persists, replace the ECM. Repair the open harness between ECM and electronic throttle control relay.
